Dakota Lithium - Parallel Wiring Kit - DLParallelwiringkit

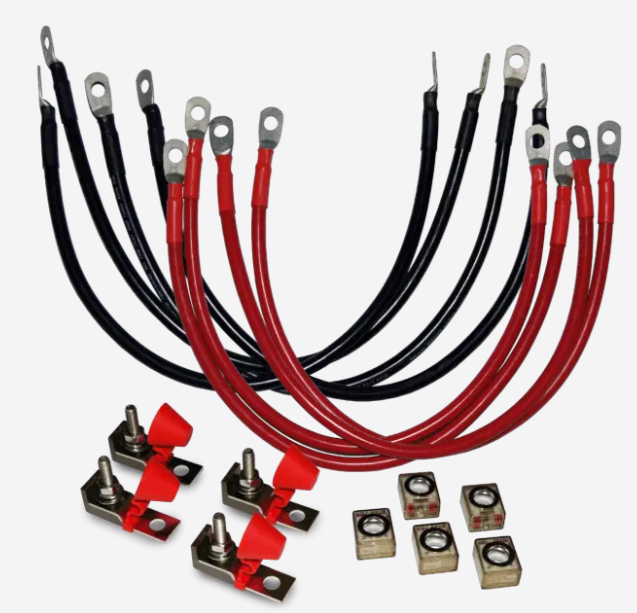

This Parallel Wiring Kit for Dakota Lithium batteries allows you to connect up to four 12-48V batteries in parallel, creating a 12V 400Ah battery system. Designed for solar energy systems and battery banks, this kit includes high-amp rated wiring and fuse protection blocks for added safety. Each battery also comes with its own internal Battery Management System (BMS) circuit board. For maximum safety, add an isolation fuse to each pack when wiring them in a parallel array. This heavy-duty kit is ideal for solar battery banks in RVs, boats, and off-the-grid homes and cabins. For trolling motors, we recommend either wiring batteries in series or purchasing a single battery with the desired voltage. Multiple options are available, including kits with onboard charging for convenience.

Technical Specifications :

• Battery Connections:

  • Ring terminals are compatible with all 12V-48V Dakota Lithium batteries (23Ah of capacity and larger). This allows you to connect multiple batteries in parallel for increased power capacity.

• Wire Gauge:

  • 6 gauge wire ensures efficient power transfer between batteries and is suitable for high current draw.

• Wire Length:

  • 18" per segment, providing enough length for most setups while maintaining flexibility in installation.

• Compatibility:

  • This kit is designed to connect up to four batteries (12V-48V) in parallel. It works with any Dakota Lithium battery with 23Ah capacity or larger, making it a versatile solution for expanding your battery system.

• Made in Minnesota:

  • Manufactured by Connect-Ease, ensuring high-quality and reliable components for your battery setup.

• Fuse Protection Included:

  • Fuse blocks and fuses are included in the kit, each rated for up to 150 Amps and 58 Volts. The fuse blocks protect each battery in the array, adding a layer of safety in case of electrical issues.
  • 4 fuse blocks and fuses are included, along with a spare fuse. The fuses use a standard type, allowing for easy replacement if needed.
  • The internal Battery Management System (BMS) provides an additional layer of protection for each individual battery, but the fuse blocks further protect the system when batteries are connected in parallel.
