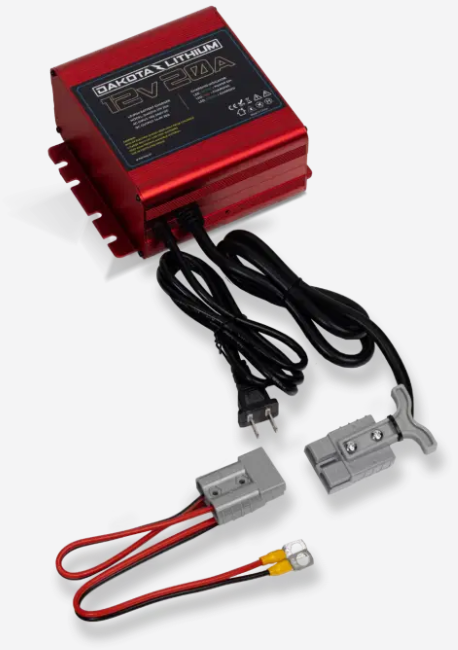

Get your 12V battery fully charged in record time with the Dakota Lithium Onboard Battery Charger. Engineered for use with our lithium iron phosphate batteries, this 20A charger is enclosed in a durable aluminum case to withstand even the toughest conditions. Don't risk damage with incompatible chargers - use the optimized Dakota Lithium Charger for maximum power and longevity.

 Featuring an included Anderson plug and ring terminals for safe and easy charging, this waterproof charger is both convenient and reliable. Simply plug in and remove when finished for hassle-free use.

Technical Specifications :

• Charger Compatibility:

  • Use a LiFePO4-compatible charger for optimal performance and lifespan.
  • Lead-acid chargers may work but can degrade battery performance.

• Specifications:

  • Input: 100-120VAC, 50/60Hz.
  • Output: 14.4V, 20.0A.

• Dimensions:

  • 5.67" x 6.22" x 2.72" (144mm x 158mm x 69mm).

• Terminal Connections:

  • Anderson SB 50 connectors for easy setup.
  • Use ring terminals to connect red to the positive terminal and black to the negative terminal.
  • Indicator Lights:
    • Red: Charging in progress.
    • Green: Battery fully charged.

• Smart BMS Communication:

  • Automatically "wakes up" batteries turned off by a short circuit or excessive amp draw.

• Charging Speed:

  • Charges at 20 amps.
  • Example: A 54Ah battery charges in 2.5 hours (Amp-hours ÷ 20 = charge time).
  • Rapid Charging:
    • Batteries can safely charge in 1 hour at a 1C rate (e.g., 23Ah battery with a 23A charger).
    • Longest lifespan achieved at 0.3C or less (charger amp rating ≤ 1/3 of battery Ah rating).

• Waterproof Rating: IP67.

• Charging Voltage: 14.4V recommended for LiFePO4 batteries.

• Recommended Batteries:

  • 12V 20A charger is ideal for DL+ 12V 60Ah, DL+ 12V 135Ah, and DL+ 12V 320Ah models.
