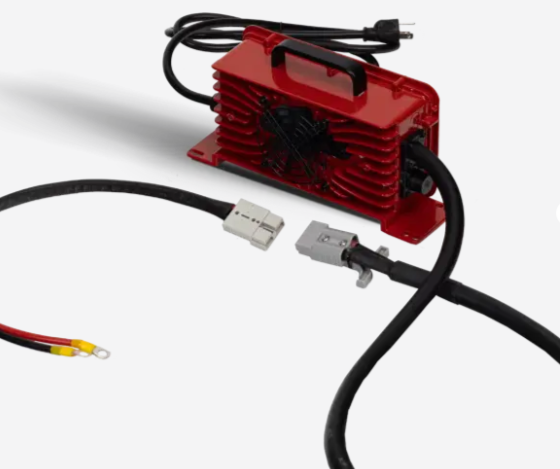

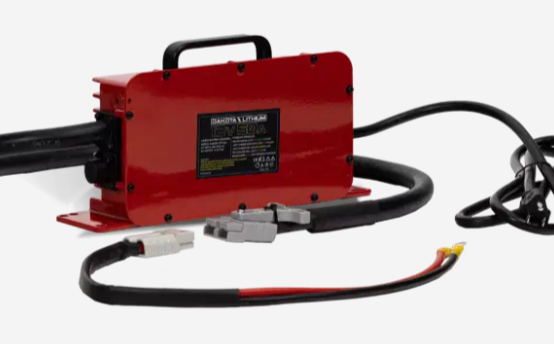

Experience a fast, efficient charge with the Dakota Lithium Onboard Battery Charger. Engineered for large 12V batteries, this waterproof charger ensures a long battery lifespan in the harshest conditions. With a high tensile aluminum case for rapid cooling, it's optimized for use with LiFePO4 batteries, making it perfect for those who need to charge fast and play hard.

With an IP 67 waterproof rating, this ruggedized charger is built to withstand the harshest conditions for a durable lifespan. Its included Anderson plug with ring terminals ensures safe and convenient charging. Say goodbye to reduced battery performance and shortened lifespan with SLA chargers - switch to Dakota Lithium.

Technical Specifications

• Charger Compatibility:

  • Use a LiFePO4-compatible charger for best performance and lifespan.
  • Lead-acid chargers may work but reduce battery performance and lifespan.

• Specifications:

  • Input: 100-240VAC, 50/60Hz.
  • Output: 14.4V, 50A.

• Dimensions:

  • 11.063" x 3.46" x 5.71" (281mm x 88mm x 145mm).

• Terminal Connections:

  • Anderson connectors for easy setup.
  • Install ring terminals (black to negative, red to positive).
  • Indicator Lights:
    • Red: Charging in progress.
    • Green: Battery fully charged.

• Smart BMS Communication:

  • Automatically "wakes up" batteries turned off by a short circuit or excessive amp draw.

• Charging Speed:

  • Charges at 50 amps.
  • Example: A 135Ah battery charges in 2.7 hours (Amp-hours ÷ 50 = charge time).
  • Rapid Charging:
    • Safely charge in 1 hour at a 1C rate (e.g., 8Ah battery with an 8A charger).
    • Optimal lifespan achieved at 0.3C or less (charger amp rating ≤ 1/3 of battery Ah rating).

• Waterproof Rating: IP67.

• Charging Voltage: 14.4V recommended for 12V LiFePO4 batteries.

• Recommended Batteries:

  • Ideal for DL+ 12V 135Ah, DL+ 12V 320Ah, and DL+ 12V 560Ah models.
