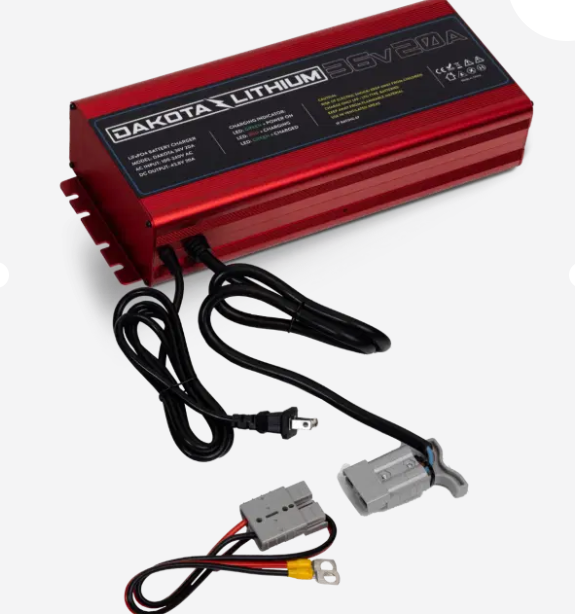

Dakota Lithium - 36V 20A Onbord Battery Charger - 36V20CHARGER

This powerful charger is specifically designed to quickly charge large 36V batteries, while also ensuring a longer battery lifespan. Its weather and water resistant features make it ideal for use in even the harshest conditions. Our Dakota Lithium Chargers are optimized for use with our lithium iron phosphate batteries (LiFePO4 or LFP) and should not be used to charge lead acid or SLA batteries, as it is too powerful. Constructed with a high tensile aluminum case for efficient cooling, this charger has a 20A rating and is perfect for those who need a speedier charge for their active lifestyles. For optimal performance and longevity, all Dakota Lithium batteries should be charged with a LiFePO4 compatible charger, such as this one. Using an SLA charger will decrease the battery's performance and lifespan. The charger comes with an Anderson plug and ring terminals for safe and easy charging. Simply plug in the charger and remove it when the charging is complete.

Technical Specifications :

For 36 Volt Lithium Batteries

• Charger Recommendation:

  • Use a LiFePO4-compatible charger for optimal performance and lifespan.
  • 12V chargers for lead acid batteries may work but will decrease performance and lifespan.

• Charger Rating:

  • Output: 43V, 20A

• Dimensions:

  • 13.86" x 5.71" x 2.83" (352mm x 145mm x 72mm)

• Terminal Connections:

  • Use Anderson connections for easy connection:
    • Install ring terminals using the bolts on your battery terminals.
    • Bolt black to the black terminal and red to the red terminal.
  • Connect the charger via the Anderson plug when charging.
  • Indicator lights:
    • Red light: Charging.
    • Green light: Fully charged.

• Smart BMS Communication:

  • The charger can "wake up" a Dakota Lithium BMS after:
    • A short circuit.
    • Excessive amp draw.
  • Simply connect the charger to restart the battery.

• Charging Speed:

  • Charges at 20A.
  • Example: A 36V 110Ah battery charges in 5.5 hours.

• Faster Charging:

  • Standard charging time (3-10 hours) ensures longer battery life.
  • Rapid charging:
    • Safe to charge in 1 hour (rate: 1C).
    • Example: Use an 8A charger for an 8Ah battery.
    • Note: Faster charging may reduce lifespan over time.
  • Recommended charging speed for longevity: 0.3C or less
    • Use a charger with an amp rating 1/3 or less of the battery’s amp-hour rating.

• Waterproof Rating:

  • IP67

• Recommended Charging Voltage:

  • Charge 36V Dakota Lithium batteries at 43V.
  • This charger operates at 43V.

• Recommendation:

  • The 36V 20A charger is ideal for 36V 60Ah and 36V 110Ah batteries.
