Dakota Lithium - 48V 8A Battery Charger - 48V8ACHARGER

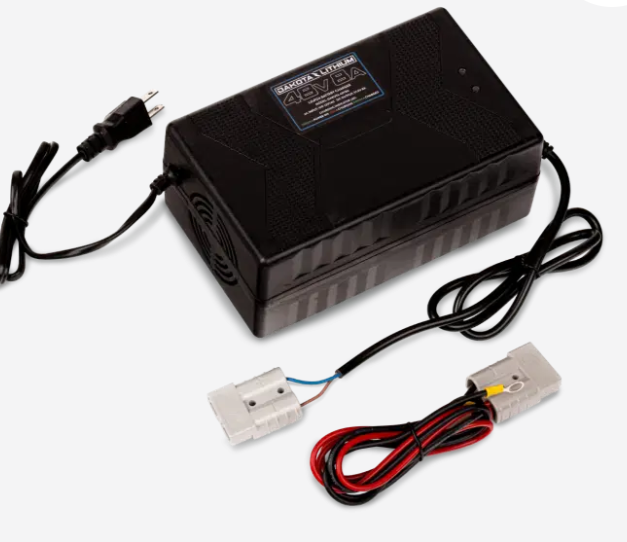

This 8A charger is designed specifically for the 48V lithium batteries, including the popular LiFePO4 or LFP types. It will efficiently charge any lithium battery at a rate of 8A, making it a perfect match for Dakota Lithium's 48V 100Ah battery. It's important to note that this charger is not suitable for lead acid or SLA batteries, as it is too powerful and may cause damage. Its design strikes a balance between lightweight and durability, and can fully charge a Dakota Lithium 48V 100Ah battery in less than 12 hours. For optimal performance and battery lifespan, always use a LiFePO4 compatible charger like this one for charging Dakota Lithium batteries. The included Anderson plug, equipped with ring terminals, ensures safe and easy charging - simply plug in and remove when done. This charger is also compatible with all Connect-Ease trolling motor wiring kits for added convenience.Z

Technical Specifications :

For 48 Volt Lithium Batteries

• Charger Recommendation:

  • Use a LiFePO4-compatible charger for optimal performance and lifespan.
  • 48V chargers for lead acid batteries may work but will decrease performance and lifespan.

• Charger Rating:

  • Input: 100-240 volts, 50/60 Hz
  • Output: 57.6 volts, 8.0 amps

• Terminal Connections:

  • Use Anderson SB 50 connections for easy connection:
    • Install ring terminals using the bolts on your battery terminals.
    • Bolt black to the black terminal and red to the red terminal.
  • Connect the charger via the Anderson plug when charging.
  • Indicator lights:
    • Red light: Charging.
    • Green light: Fully charged.

• Smart BMS Communication:

  • The charger can "wake up" a Dakota Lithium BMS after:
    • A short circuit.
    • Excessive amp draw.
  • Simply connect the charger to restart the battery.

• Charging Speed:

  • Charges at 8 amps.
  • To estimate charging time:
    • Divide the battery's amp-hour (Ah) rating by 8.
    • Example: A 48V 12Ah battery charges in 1.5 hours.

• Faster Charging:

  • Standard charging time (3-10 hours) ensures longer battery life.
  • Rapid charging:
    • Safe to charge in 1 hour (rate: 1C).
    • Example: Use an 8A charger for an 8Ah battery.
    • Note: Faster charging may reduce lifespan over time.
  • Recommended charging speed for longevity: 0.3C or less
    • Use a charger with an amp rating 1/3 or less of the battery’s amp-hour rating.

• Recommended Charging Voltage:

  • Charge 48V Dakota Lithium batteries at 57.6 volts.
  • This charger operates at 57.6 volts.
