Dakota Lithium - Battery Monitor & Integration Kit With Bluetooth - 12v300wdashboard

This kit includes a battery monitor and solar panels integration for 12V Dakota Lithium batteries. With the Dakota Lithium Dashboard app, you can easily monitor power levels, voltage, and performance. The battery monitor has a built-in 300 watt solar charge controller, making it compatible with any 12V lithium battery, optimized for lithium iron phosphate (LiFePO4). Complete with all necessary hardware and a wiring kit, this solar integration kit allows you to charge your batteries efficiently and increase the energy available for your use, whether on a boat, yacht, van, or RV. To ensure stable and optimal charging, a solar controller is recommended when using solar energy.

Technical Specifications :

Solar Charge Controller & DL Dashboard System

• Battery Monitor Included:

  • Provides real-time data on battery state of charge, voltage, power consumption, charging efficiency, and more through the Dakota Lithium Dashboard App for Apple & Android devices.

• Solar Charge Controller Included:

  • Nominal Power: 300 watts
  • Peak Efficiency: 98%
  • Rated Charge Current: 15 amps max (supports up to 300 watts of solar panels)
  • Max Power Input / Output:
    • Max Solar Panel Input Voltage: 25V
    • Optimized for Charging Lithium Batteries with Output of 14.4V

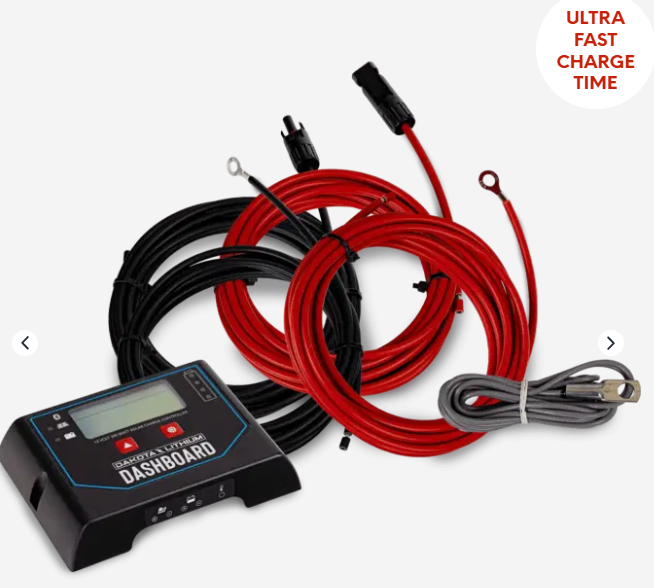

• Wiring Kit Included:

  • Includes an integration kit to connect your batteries or solar panels to the DL Dashboard, including a parallel wiring kit for connecting multiple solar panels.

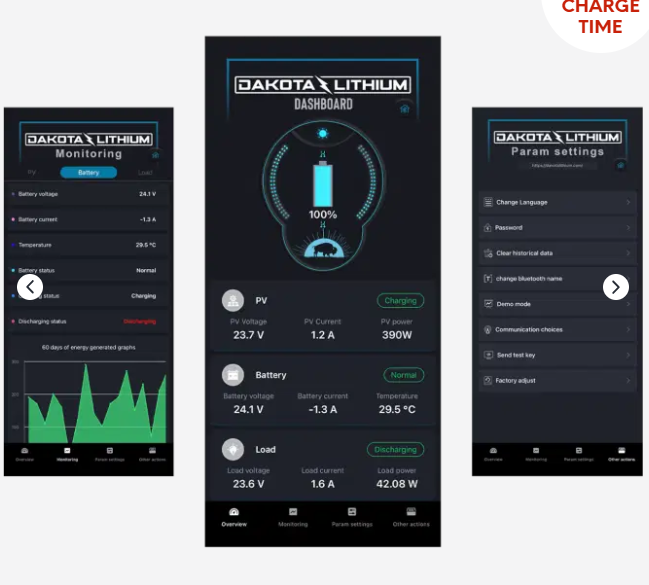

• DL Dashboard Mobile App Included:

  • Download the DL Dashboard App and connect via Bluetooth to monitor your batteries and solar panels in real time.

• What is a Solar Charge Controller?

  • A device that converts the energy produced by solar panels into a stable voltage and current for easy charging of your batteries.

• Optimized for Solar Energy:

  • Compatible with any solar panel, but for higher efficiency, we recommend pairing it with a battery and solar charge controller.

• How Does This Fit into My Off-Grid, Home Power System?

  • The solar charge controller ensures efficient battery charging from solar panels. To use the energy, you'll need an inverter, which allows you to convert DC battery power into AC wall power for home or off-grid use.

• System Voltage:

  • 12 Volts
