Dakota Lithium - USB, Voltmeter and Terminal Adapter Kit - dlusbvm

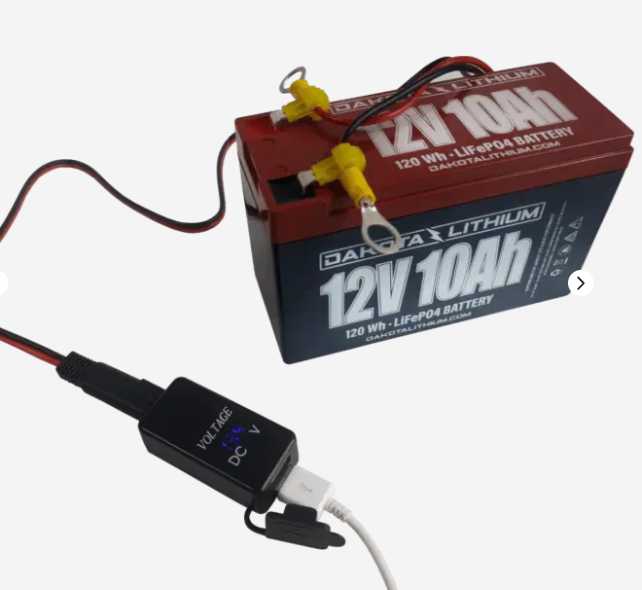

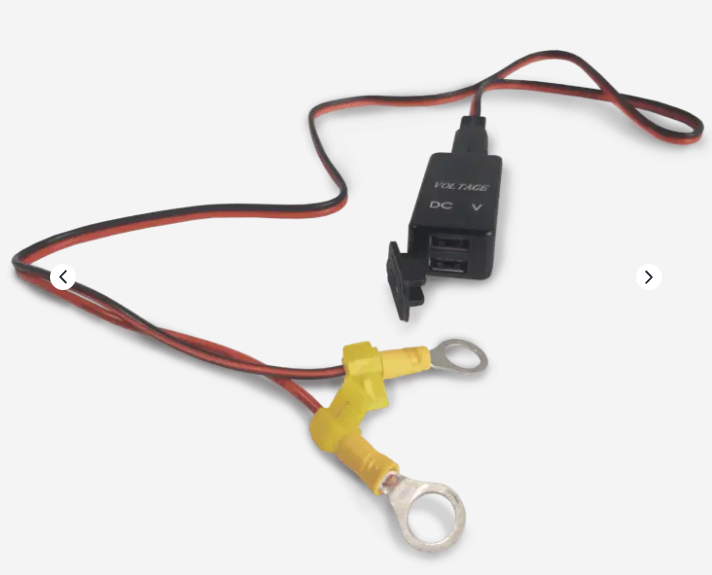

This Dakota Lithium dlusbvm kit offers USB charging ports, a volt meter, and a terminal adapter for convenient on-the-go charging of various electronics using a 12V battery. It allows for simultaneous charging and voltage monitoring, as well as adapting F2 terminals to universal ring terminals or an SAE socket. You can also run multiple devices off of a single battery. The convenient and versatile kit is assembled upon order, with a lead time of 1-3 days.

Technical Specifications :

Connections & Features

• Dual USB Ports:

  • Provides two USB charging ports for charging electronic devices such as cell phones, cameras, or other small electronics.
  • Allows charging of two devices simultaneously while also running your main electronics.

• F2 Spade Terminals & Ring Terminals:

  • F2 Spade Socket: For 7Ah, 10Ah, or 18Ah Dakota Lithium batteries.

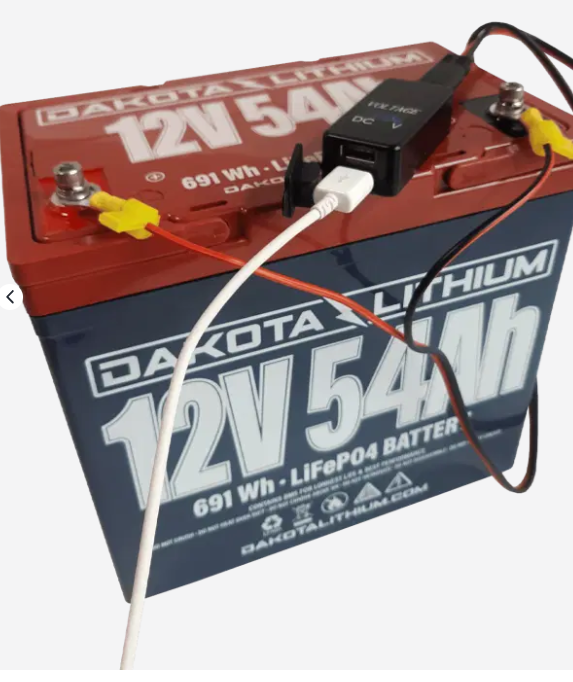

  • Ring Terminals: For connecting to 23Ah, 54Ah, or 100Ah Dakota Lithium batteries.

• SAE Socket Plug:

  • Remove the voltmeter to access the SAE socket, which can be used for various applications such as charging or powering equipment.

• Voltmeter with Real-Time Monitoring:

  • Includes a voltmeter to monitor battery charge levels in real time.

---

Installation

• Quick Setup:

  • Easily attach the voltmeter and connect to the battery using F2 spade socket terminals for smaller batteries or ring terminals for larger ones.

• F2 Spade Socket to Ring Terminal Adapter:

  • This adapter allows compatibility between different battery sizes, making it easy to connect and use with Dakota Lithium batteries.

---

Device Powering & Charging

• Maximum 10 Amps:

  • The wiring and system can handle up to 10 amps, making it optimal for small electronics, such as:
    • Fish finders
    • Household electronics
    • Cameras
    • Cell phones
  • Note: Not suitable for electric motors or high-power devices.

• Multiple Devices:

  • Charge your personal electronics while running other devices off a single battery. You can monitor battery status and still keep everything running.
