#PanelType-SingleEngineDuplexConnectorSwitchPanel
Yamaha Single Engine Switch Panel - Duplex Connector | 6X3-8257B-01-00
The Yamaha Single Engine Switch Panel with Duplex Connector 6X3-8257B-01-00 is designed for compatible single-engine Yamaha rigging that uses the duplex connector style. It provides a clean panel-mounted switch solution for ignition and helm control functions. This panel is a practical replacement when the original switch panel is worn or when a new dash needs a Yamaha-matched single-engine setup.
Key Features
-
Single Engine Duplex Connector Panel: Designed for compatible Yamaha single-engine setups using a duplex connector layout.
-
Harness and Instrument Connections: Includes multi-connector connections to the main harness and instrument harness.
-
Engine Stop Lanyard Switch: Includes engine stop lanyard switch functionality for operator safety.
-
Bullet Connector Support: Uses bullet connectors for a generic engine stop lanyard switch connection.
-
OEM Yamaha Panel Fit: Helps restore clean switch function in compatible Yamaha helm installations.
Installation Note
Installation should be performed with the battery disconnected and the wiring matched to the correct Yamaha conventional rigging configuration. Confirm the connector style, existing panel part number, and engine setup before installation.
Replacement Parts
FAQs
Q1: What is this Yamaha switch panel used for?
A1: It is used as a single-engine switch panel for duplex connector Yamaha rigging applications.
Q2: How should I confirm this is the correct Yamaha part?
A2: Match the part number to your current switch, panel, or Yamaha rigging reference, and confirm your engine count, station setup, and connector style before ordering.
Q3: Can I install this switch panel myself?
A3: Marine electrical work should be done with battery power disconnected and wiring matched correctly. If you are not sure about the rigging layout, have a qualified marine technician install or inspect it.
Q4: Are related replacement parts available separately?
A4: Yes. Common related service parts are listed in the Replacement Parts section when available.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
#PanelType-SingleEngineStandardConnectorSwitchPanel
Yamaha Single Engine Switch Panel - Standard Connector | 64D-82570-05-00
The Yamaha Single Engine Switch Panel with Standard Connector 64D-82570-05-00 is designed for compatible single-engine Yamaha rigging using the standard connector style. It provides a clean dash-mounted panel for key switch and helm control functions. This panel is a reliable replacement option when the existing Yamaha switch panel is worn, damaged, or due for an OEM-style refresh.
Key Features
-
Single Engine Standard Connector Panel: Designed for compatible Yamaha single-engine setups using a standard connector layout.
-
Harness and Instrument Connections: Includes multi-connector connections to the main harness and instrument harness.
-
Engine Stop Lanyard Switch: Includes engine stop lanyard switch functionality for operator safety.
-
Bullet Connector Support: Uses bullet connectors for a generic engine stop lanyard switch connection.
-
OEM Yamaha Panel Design: Helps maintain a clean factory-style switch panel at the helm.
Installation Note
Installation should be performed with the battery disconnected and the wiring matched to the correct Yamaha conventional rigging configuration. Confirm the connector style, existing panel part number, and engine setup before installation.
Replacement Parts
FAQs
Q1: What is this Yamaha switch panel used for?
A1: It is used as a single-engine switch panel for standard connector Yamaha rigging applications.
Q2: How should I confirm this is the correct Yamaha part?
A2: Match the part number to your current switch, panel, or Yamaha rigging reference, and confirm your engine count, station setup, and connector style before ordering.
Q3: Can I install this switch panel myself?
A3: Marine electrical work should be done with battery power disconnected and wiring matched correctly. If you are not sure about the rigging layout, have a qualified marine technician install or inspect it.
Q4: Are related replacement parts available separately?
A4: Yes. Common related service parts are listed in the Replacement Parts section when available.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
#PanelType-ConventionalTwinEngineSwitchPanel

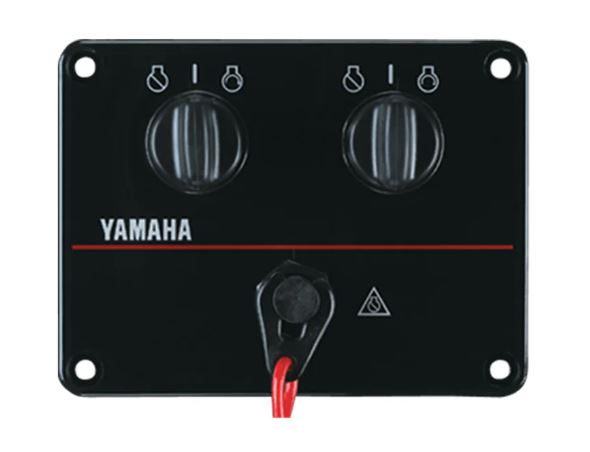

Yamaha Twin Engine Key Switch Panel | 6K1-82570-13-00
The Yamaha Twin Engine Key Switch Panel 6K1-82570-13-00 is designed for twin outboard helm setups using conventional Yamaha rigging. It gives each engine its own key switch location in a clean panel layout, helping make start-up and shut-down routines easier to manage at the dash. This is a practical replacement choice when an older twin-engine switch panel is worn, damaged, or no longer giving the operator the clean control feel expected from Yamaha rigging.
Key Features
-
Twin Engine Yamaha Key Switch Panel: Supports paired Yamaha outboards from one clean helm-mounted ignition panel.
-
Conventional Rigging Only: Intended for Yamaha conventional rigging applications, not Command Link Plus control boxes.
-
Push Main Switch to Choke: Push-to-choke operation helps with cold starts on compatible Yamaha engines.
-
Choke and Warning Functions: Includes choke control and an engine warning buzzer as part of the panel setup.
-
Keyed Panel Design: Keeps twin-engine ignition controls grouped in a familiar Yamaha layout.
-
OEM Replacement Fit: A practical replacement for worn or damaged twin-engine switch panel assemblies.
Installation Note
Installation should be performed with the battery disconnected and the wiring matched to the correct Yamaha conventional rigging configuration. Confirm the connector style, existing panel part number, and engine setup before installation.
Replacement Parts
-
Replacement Main Switch: 6K1-82510-07-00
-
Replacement Panel: 6K1-82571-02-00
-
Replacement Lanyard: 682-82556-00-00
FAQs
Q1: What is this Yamaha switch panel used for?
A1: It is used as a twin-engine key switch panel for conventional Yamaha rigging only.
Q2: How should I confirm this is the correct Yamaha part?
A2: Match the part number to your current switch, panel, or Yamaha rigging reference, and confirm your engine count, station setup, and connector style before ordering.
Q3: Can I install this switch panel myself?
A3: Marine electrical work should be done with battery power disconnected and wiring matched correctly. If you are not sure about the rigging layout, have a qualified marine technician install or inspect it.
Q4: Are related replacement parts available separately?
A4: Yes. Common related service parts are listed in the Replacement Parts section when available.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
#PanelType-CommandLinkTwinEngineSwitchPanel
Yamaha Command Link Twin Engine Switch Panel | 6Y8-82570-04-00
The Yamaha Command Link Twin Engine Switch Panel 6Y8-82570-04-00 gives twin-engine Yamaha Command Link setups a clean, organized switching point at the helm. It is designed to support the start and stop control layout used on compatible dual outboard installations. For boats with twin Yamaha power, this panel helps keep the dash looking factory-matched while maintaining easy access to key engine controls.
Key Features
-
Command Link Twin Engine Panel: Designed exclusively for Yamaha Command Link twin-engine installations.
-
Interchangeable Keys: Helps simplify key management and day-to-day helm use.
-
Single Engine Stop Lanyard: Reduces dash clutter while keeping emergency stop control close at hand.
-
Compact Dash Footprint: Helps conserve helm space and supports a cleaner installation.
-
OEM Yamaha Control Layout: Keeps twin-engine switch functions organized in a factory-style panel.
Installation Note
Installation should be completed with the battery disconnected and wiring matched to the correct Yamaha Command Link configuration. For second-station or multi-engine applications, verify the station layout and control system before connecting the panel.
Replacement Parts
FAQs
Q1: What is this Yamaha switch panel used for?
A1: It is used as a twin-engine Command Link switch panel for Yamaha Command Link systems.
Q2: How should I confirm this is the correct Yamaha part?
A2: Match the part number to your current switch, panel, or Yamaha rigging reference, and confirm your engine count, station setup, and connector style before ordering.
Q3: Can I install this switch panel myself?
A3: Marine electrical work should be done with battery power disconnected and wiring matched correctly. If you are not sure about the rigging layout, have a qualified marine technician install or inspect it.
Q4: Are related replacement parts available separately?
A4: Yes. Common related service parts are listed in the Replacement Parts section when available.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
#PanelType-CommandLinkTripleEngineSwitchPanel
Yamaha Command Link Triple Engine Switch Panel | 6X5-82570-02-00
The Yamaha Command Link Triple Engine Switch Panel 6X5-82570-02-00 is designed for triple-engine Yamaha Command Link applications at the helm. It groups the start and stop switching for three outboards into a clean factory-style panel. This panel is a strong fit for larger Yamaha-powered boats that need organized multi-engine control hardware in the dash.
Key Features
-
Triple Engine Command Link Panel: Designed for boats running three Yamaha outboards with Command Link rigging.
-
Integrated Marine Information System Use: Built to work with Yamaha's Command Link Integrated Marine Information System.
-
Streamlined Multi-Engine Control: Keeps triple-engine switch functions grouped in one helm-mounted panel.
-
Compact OEM Layout: Conserves dash space while maintaining a clean Yamaha control arrangement.
-
Genuine Yamaha Panel Design: Engineered for Yamaha fit, function, and long-term use in marine conditions.
Installation Note
Installation should be completed with the battery disconnected and wiring matched to the correct Yamaha Command Link configuration. For second-station or multi-engine applications, verify the station layout and control system before connecting the panel.
FAQs
Q1: What is this Yamaha switch panel used for?
A1: It is used as a triple-engine Command Link switch panel for Yamaha Command Link triple-engine applications.
Q2: How should I confirm this is the correct Yamaha part?
A2: Match the part number to your current switch, panel, or Yamaha rigging reference, and confirm your engine count, station setup, and connector style before ordering.
Q3: Can I install this switch panel myself?
A3: Marine electrical work should be done with battery power disconnected and wiring matched correctly. If you are not sure about the rigging layout, have a qualified marine technician install or inspect it.
Q4: Is this an OEM-style Yamaha rigging part?
A4: Yes. This page is written for Yamaha key switch, switch panel, or station control applications using compatible Yamaha rigging.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
