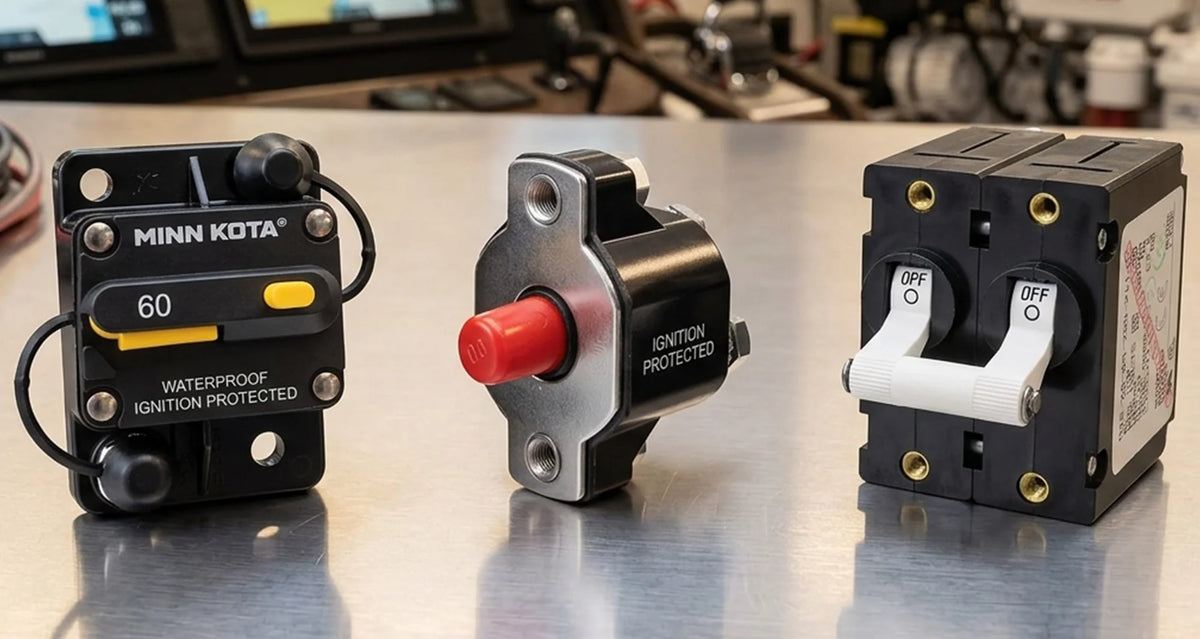

Boat Breaker Keeps Tripping: Marine Electrical Troubleshooting

A boat circuit breaker that keeps tripping has one of six causes: overload, short circuit, ground fault, wet or corroded connection, a failing motor or appliance, or a degraded breaker. Do not keep resetting it and do not install a larger breaker. The breaker is protecting the wiring – identify the fault first.

Two pieces of information do most of the diagnostic work before any tools come out: when the trip happens (instantly, after a delay, only on shore power, only when one device starts) and which loads were on at the time. The pattern identifies the most likely cause before anything is disconnected.

Electrical safety – read before doing anything

Disconnect shore power at the pedestal before working on any AC circuit. Switch off generators and inverters. Isolate batteries using the main battery switch where appropriate. Verify circuits are de-energized with a multimeter before touching wiring. Never replace a tripping breaker with a higher-rated one. A breaker is sized to protect the wiring – installing a larger breaker lets the wire overheat and start a fire before the breaker trips. AC circuits carry lethal voltage. Shore-power faults, ground-fault conditions, reverse polarity, and unresolved leakage current must be handled by a qualified marine electrician. Do not attempt to diagnose or repair AC faults without proper training and equipment. ABYC Standard E-11 governs AC and DC electrical systems on recreational boats and provides the engineering baseline for safe marine wiring. All repairs should meet or exceed ABYC E-11 requirements.

AC and DC circuits are separate systems with different hazards and different diagnostic paths. Confirm which side has the problem before proceeding.

ELCI and GFCI are doing their job when they trip

An ELCI or GFCI that trips has detected current taking an unintended path – either to ground through a fault, or through a person. These devices do not malfunction by tripping. A trip means a safety condition exists. Do not bypass, tape over, or defeat an ELCI or GFCI. Identify and correct the source of the leakage current before restoring power. AC leakage current diagnosis requires a qualified marine electrician.

Before touching anything, record: the tripping breaker's rated amperage, all loads connected to that circuit, exactly when the trip occurred (instantly, after delay, condition), and any recent changes to the boat's electrical system or wiring. This information guides both your own diagnosis and any technician who works on the issue.

An overload trips the breaker because the total current draw of connected loads exceeds the breaker's rating. The breaker is working correctly. The solution is fewer loads or reduced demand – not a larger breaker.

Running a battery charger, air conditioner, microwave, and water heater at the same time can exceed what a single shore-power circuit can supply. Compare the combined rated amperage of everything running against the breaker's rating before assuming a fault.

Stage high-draw loads instead of running them simultaneously

Air conditioning, battery charging, and electric heating are the three heaviest sustained AC loads on most boats. Running all three simultaneously on a 30-amp shore-power service leaves almost no margin for other loads. Use the battery charger during off-peak hours, reduce air conditioning when the charger is running, and avoid electric heating while both are active.

Low marina voltage can cause motors and compressors to draw abnormal current or overheat, depending on the appliance and its load. Check incoming voltage at the boat's shore-power connection under load – not just at rest. A marina with low voltage at peak summer demand is a common cause of breaker trips that look like overloads but are actually a supply problem. Use a shore-power monitor or a multimeter at the inlet terminals. Voltage below the manufacturer's specified minimum for any appliance is a legitimate reason to discontinue use and contact the marina.

A circuit with wiring smaller than the ABYC E-11 requirement for its current and run length heats up faster than the wire is rated for and trips the breaker before the true overload threshold is reached. If a breaker consistently trips at a load the breaker's rating should handle, measure the wire gauge against the ABYC ampacity tables for that circuit length and current. Undersized wiring is particularly common in older boats where circuits were added without following the original installation standard.

Delayed trip pattern

A breaker that holds for a few minutes and then trips is seeing a genuine overload or an overheating connection. Reduce the connected load and retest. If the problem clears with a reduced load, the circuit is being asked to carry more than it is rated for – either reduce the load or upgrade the circuit properly. If the breaker still trips with the load reduced, inspect every connection in the circuit for heat damage, discoloration, or corrosion. A high-resistance connection generates its own heat and can trip the breaker at moderate loads that the circuit should handle.

A breaker that trips instantly – the moment it is reset – has a short circuit or ground fault downstream. Do not keep resetting it.

A short circuit occurs when a conductor contacts another conductor at a different potential without going through the intended load. Causes include damaged insulation where two wires contact each other, a wire pinched against a metal fitting, a failed appliance with internal wiring damage, and loose wire strands bridging terminals. Short circuits can allow very high fault current, which is why the breaker trips immediately.

A ground fault occurs when current finds an unintended path to ground. In a DC circuit, this means an unintended connection between a powered conductor and the boat's grounded structure. In an AC circuit, current reaching the grounding conductor or the boat's structure creates a shock hazard – and the ELCI or GFCI trips before the branch breaker does, because they are more sensitive.

Saltwater is electrically conductive. Even a light film of salt on wiring insulation, at a terminal block, or inside a junction box creates a leakage path between conductors that behaves like a short circuit or ground fault. A circuit that starts tripping after rain, after washing down, or after submersion should be inspected for moisture before any other diagnosis.

With the breaker off and the circuit fully de-energized:

1. Disconnect every load on the tripping circuit. Reconnect the power source.

2. Reset the breaker. If it holds with all loads disconnected, the fault is in one of the loads or in the wiring to a load.

3. Reconnect each load one at a time, resetting the breaker after each connection. The load whose reconnection causes the instant trip is the fault source.

4. If the breaker trips with all loads disconnected, the fault is in the wiring between the breaker and the loads. Measure resistance from each conductor to ground – a low resistance reading with the circuit de-energized confirms a wiring fault.

AC ground-fault diagnosis is not a DIY task

For AC circuits, shore-power faults, ELCI or GFCI trips, or any suspicion of leakage current or reverse polarity – do not attempt to reconnect loads or trace the fault yourself. Call a qualified marine electrician. AC leakage current creates electric shock drowning (ESD) risk when it enters the water around the boat. This is a serious safety hazard.

Shore-power trips involve more components and more hazards than a typical DC circuit. The pedestal, cord, inlet fitting, onboard wiring, ELCI, and main breaker are all in the chain.

Inspect the full cord length and pay particular attention to the connector ends where insulation is stressed by repeated flexing. A burnt, blackened, or corroded connector must be replaced before reconnection. A cord that has been pinched, driven over, or left cracked in the sun creates both a trip hazard and a fire risk.

The inlet on the boat is subject to water intrusion, vibration, and stress from repeated connections. Loose terminals inside the inlet create resistance and heat. Inspect the inlet and its terminals for discoloration, melting, or corrosion.

The pedestal can have its own faults – a tripped pedestal breaker, low voltage, a bad outlet, or loose internal connections. If the boat's ELCI or main breaker trips immediately when shore power is connected, try a different pedestal outlet before assuming the fault is on the boat.

Reverse polarity is a shock hazard even if the breaker hasn't tripped

Shore power must connect hot to hot, neutral to neutral, and ground to ground. A wiring fault at the pedestal or a miswired cord can reverse the hot and neutral conductors. Many boats have a reverse-polarity indicator light. Reverse polarity must be addressed immediately – disconnect shore power and have the pedestal inspected before reconnecting.

An ELCI trips when it detects an imbalance between the current on the hot conductor and the current returning on the neutral – typically at 30 milliamps – indicating current is taking an unintended path. Branch GFCI devices trip at 5 milliamps. Both are safety devices doing their job. Do not defeat or bypass them.

Leakage sources include water-damaged wiring, a failed appliance with insulation breakdown, a battery charger with an internal ground fault, or stray current from adjacent boats sharing the same pedestal. Identification requires a qualified marine electrician.

A galvanic isolator manages the relationship between the boat's grounding system and the marina ground to prevent galvanic corrosion. A failed galvanic isolator or an overloaded isolation transformer can contribute to ground-fault trips and are not field-serviceable by the average owner.

Shore-power trip checklist

Disconnect the shore-power cord. Inspect the full cord and both connectors for burning, corrosion, or blackening. Check the reverse-polarity indicator if fitted. Try a different pedestal outlet before assuming the fault is on the boat. If the ELCI trips immediately when shore power is connected, leakage current, a ground fault, or reverse polarity is likely – qualified marine electrician required.

A 50-amp shore-power service delivers two 120-volt legs at 50 amps each. A main breaker that keeps tripping is carrying more than rated, receiving low voltage, or has a fault at a connection point.

• Calculate the combined load: add the rated amperage of everything running simultaneously – air conditioning, battery charger, water heater, outlets, and other AC loads. If the combined draw approaches or exceeds 50 amps on either leg, reduce the load before any other diagnosis.
• Check incoming voltage under load: low marina voltage during peak summer demand reduces efficiency and can increase current draw on some appliances. Use a shore-power monitor or multimeter at the inlet terminals. Voltage significantly below the manufacturer's rated minimum is a supply problem, not a boat fault.
• Inspect main terminals: a loose terminal at the main breaker or at the shore-power inlet adds resistance. Resistance produces heat. A hot connection trips the breaker even when total current is within the rating. Inspect for discoloration, melted insulation, or corrosion at the main terminals.
• Evaluate the breaker itself: a breaker that has tripped hundreds of times, has been exposed to sustained high heat, or has aged can drift below its rated trip threshold. If the breaker trips consistently at loads well below its rating with good supply voltage and clean terminals, the breaker may need replacement.

DC circuits powering pumps, motors, windlasses, and DC appliances trip for a specific set of reasons distinct from AC overloads and ground faults.

A bilge pump, livewell pump, washdown pump, or freshwater pump with debris in the impeller, a seized bearing, or a stuck vane draws significantly more current than normal. The motor stalls, current rises, and the breaker trips. Remove and inspect the pump before resetting the circuit.

DC motors draw several times their running current for a brief moment at startup. A motor nearing the end of its service life, or driving a load at the limit of its design, may produce startup inrush current that trips the breaker consistently at startup while holding fine once running. This pattern points to a motor or its mechanical load nearing service limits – not necessarily a short or overload in the conventional sense.

A pump or motor that has ingested water, been submerged, or has failed internally due to worn windings creates a low-resistance fault that resembles a short circuit. The breaker trips and remains tripped. Repeatedly attempting to reset is not diagnostic – test the motor with a multimeter for winding resistance against spec, and replace if out of range.

Low voltage at a DC motor affects its speed, torque, heat generation, and current draw. A low battery, a corroded terminal, or an undersized wire run all create voltage drop that shows up as poor performance and elevated current draw. Measure voltage at the motor terminals while it is running – not at the battery. A significant difference between battery voltage and motor terminal voltage (more than 0.5V) indicates resistance in the cable or connections that should be corrected.

Voltage-drop test procedure

Set the multimeter to DC volts. Touch the probes to the positive terminal of the motor and to the battery positive under load (pump running). Any reading above 0.5V is excessive resistance in the positive circuit. Repeat on the negative/ground side. A voltage drop on the negative side indicates a poor ground connection. Fix the wiring before replacing the motor.

Moisture and corrosion are the underlying causes behind many electrical faults that appear on the surface to be overloads or shorts.

Even a light film of salt on wiring insulation, at a terminal block, or inside a junction box creates a leakage path between conductors. Condensation in sealed compartments – particularly in boats that go from hot dock temperatures to cold nights – can deposit enough moisture to trip a sensitive ELCI. A circuit that trips after rain, after washing down, or after high-humidity conditions should be inspected for moisture before any other diagnosis.

A terminal that is not properly crimped or that has loosened under vibration creates resistance. Resistance produces heat. Over time, heat discolors the insulation, melts the connector, and eventually creates a partial or complete fault.

• Signs to look for: green or white corrosion on wire strands, discoloration of insulation near a connection, a connector that has softened or melted, a panel that is warm around a specific breaker, or a burning or melted-plastic odor.
• Inspection approach: with the circuit de-energized, inspect every accessible connection in the tripping circuit. Any connection showing heat damage must be completely remade – clean to bare metal, new marine-grade terminal, proper crimp, and heat-shrink seal. Do not clean and re-use a heat-damaged terminal.
• Thermal detection: a thermal imaging camera or infrared thermometer identifies hot connections under load without contact. Running the circuit under normal load for 15–20 minutes and then checking terminal temperatures is a faster and more comprehensive inspection than visual alone. Consumer-grade thermal cameras have become affordable and are a useful tool on any well-equipped boat.

ABYC E-11 requires that all marine electrical connections use tinned, marine-grade wire and sealed connectors in wet or bilge locations. A butt splice or connector using bare copper wire and an unsealed crimp absorbs moisture and corrodes internally. The corrosion adds resistance and eventually creates a fault that looks like a short. If a corroded connection is found in an older installation, replace it to ABYC standards rather than cleaning and reusing it.

Never reset a tripping breaker until you have worked through this sequence. A breaker that trips is protecting something. Find out what.

1. Disconnect the power source. Shore power at the pedestal, generator off, battery switch to off. Verify de-energized with a multimeter before touching anything.

2. Record the exact situation. Write down which breaker tripped, its amp rating, every load connected to that circuit, and when and how the trip occurred.

3. Visually inspect. With the circuit de-energized, inspect every accessible connection for moisture, heat damage (discoloration, melted insulation), corrosion, and loose terminals.

4. Disconnect all loads on the tripping circuit. Confirm each load is isolated – its switch is off and its circuit is electrically separated from the wiring.

5. Restore power and attempt a single reset. If the breaker holds with all loads disconnected, the fault is in one of the loads or in the wiring between the breaker and a load.

6. Reconnect loads one at a time. Add one device, check that it operates normally, then add the next. If the breaker trips when a specific device is added, that device or its wiring is the fault.

7. If the breaker trips with all loads disconnected, the fault is in the wiring itself between the breaker and the loads. Electrical testing is needed – see the service manual and ABYC E-11 for the appropriate measurement procedure.

8. Stop immediately if any abnormal heat, odor, sparking, or smoke appears. Do not restore power.

9. Call a qualified marine electrician for any AC fault, ELCI or GFCI trip, ground-fault suspicion, reverse polarity, wiring showing heat damage, or any fault you cannot confidently identify and correct.

A breaker can become the problem rather than the solution. It is less common than an overload or wiring fault, but it happens – particularly in older installations or after a history of repeated trips.

A breaker that has tripped many times over years of service wears mechanically. The thermal or magnetic element that triggers the trip can drift below its original calibration, causing it to trip at current levels below its rated value. This shows up as a breaker that trips at loads well below its rating with good supply voltage and no visible wiring fault.

A breaker located near a hot connection, exposed to engine heat, or run at sustained loads near its rating can sustain thermal damage to its internal element. A damaged breaker may trip erratically or at unpredictable loads.

A breaker that is not making solid contact with the bus bar in the panel creates resistance at the bus connection rather than in the circuit wiring. This resistance generates heat in the panel and may cause the breaker to trip without a fault in the circuit. Inspect the breaker's bus connection as part of any panel inspection.

Breaker replacement requirements

Replacing a breaker requires an exact match on amperage rating, voltage rating, interrupt capacity (the maximum fault current the breaker can safely interrupt), physical form factor, and marine application approval. A breaker with an insufficient interrupt rating can be destroyed by a fault rather than interrupting it. Consult the panel manufacturer's approved replacement list or a marine electrician when selecting a replacement. Never substitute a higher-amp breaker to stop nuisance trips.

Why a larger breaker is never the answer

A circuit breaker is sized to protect the wiring – not the appliance. The wire in the circuit can only carry a certain current before it overheats. Installing a larger breaker removes the protection the wire depends on. The breaker may no longer trip before the wire reaches dangerous temperatures. The original breaker rating is the maximum for that circuit. Find the fault. Fix it. Do not upsize the breaker.

Some electrical faults are safely diagnosed and corrected by a systematic owner. Others are not. Call a marine electrician for:

• Any AC circuit fault, shore-power problem, or ELCI/GFCI trip that doesn't clear after obvious load correction.
• Any suspicion of reverse polarity or leakage current – even if no symptoms are obvious.
• Wiring that shows heat damage, discoloration, melting, or burning odor.
• Any fault where the wiring path is not fully traceable or accessible.
• Galvanic isolator, isolation transformer, or bonding system questions.
• Any installation or modification that adds or changes AC wiring.
• Any fault you are not able to confidently identify and correct with certainty.

The cost of professional diagnosis is small compared to the cost of a wiring fire, an electrical injury, or electric shock drowning (ESD). ESD occurs when AC current enters the water surrounding a boat and is a serious and underrecognized hazard at marinas. Any confirmed or suspected AC leakage into the water warrants immediate shore-power disconnection and professional inspection.

The trip pattern is the starting point. A breaker that trips instantly has a short or ground fault. One that trips after a delay has an overload or a hot connection. One that trips only on shore power has a cord, inlet, pedestal, or leakage problem. One that trips when a specific device starts has a motor, pump, or appliance fault.

Match the pattern to the cause before resetting. AC faults and shore-power problems belong with a qualified marine electrician. DC circuits are more approachable for a systematic owner – but the same rule applies: find the fault, correct it, then reset.
