Majestic - UFO X RV 30dB Digital TV Antenna f/RVs - UFO X RV

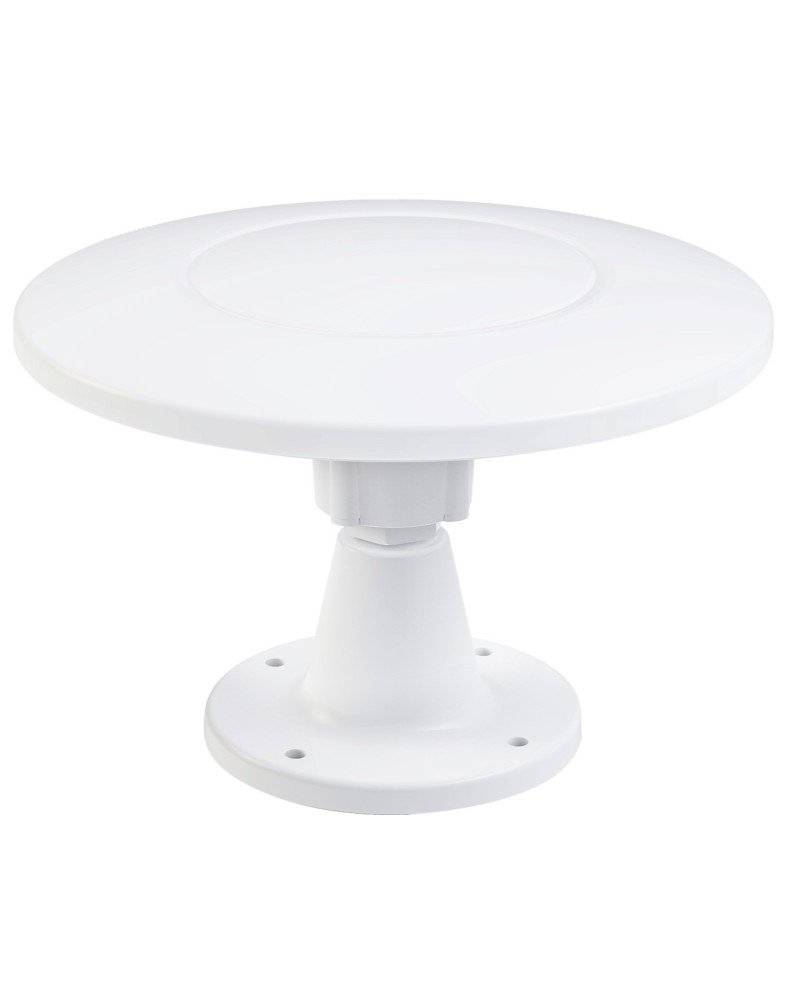

The UFO X RV is the latest in digital technology and high performance for TV Reception in your caravan, Motohome or RV. It has the highest gain of any TV antenna for its tiny 27cm Diameter. It might be small but its packed with powerful technology, supplied with a Wall Plate that has an Antenna socket and Cigarette plug for RV installation.

With technology improving at a rapid pace, and the digital TV roll out, Majestic knew it was time to redevelop the UFO TV antenna and bring the latest in state-of-the-art technology to a new model. The Majestic UFO X is the new replacement to the famous UFO which was over 10 years old in technology and was known globally as the ultimate Marine Antenna with its high gain and compact size. The Majestic engineering team re-developed the UFO X into the UFO X RV specifically designed for the RV industry and to be perfectly matched with the Majestic range of TVs and give you the ultimate in performance especially when you are in the fringe areas outback.

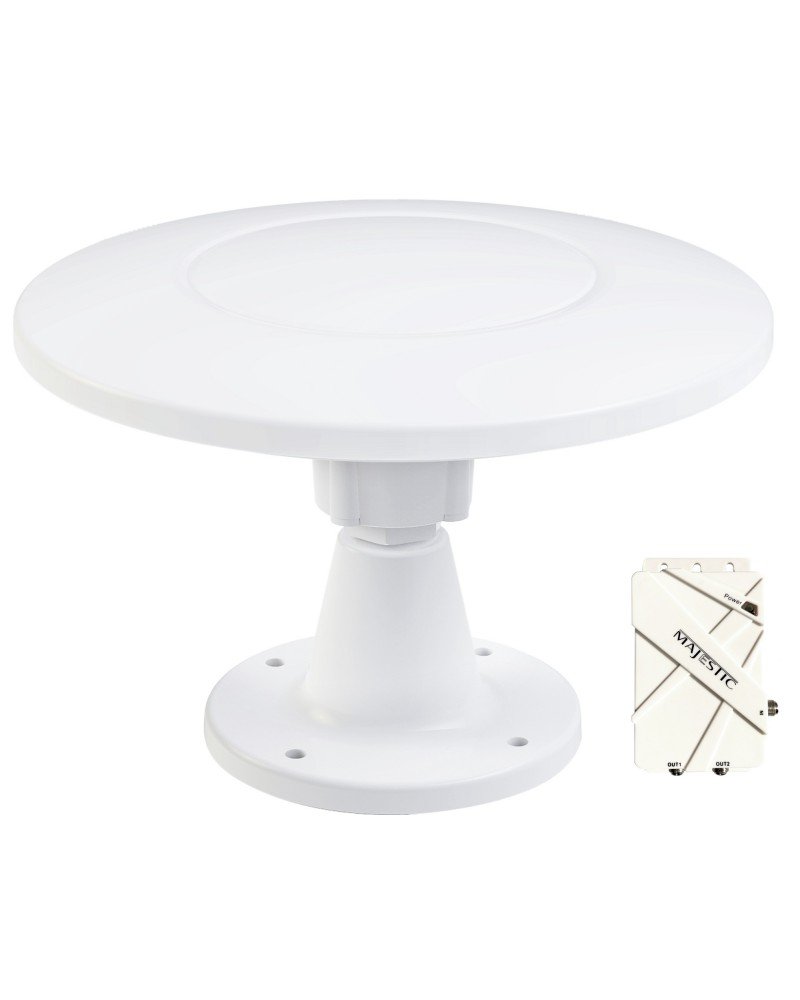

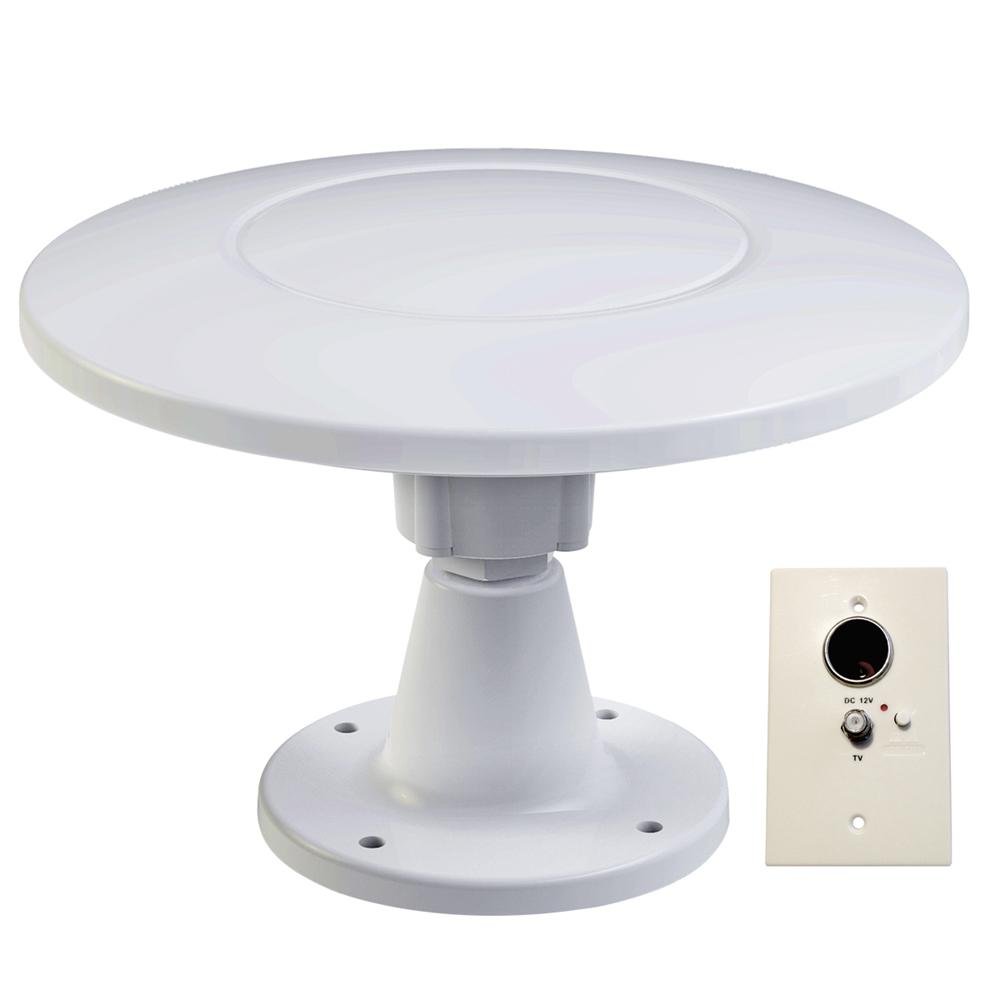

Supplied with a wall Plate that has an antenna socket and Cigarette plug for RV installation.

Size: The Majestic UFO X has had a major facelift with the redesign of the technology use in the internal electronics and the case design. These technical advances have allowed the Majestic UFO X Marine TV Antenna to be smaller than the previous UFO model. The UFO was 30cm (10") in diameter, the new UFO X is supporting an improved reduced size of 24cm (9.4") in diameter and it is more powerful than the previous model.

Gain: Firstly the main engineer improvement is the High Gain of the UFO X which is at 30dB versus the previous model at 28dB. The UFO X has a 30dB High Gain Amplifier built into the Antenna which is a 58% increase in signal performance on the UFO. (For every 3dB Gain the signal level doubles). This gives you a huge advantage over other TV antennas because now you have a very strong signal in the antenna that has not had any interference being induced when it received the signal, and with a very strong signal being sent down the cable, the electrical interference is insignificant compared to the strong signal. Once the signal is sent down to the junction we do not need to do any filtering or cleaning to give you excellent digital reception.

Vertical and Horizontal: The UFO X has had a vertical and horizontal plane incorporated to give you the performance needed in both Vertical and Horizontal locations. This feature is rarely found in TV Antennas as most are either designed to work in a Vertical or Horizontal application. For those that are looking for a TV antenna that can perform world-wide covering both vertical and horizontal, digital and analog signals then the Majestic UFO X Marine TV Antenna is the ultimate choice.

SNR: Signal to Noise Ratio. This is one of the most important factors of a TV Antenna which has an amplifier. The lower the signal to noise ratio the better the amplifier performs. Basically we are comparing Signal vs Noise. The more signal we have and the less noise we have the better the amplifier works. The UFO X uses state-of-the-art-technology to produce a very low a signal to noise ratio of 3dB which is extremely low compared to most other brands. This means that more signal is amplified and less noise is amplified, which in turn means better performance. This also significantly improves distance performance, as the further you get the signal is weaker, and the noise of electrical interference, other noise still remains high, so the UFO X Amplifier is able to clean the signal and give you exceptional performance.

Ground Independent: The UFO X is also designed to be ground independent (does not need a ground plane or be grounded) to amplify the TV signal. This design is very specific as most installations do not allow for a proper RF Ground, which is totally different to an electrical ground. This is another brilliant engineering design by Majestic to make this antenna perfect for boats or any non-metal roof installation.

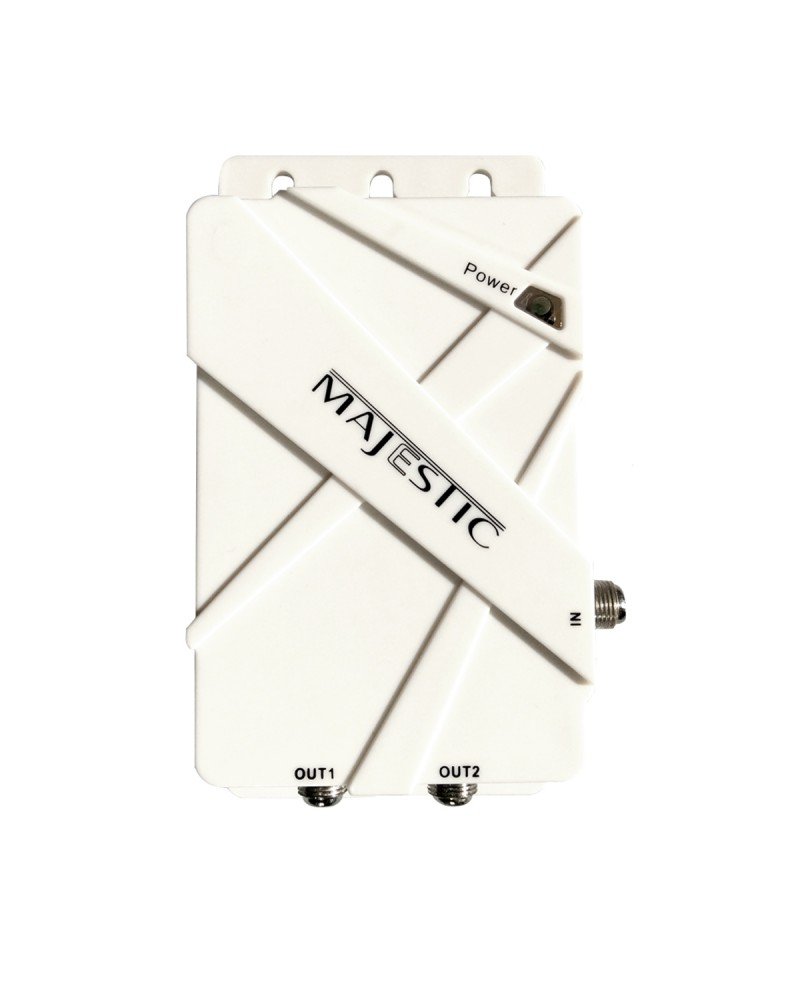

Lighting: One of the most important features of the old UFO was the red light Majestic had on the Antenna and Junction box, this allowed for easy fault finding. The UFO X has been upgraded, and the Majestic engineering team have done some major changes in the lighting too.  When the Majestic UFO X Marine TV Antenna antenna is powered up through the junction box, there are two lights which light up. The junction box has its own Green LED light to indicate that there is power getting to the junction box. Then the UFO X has a Bright Blue light which shines through the case giving you easy identification that the UFO X is powered up. These lights are much brighter that what used in the past, and use the same amount of power as the previous versions.

Voltage Range - Most Antenna brands claim they are 12 Volt, and technically yes they work on 12 Volts. However the issue is the level of tolerance that most of these Antenna have, most 12 Volt TV antenna have a limited tolerance, generally between 11V and 14V. This can cause many people problems especially when they have long cable runs, or the battery voltage drops a little (especially late at night), or even if they have a poor power connection. The Majestic UFO X TV Antenna is designed to work from 9V through to 27V DC, therefore ensuring you will not have any power issues. The TV Antenna is not designed to work on a 24V system if the charging goes above 28V DC.

TV Reception - One important factor in being able to receive TV signal is the signal level. The Majestic UFO X TV antenna which has the highest gain at 30dB for its tiny 9" size, you can be assured that if there is any chance of signal reception, you will be the one that can get it with the Majestic UFO X.

UHF/VHF/FM: The UFO X is capable of receiving signal on different frequencies. Throughout various countries there are UHF and VHF signals for Digital and analog TV, the UFO X can pick them up and integrate the process in the antenna and amplify them and send a nice clean signal down the cable for your TV. But more importantly the UFO X can pick up FM signal and boost this performance. The UFO X Junction box has Two Outputs and you can use one of them for the FM Signal to give you improved radio performance. The two outputs from the junction box incorporate UHF/VHF/FM so it does not matter which port you use for the different devices.

Warranty: Majestic products are designed and developed in Australia and exported globally, with over 15 years experience Majestic stands by the quality of our products by providing a 3 year worldwide warranty. Our engineering design team has paid attention to all the important details to ensure that when you purchase a product of this quality and caliber that you can enjoy many years of reliable performance in the toughest conditions where domestic brands will not survive.

Upgrading: For those wishing to upgrade, the Junctions boxes are fully interchangeable between the Majestic UFO and the Majestic UFO X so therefore you do not need to change the Junction if you upgrade to the UFO X higher performance Antenna.

Performance: The UFO X has been re-engineered using the latest in state-of-the-art technology to allow it significantly outperform the previous UFO Model. So if you are looking for a high performing TV antenna then the UFO X will give you the Extreme performance you are looking for.

If you need a TV antenna with a grounded system, for example an RV, Motorhome, Caravan, Truck, Bus, Steel or Aluminium Vessel then you need to use our ANTRV01 which is specifically designed for ground dependent installations.

Features:

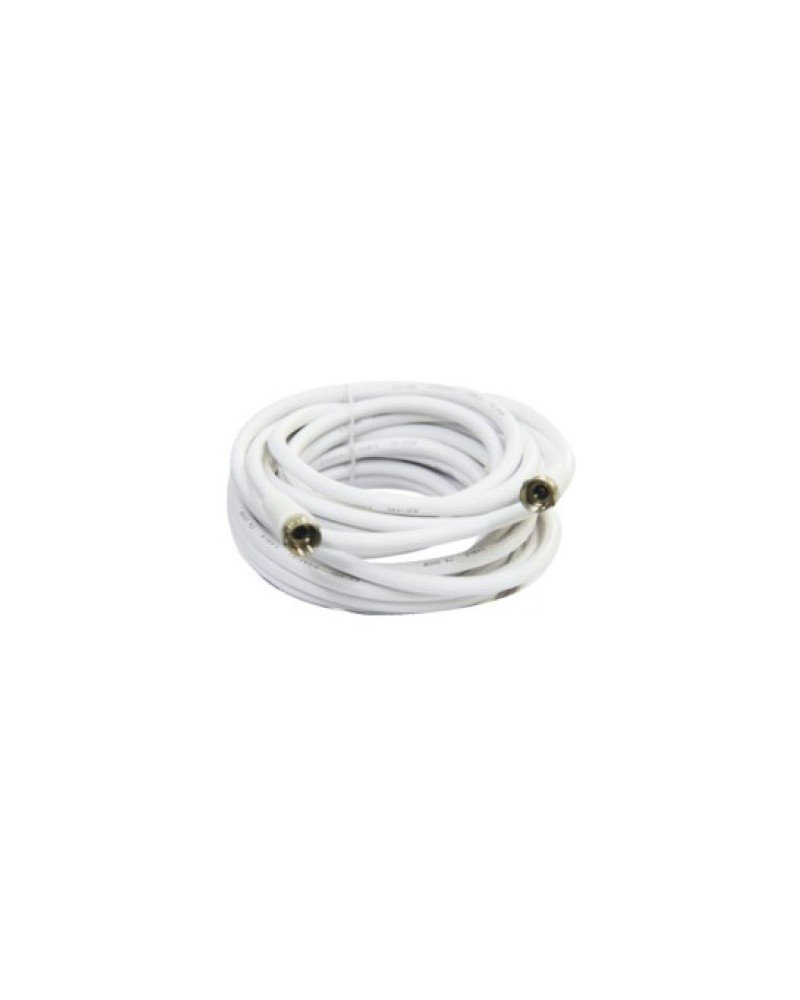

• Accessories Supplied: Wall Plate with Cigarette Socket, Connectors, Manual, 10M Cable
• Color: White
• Current Draw @ 12 Volts: 0.1 Amp
• 27cm Diameter - 9"
• 30dB Gain
• Voltage Range: 10.0V to 24VDC
• Weight: 300gm
