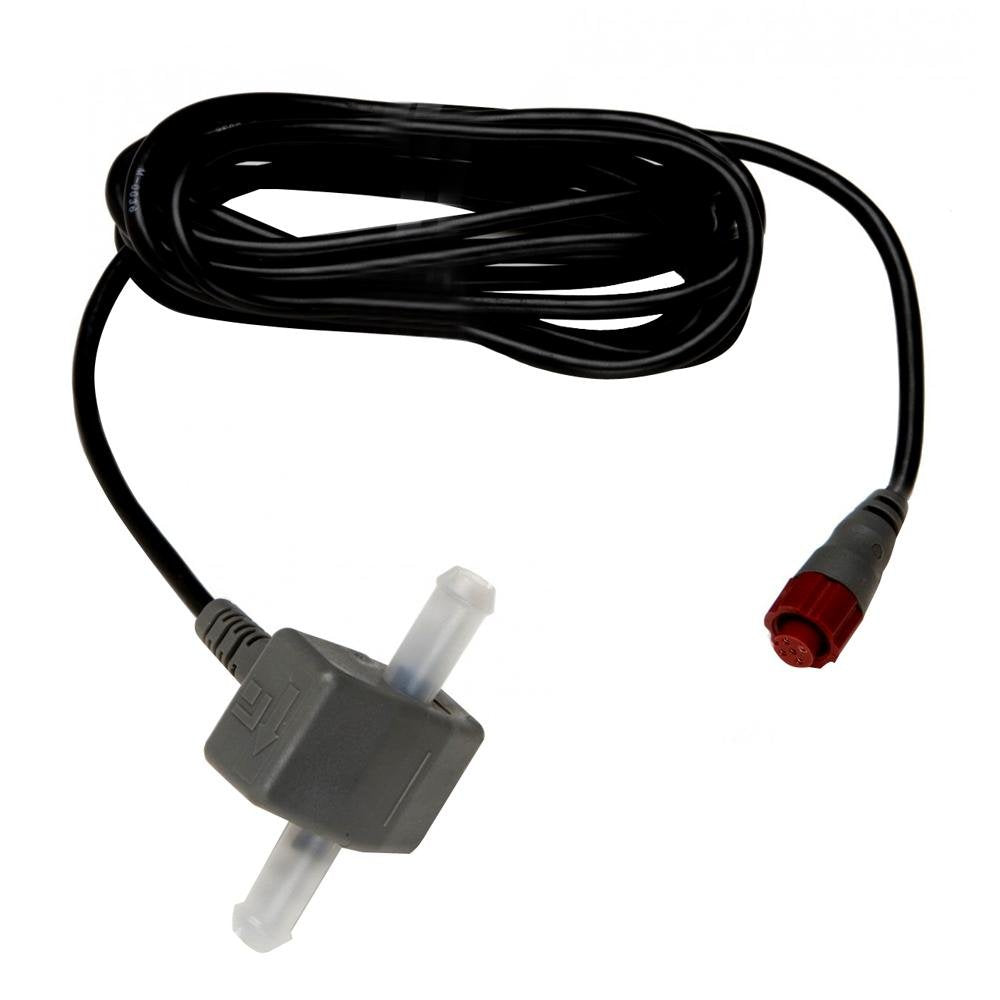

Lowrance Fuel Flow Sensor w/10' Cable & T-Connector - 000-11517-001
Loading...
Lowrance Fuel Flow Sensor w/10' Cable & T-Connector - 000-11517-001
SKU:
PV010351
$237.00
Unit price /
Unavailable
Lowrance Fuel Flow Sensor w/10' Cable & T-Connector - 000-11517-001 is backordered and will ship as soon as it is back in stock.
This product could earn you
points
Learn more about PartsVu rewards
Learn more about PartsVu rewards
Free Shipping Over $99
Orders $99 or more ship free within the contiguous U.S. May not apply to engines or oversized orders.
Learn MoreQuick & Easy Returns
We accept returns on most items for 45 days— with no restocking fees.
Learn MoreReady to Serve
Our top priority is your ultimate satisfaction, and to get you back to boating as soon as possible.
Contact a Parts Pro
Size chart content page
Lowrance Fuel Flow Sensor w/10' Cable & T-Connector - 000-1...
$237.00
Unit price /
Unavailable
Description
Description
Fuel Flow Sensor with 10' cable & T-connector
Fuel Flow Sensor Gasoline ONLY. 1 required per engine. Up to 3 engines supported.
Outputs:
Cable Length: 10'
Fuel Line Diameter: 3/8" (9.5mm) Inside Diameter
Flow Rate Measured: Optimized for 0.6-45 Gal/hr but can measure outside these values
Added Back Pressure to the fuel system: 0.5 PSI at 20 Gal/hr; 1 PSI at 40 Gal/hr
Installation Location: Above the max level of the fuel tank, in-line after the fuel filter and any Y's or T's in the line
Package: The Fuel Flow Sensor, N2K T and 2 (two) 1" hose clamps
Fuel Type: Gasoline only. The Fuel Flow Sensor does not operate diesel engine fuel systems
Hole required to route through a bulkhead: 22mm (7/8")
Multiple Fule Flow sensors possible: Yes
Fuel Flow Sensor Gasoline ONLY. 1 required per engine. Up to 3 engines supported.
Outputs:
- Fuel Flow
- Tank Fuel Used
- Trip Fuel Used
- Seasonal Fuel Used
Cable Length: 10'
Fuel Line Diameter: 3/8" (9.5mm) Inside Diameter
Flow Rate Measured: Optimized for 0.6-45 Gal/hr but can measure outside these values
Added Back Pressure to the fuel system: 0.5 PSI at 20 Gal/hr; 1 PSI at 40 Gal/hr
Installation Location: Above the max level of the fuel tank, in-line after the fuel filter and any Y's or T's in the line
Package: The Fuel Flow Sensor, N2K T and 2 (two) 1" hose clamps
Fuel Type: Gasoline only. The Fuel Flow Sensor does not operate diesel engine fuel systems
Hole required to route through a bulkhead: 22mm (7/8")
Multiple Fule Flow sensors possible: Yes
