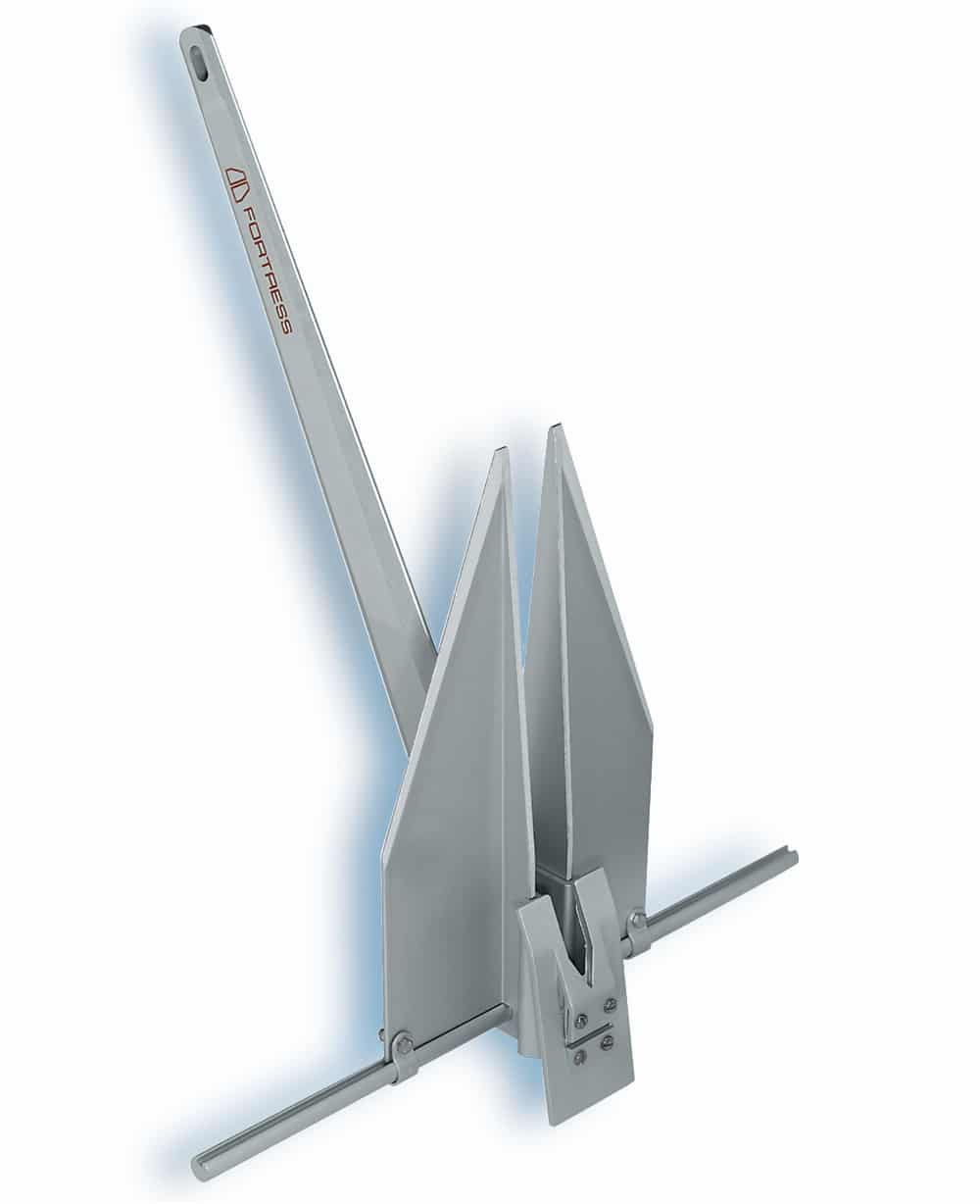

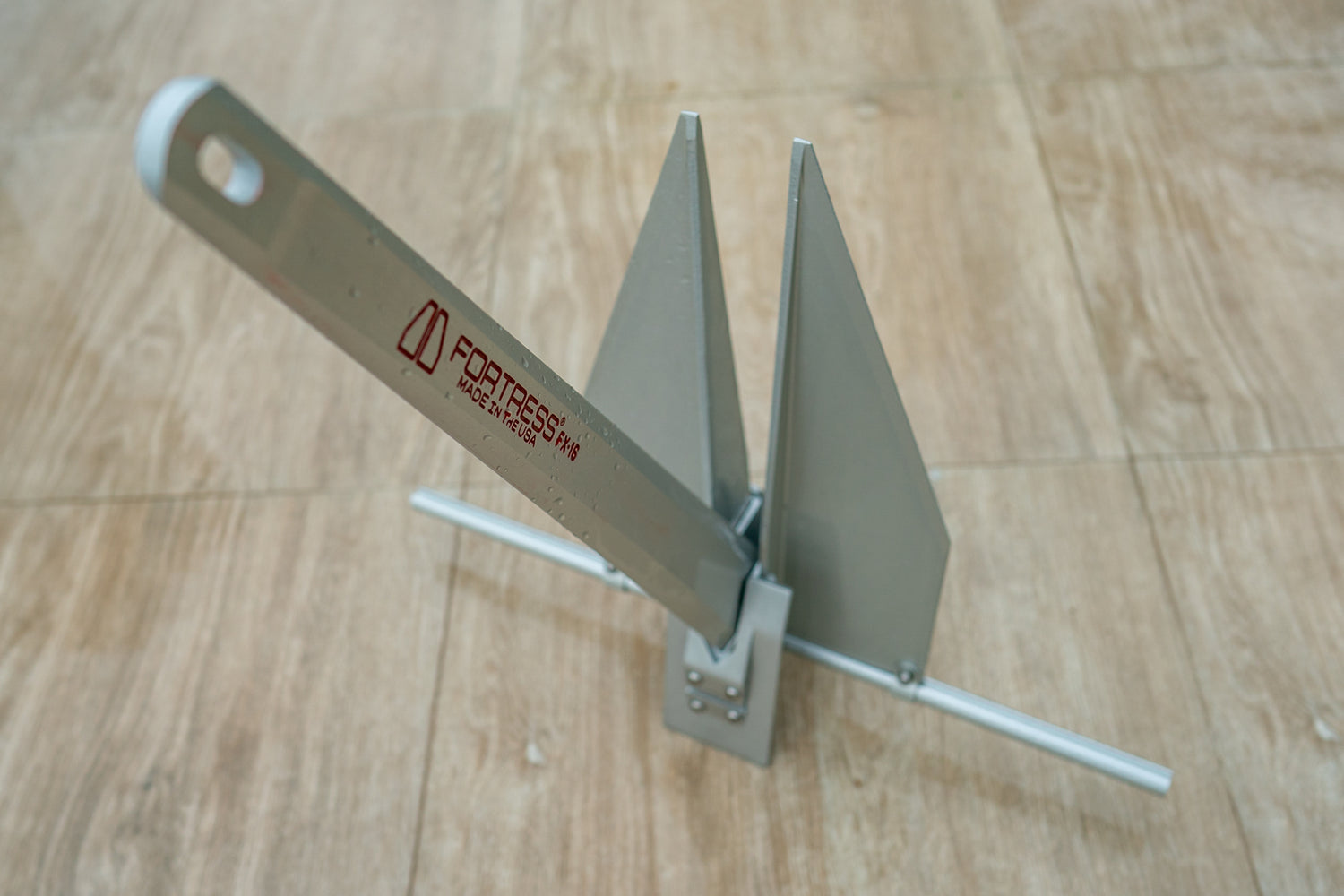

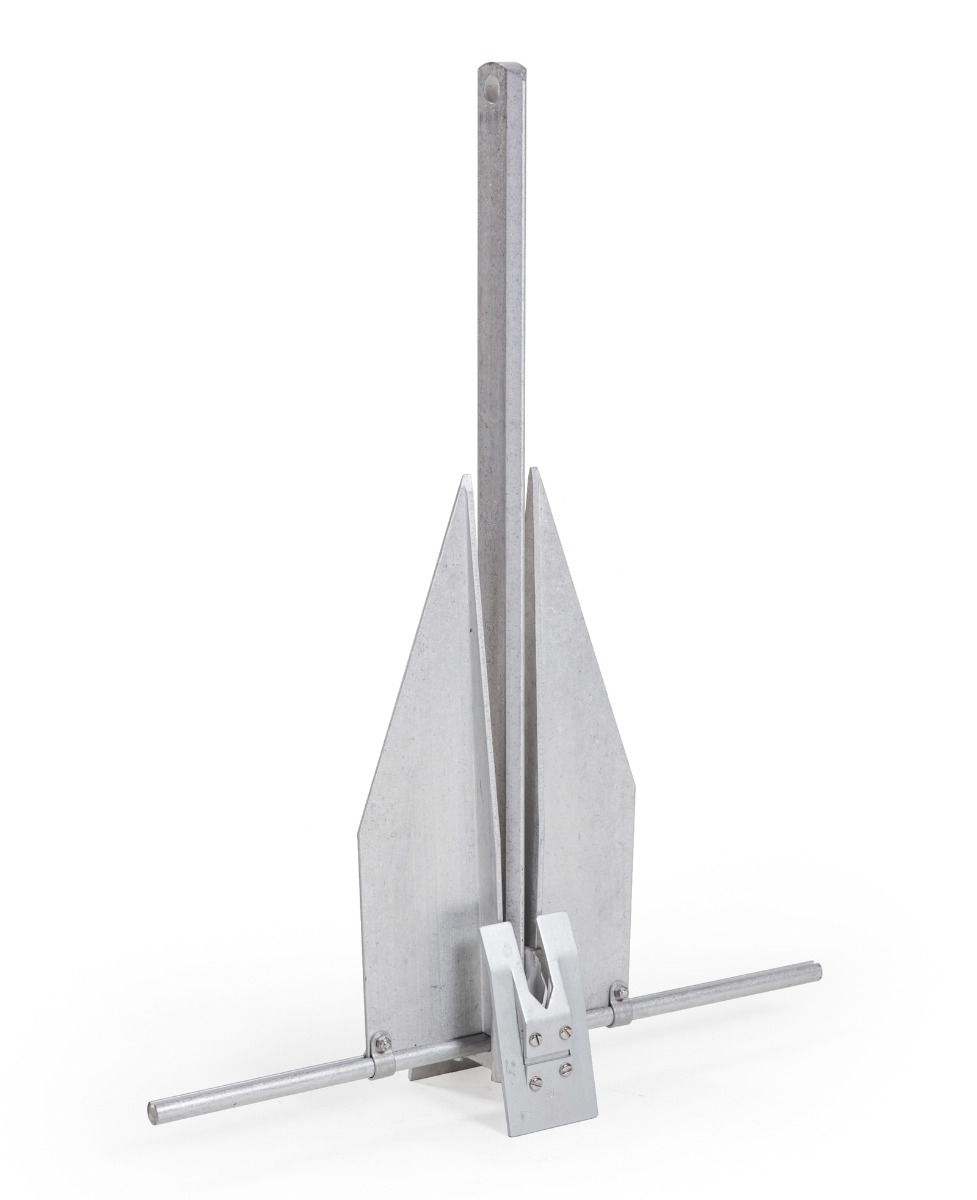

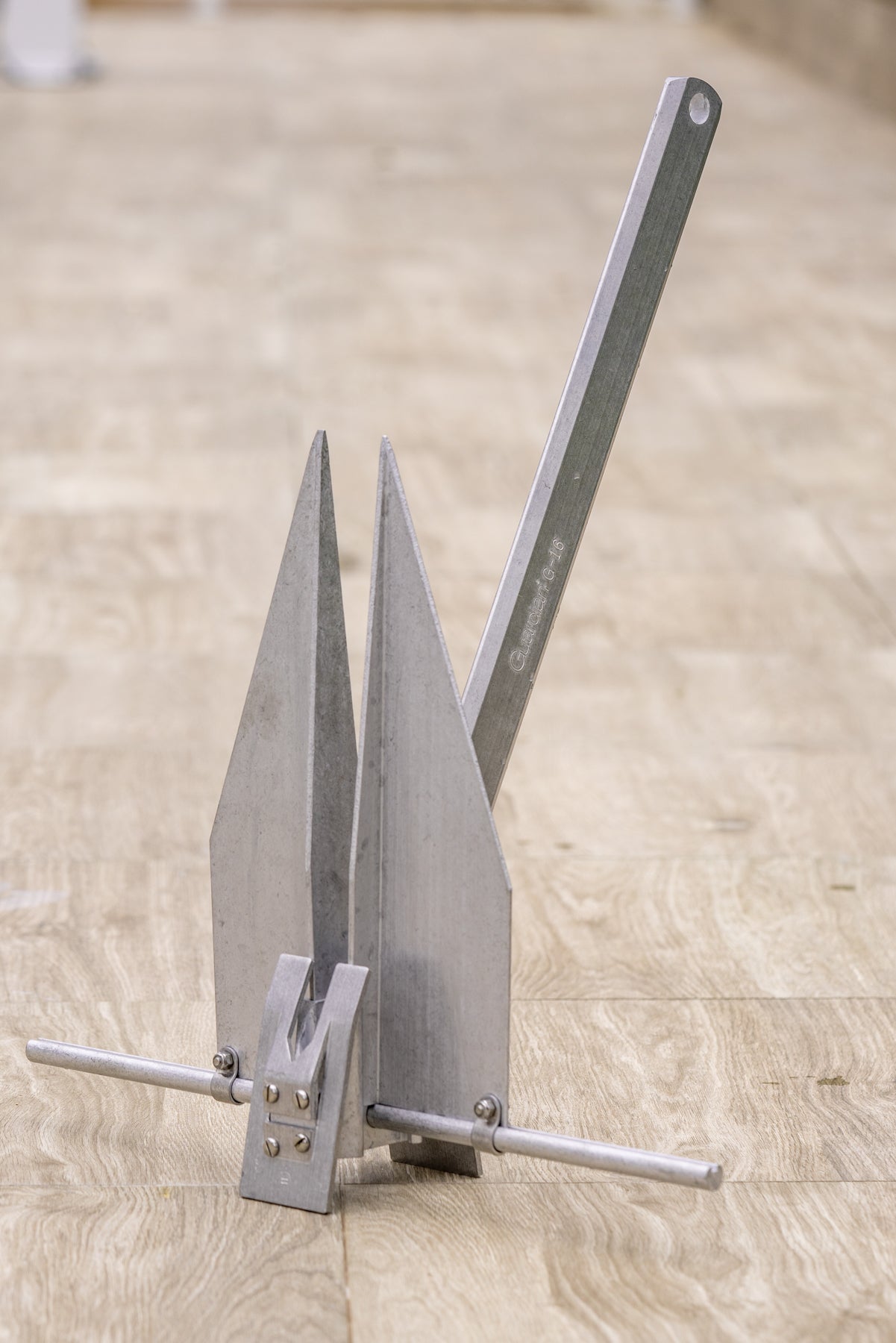

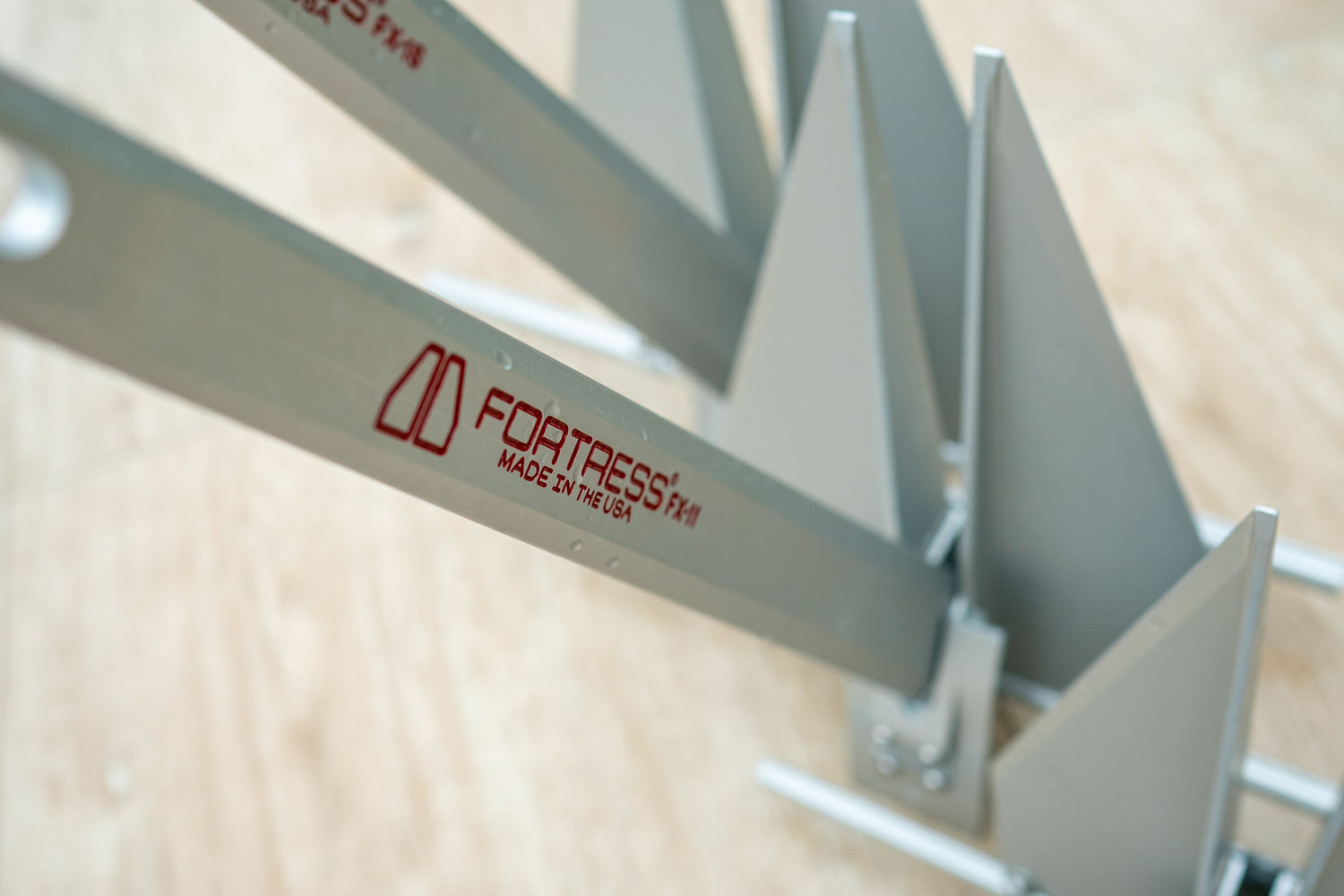

Fortress - FX-23 Aluminum Anchor - 15 lb - 39' to 45' Boats
SKU: PV1000491
$656.99
Free Shipping!
This product could earn you points
Learn more about PartsVu rewards

Free Shipping Over $99


Orders $99 or more ship free within the contiguous U.S. May not apply to engines or oversized orders.

Learn More

Fast Shipping


In-stock orders ship the next day, from the warehouse closest to you.

Learn More

Quick & Easy Returns


We accept returns on most items for 45 days— with no restocking fees.

Learn More

Ready to Serve


Our top priority is your ultimate satisfaction, and to get you back to boating as soon as possible.

Contact a Parts Pro

Description

For over three decades, the much lighter Fortress Anchor has out-performed substantially heavier steel anchors in holding power tests conducted all around the world. In the US Navy tests, not only did the Fortress out-perform heavier steel anchors, they were also able to withstand pull loads that averaged over 200x their own weight.

Fortress Anchors are constructed using a high-tensile, corrosion-resistant, aluminum magnesium alloy. This results in a lighter, easy to handle anchor with superior holding power.

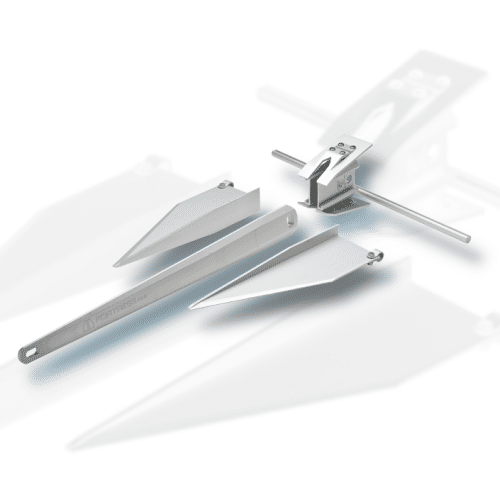

The anchors have been designed to be easily disassembled for compact storage, or as a spare and/or a storm anchor. All Fortress Anchors are precision-machined for sharpness and quick penetration into common sea bottoms, which ensures faster setting-performance.

Fortress Marine Anchors offers a 100% Hassle-Free Lifetime Parts Replacement Warranty.

*Made in the U.S.A.

Features:

  • Award Winning Design
  • Highest rating in tests worldwide
  • Hardened high-tech aluminum magnesium alloy

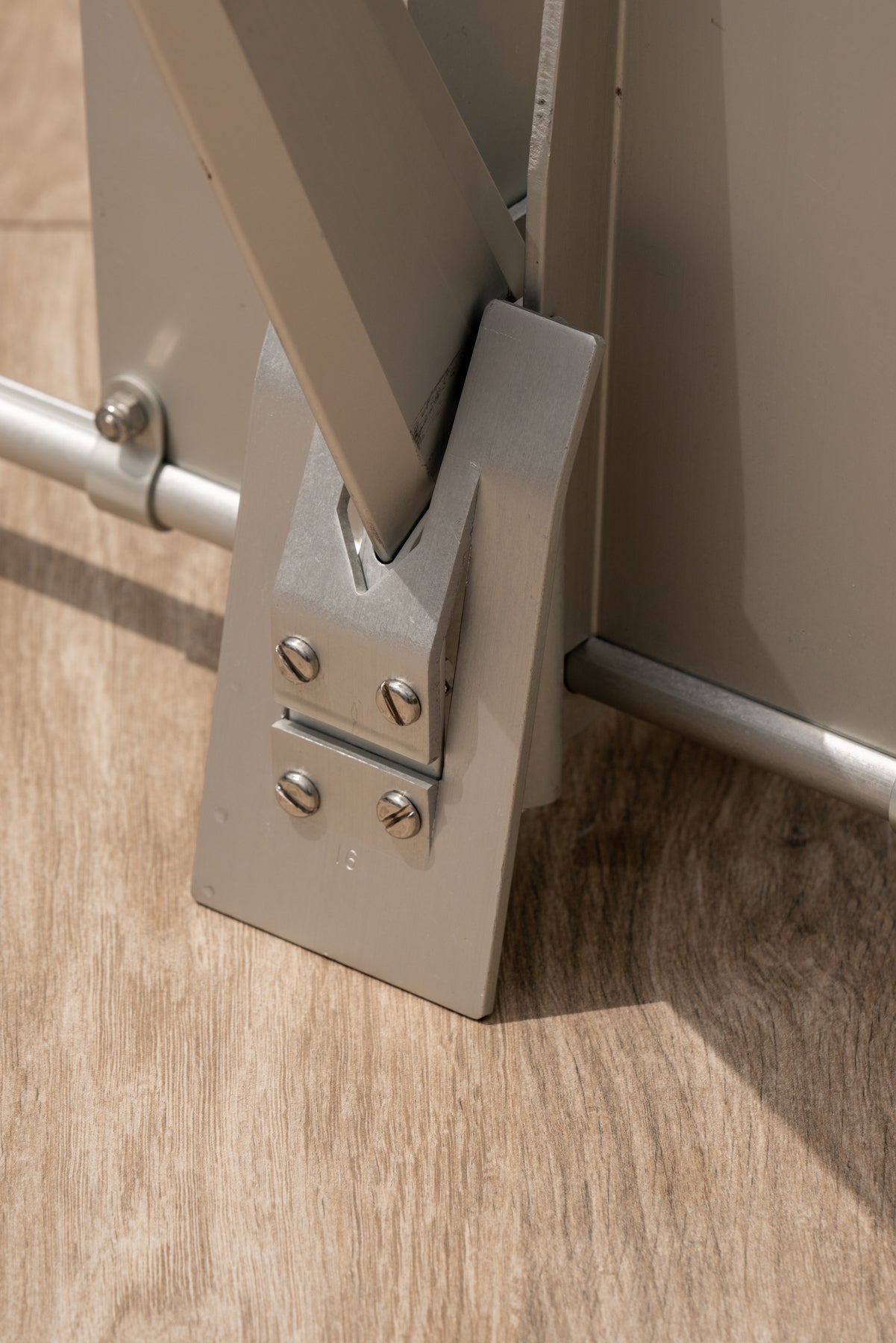

  • Adjustable fluke angles: 32° for common bottoms, 45° for soft mud
  • Easily disassembled for easy storage
  • Easy to manage weight
  • Tough anodized finish

Technical Specifications:

  • Size of Boat - 39' to 45' (12 to 14 M)
  • Style - Fluke
  • Material - Aluminum magnesium alloy
  • Working Load - 2,000lb (907kg)
  • Shank Length - 36" (914mm)
  • Fluke Length - 21" (533mm)
  • Stock Length - 29" (737mm)
  • Weight - 15lbs (6.8kg)

*Sold as an Individual

Download Rebate Form

Fortress Angler Assembly Instructions

Boat Length ft 16'-27' 28'-32' 33'-38' 39'-45' 46'-51' 52'-58' 59'-68' 69'-89' 90'-150'
m 5-8m 8-10m 10-12m 12-14m 14-15m 16-18m 18-21m 21-27.1m 27.4-46m
Fortress Model FX-7 FX-11 FX-16 FX-23 FX37 FX-55 FX-85 FX-115 FX-125
Weight lb (kg) 4 (1.8) 7 (3.2) 10 (4.5) 15 (6.8) 21 (9.5) 32 (14.4) 47 (21.2) 60 (27.2) 69 (31.1)
Replaces Steel Anchors lb 6-9 10-13 14-18 19-28 33-50 50-65 70-90 90-100 100-170
kg 3-4 5-6 6-8 9-13 15-23 23-29 32-41 42-44 45-77
HOLDING POWER
Working Load lb 700 900 1,250 2,000 3,000 4,000 5,250 6,000 6,750
kg 318 408 567 907 1,361 1,814 2,381 2,721 3,062
32° Hard Sanding Holding lb 2,800 3,600 5,000 8,000 12,000 16,000 21,000 24,000 27,000
kg 1,270 1,633 2,268 3,629 5,443 7,258 9,526 10,886 12,247
45° Soft Mud Holding lb 840 1,080 1,500 2,400 3,600 4,800 6,300 7,200 8,100
kg 381 490 680 1,089 1,633 2,177 2,858 3,265
 3,674
32° Soft Mud Holding lb 420 540 750 1,200 1,800 2,400 3,150 3,600 4,050
kg 191 245 340 544 816 1,089 1,429 1,633 1,837
DIMENSIONS
"A" Shank Length in (mm) 24" (610) 27" (686) 31" (787) 36" (914) 40" (1,016) 46" (1,168) 51" (1,295) 51" (1295) 56" (1,422)
"B" Fluke Length in (mm) 14" (356) 16" (406) 18" (457) 21" (533) 24" (610) 27" (686) 30" (762) 33" (838) 33" (838)
"C" Stock Length in (mm) 19" (483) 22" (559) 25" (635) 29" (737) 32" (813) 37" (940) 41" (1,041) 45" (1,143) 45" (1,143)
SUPPORT HARDWARE
Proof Coil Chain in (mm) 3/16" (5) 1/4" (6) 5/16" (8) 3/8" (9) 3/8" (9) 1/2" (13) 1/2" (13) 1/2" (13) 1/2" (13)
Nylon Rope ** in (mm) 3/8" (9) 3/8" (9) 1/2" (13) 5/8" (16) 3/4" (19) 7/8" (22) 1" (25) 1 1/4" (32) 1 1/4" (32)
Shackle Size in (mm) 1/4" (6) 1/4" (6) 5/16" (8) 3/8" (10) 7/16" (12) 1/2" (12) 5/8" (16) 5/8" (16) 5/8" (16)
