Scanstrut - LMB-A1 Self Leveling Radar Mount - Backstay (A) - for Raymarine/Garmin Domes - LMB-A1

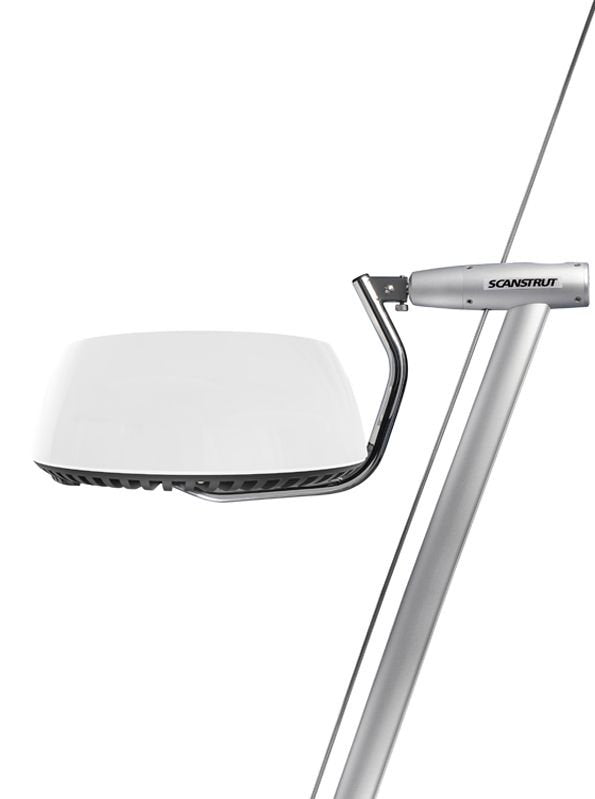

Our Self-Levelling Backstay Mount ensures your radar stays level with the horizon at all times for optimum antenna performance. As the boat heels or rolls, the radar is kept horizontal preventing target loss and giving the best possible radar picture.

Using our own fine-tuned hydraulic damping system, the radar mount reacts to major changes in heel angle of the boat whilst eliminating all small oscillations.

2.6m (8'6") high, mounts forward of the backstay, keeping your radar away from any interference, leaving a clear deck free from obstruction. Constructed from the best marine-grade aluminium, designed to fit the most up to date radars from Garmin, Raymarine and B&G.

Hydraulic damping

The main levelling unit features a fine-tuned damping system which reacts to major changes in heel angle of the boat. It is entirely maintenance-free and no power is required.

Bespoke mounting pole

2.6m (8'6") aluminium mounting pole, supplied in 2 lengths with hidden joiner piece. Cables are routed down a cable channel for a neat install. Extension pieces are available.

High strength universal base for mounting pole

Eliminates loading on backstay. The base can be deck, transom or chainplate mounted.

Suitable for any yacht

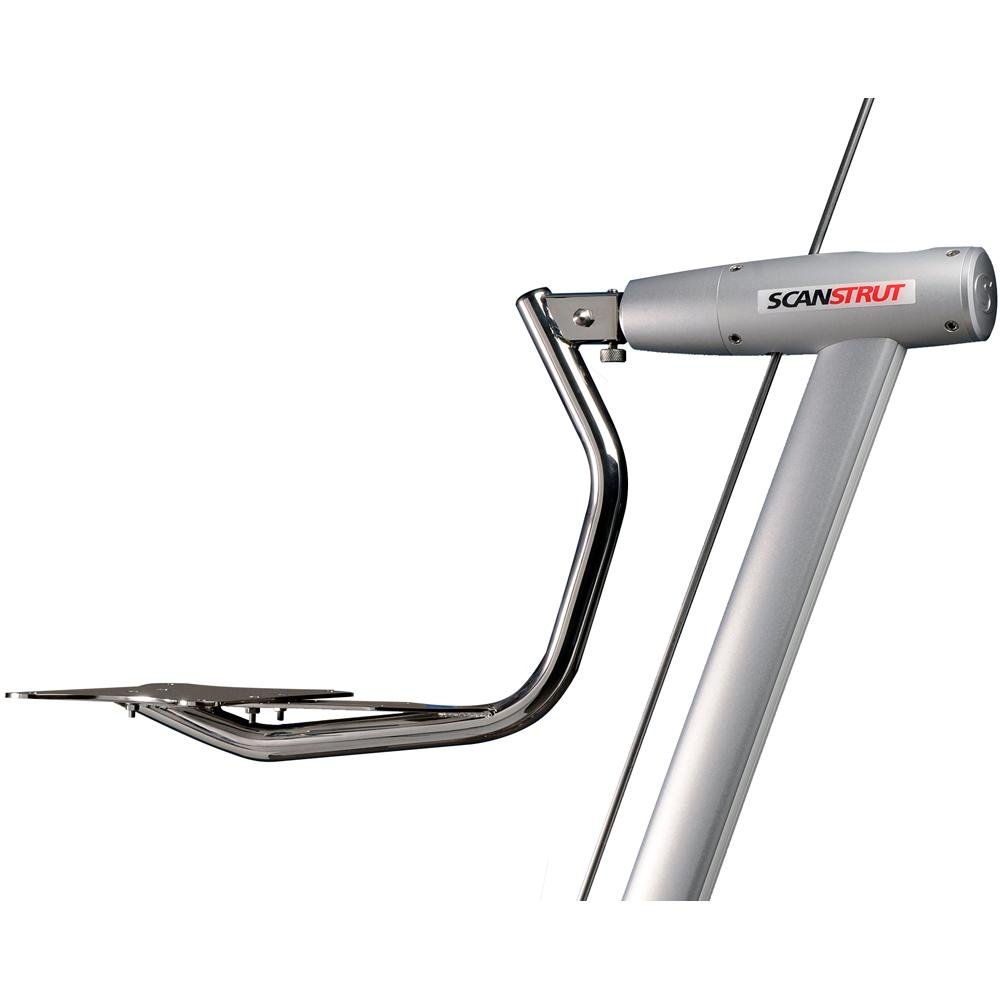

Stainless radome cradle has a fine tune adjustment for backstay angle and the product can be installed on both adjustable and split backstays (see faq for further information).

Nylon backstay bushing supplied

Clamps around backstay allowing cable tension to be adjusted.

Mount your radar higher

Additional 0.6m and 1.3m lengths available to mount your radome higher

Features:

• Hydraulic damping to eliminate minor oscillations
• Sealed system - entirely maintenance free
• Passive system - no power required
• Lightweight head unit - reduced weight aloft
• Stainless radome cradle with fine tune adjustment for backstay angle - suitable for any yacht
• Nylon backstay bushing supplied - clamps around backstay allowing cable tension to be adjusted

Dimensions:

• 2.6m pole - supplied in lengths of 1.3m
• Additional 0.6m and 1.3m lengths available

Materials:

• Finest quality machined and anodised aluminium pole and head unit - lasts the lifetime of your yacht
• Marine grade 316 stainless steel cradle and base plate

Kit includes

• 1 x Levelling mount with integral backstay bushes (to fit 7, 8, 10 and 12mm diameter backstay cables)
• 2 x 1.3m lengths of mounting pole
• 1 x Joiner piece for mounting pole
• 1 x Universal base for mounting pole
• 1 x Complete fastening pack
