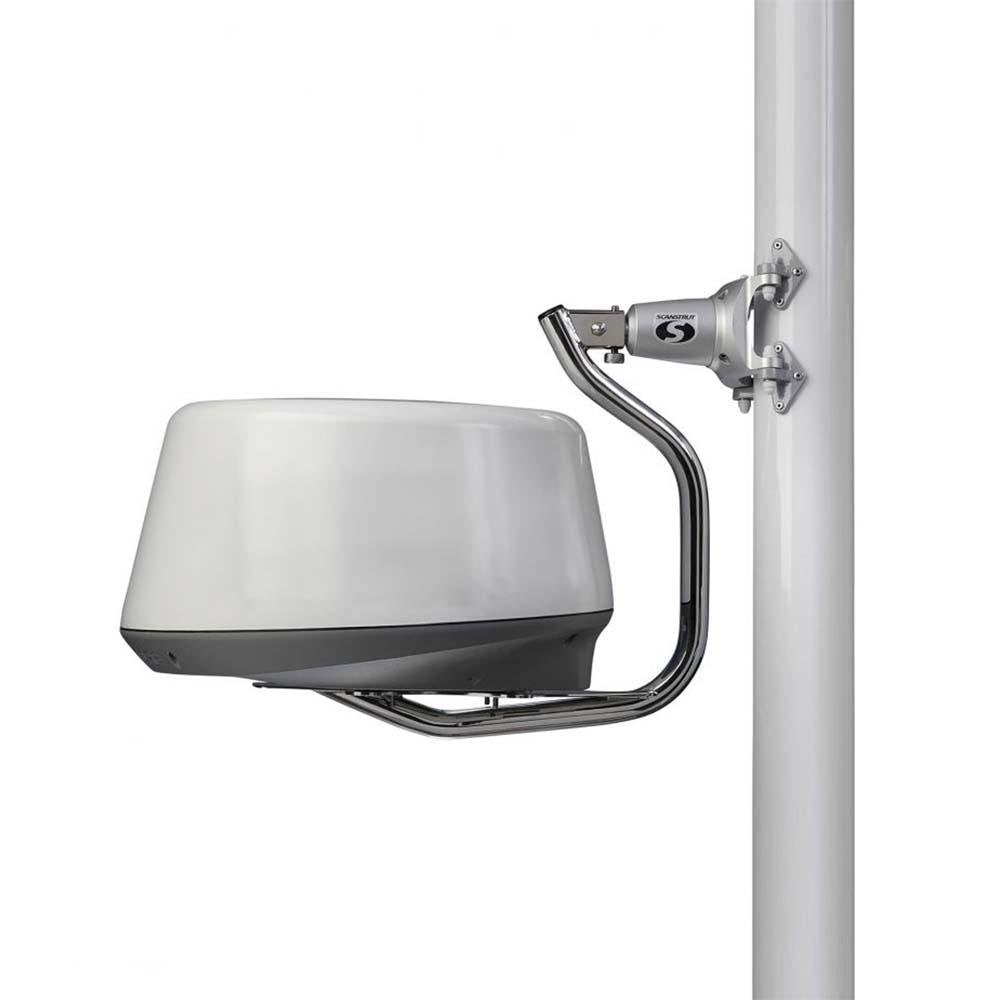

Scanstrut - LMM-1 Self Leveling Radar Mount - LMM-1

Our Mast Leveller features a fine-tuned hydraulic damping system that reacts to major changes in the heel angle of the boat. No power is required. Designed to fit the most up-to-date radars from Garmin, Raymarine Lowrance and B&G.

Our Self-Levelling Mast Mount ensures your radar stays level with the horizon at all times for optimum antenna performance. As the boat heels or rolls, the radar is kept horizontal preventing target loss and giving the best possible radar picture.

Using our own fine-tuned hydraulic damping system, the radar mount reacts to major changes in heel angle of the boat whilst eliminating all small oscillations.

Our mast-mounted leveller raises the antenna clear of the deck and any obstructions for increased radar horizon.

Hydraulic damping

The main levelling unit features a fine-tuned damping system which reacts to major changes in heel angle of the boat. No power is required.

Lightweight head unit

The complete system weighs only 3.4 kg (8.1 lbs)

Secure installation

Attaches to mast with four swivel feet, matching a variety of mast profiles. A 12-point fixing using monel rivets ensures a secure fixing.

Suitable for any yacht

Stainless radar cradle has a fine tune adjustment for different mast rake angles.

Features

• Hydraulic damping to eliminate minor oscillations
• Sealed system - entirely maintenance free
• Passive system - no power required
• Reduced weight aloft - complete system weighs only 3.4 kg
• Easy upgrade from fixed mast mount - same mounting footprint as SC20 & M92722
• Attached to mast by four swivel ffet - matches the profile of any mast
• 12 point fixing - highest quality monel rivets
• Compact mount - radar extends only minimum distance from front of mast

Materials

• Finest quality machined and anodised aluminium mast adapter
• Marine grade 316 stainless steel cradle and base plate

Kit includes

• 1 x Levelling mount
• 1 x Mast Adapter
• 1 x Complete fastening pack

Compatible Units

• Garmin GMR18/GMR18HD/GMR24HD
• Raymarine RD218/RD424
• Lowrance 3G Broadband
• Simrad 3G Broadband
• Simrad DX45/DX60
