Bennett - 12x9 BOLT Electric Trim Tab System with Adjustable Upper Hinge

Properly sized trim tabs improve the performance of your boat by adjusting the running angle of your vessel. Bennett Marine trim tabs help you get on plane faster, correct listing (roll), improve visibility, and increase overall efficiency and control.

General guidelines for choosing a trim tab size:

In general, the widest span tabs that will fit on the transom will be the most effective. The greater the surface area, the greater the lift. We"˜ll typically recommend a 9" chord tab, but depending on available transom space a shorter or longer chord tab, or specially shaped tabs with upfins or dropfins may be advised.

As a general rule for boats with max speeds of 40MPH, choose at least one inch of trim tab span (per side) for every foot of boat length. For example, a 22"² boat would use a 24"x9".
For speeds 40MPH and over, we'll generally point you to one of the Bennett Performance, or Premier Line high-performance systems.

Exceptionally durable and dependable electric trim tab systems

• Lifetime warranty for electric actuators
• Water-tight design provides trouble-free operation for years
• Solid construction is built to last
• Installation is fast and simple

Items included:

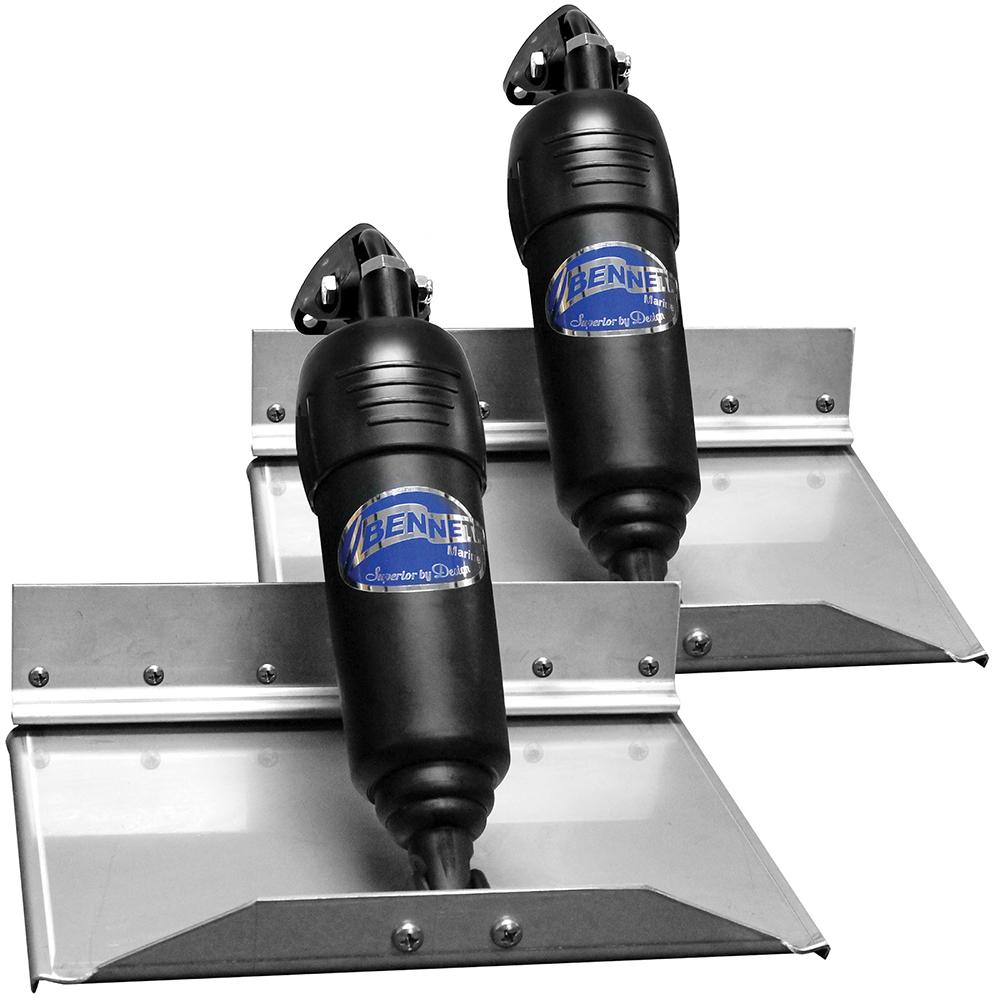

• (2) Stainless steel trim planes (tabs) and mounting plates
• (2) 20ft. harnesses with waterproof connectors (BAW2020)
• (2)  12-volt actuators with 6ft. wire harnesses and waterproof connectors (BEA3000)

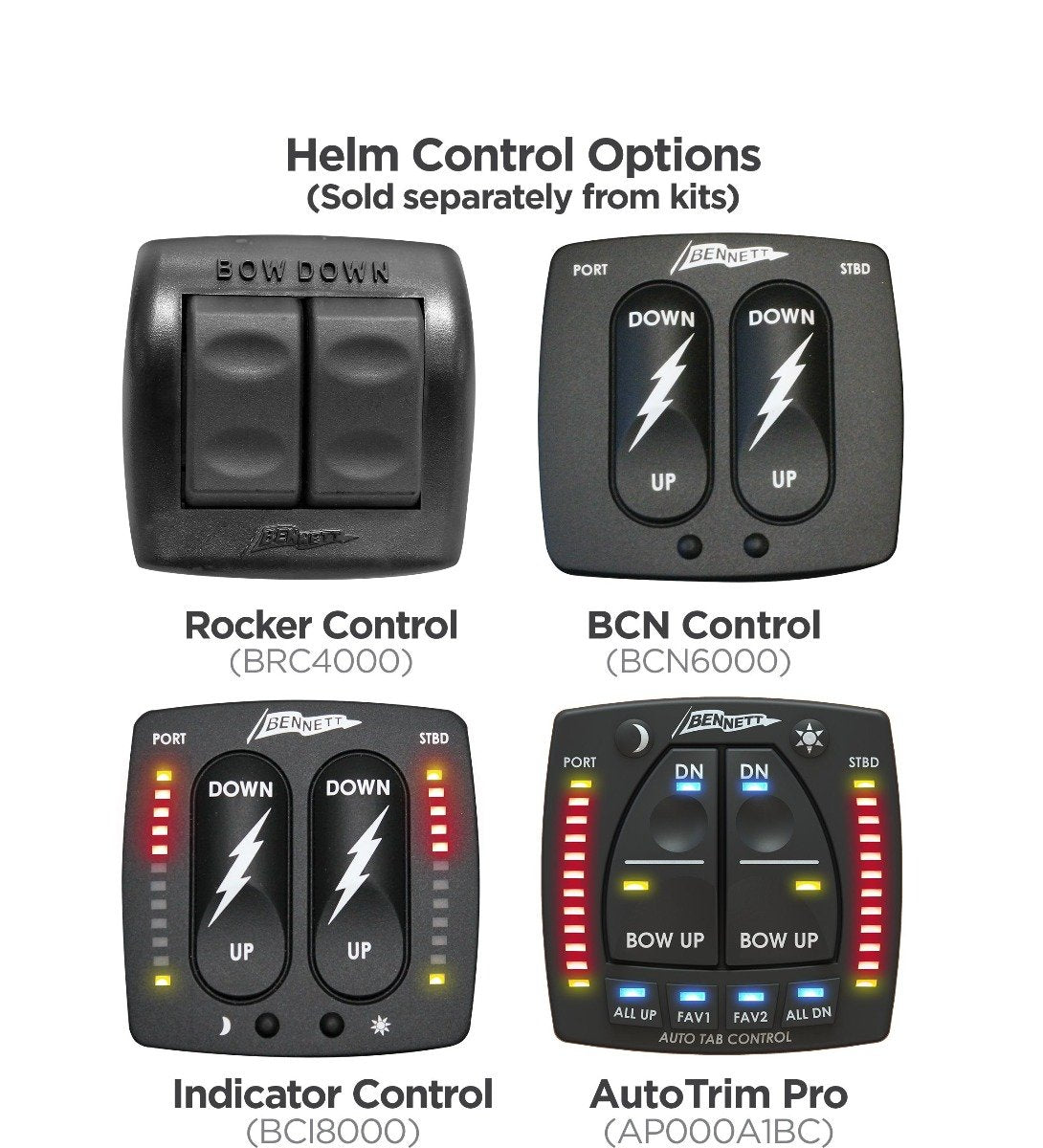

• Controls Sold Separately
