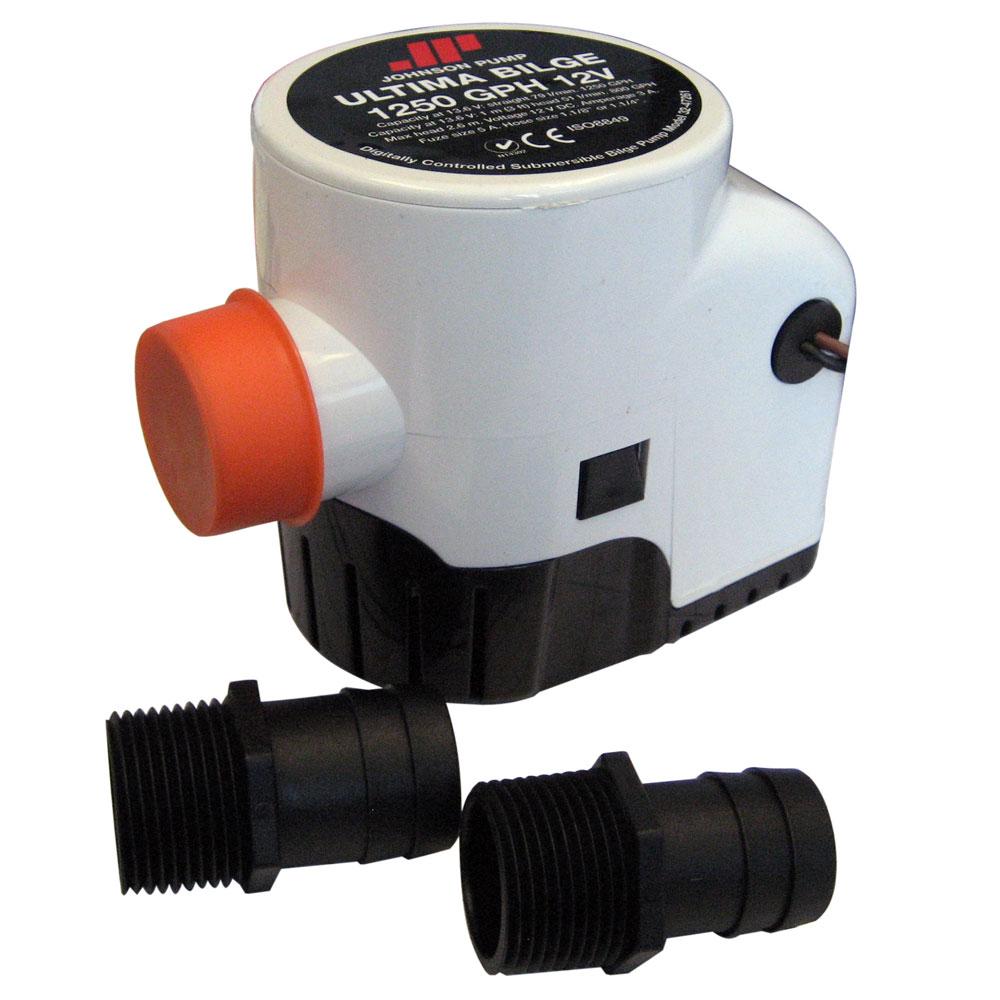

Ultima Bilge Pump
UltimaBilge Pumps are the latest addition to the Johnson Pump brand lineup. Integration of the Ultima "field effect" sensing technology into the bilge pump body creates a sleek, reliable and compact unit with integrated switch ready to install and run for years and years of unerring service. Available in 600-800-1000-1250 GPH versions. Voltage 12 V DC. For UltimaBilge 600 GPH-1000 GPH, we have easy-to-install Dura-Port discharge ports to eliminate stress cracking caused by over-tightened hose clamps. The pumps are delivered including both a straight and a 90 degree smooth elbow Dura-Port. For UltimaBilge 1250GPH we include threaded 1&1/4" and 1&1/8" discharge ports.

All version are delivered with a removable check valve.

The Ultima Bilge pumps may be manually operated via the Johnson Pump bilge control panel.
CE-Approved

Features:

• Compact, all-in-one unit
• Integrated Ultima Switch sensing right into the pump body
• No Mercury
• Removable clip on basket design
• Removable impeller cover allows for easy clean out
• 3-wire device can be run in auto or manual override mode
• No tools needed for maintenance
• Extremely energy efficient
• Water-cooled motor for long service intervals
• Pump Body: ABS
• Shaft Seal: Lip Seal
• Shaft: Stainless steel (SS2343)
• Voltage: 12 V DC
• Capacity 3 ft (0.9 m) head (13.6 V): 51 l/min - 800 GPH
• Capacity straight (13.6 V): 79 l/min - 1250 GPH
• Amperage: 3 A
• Fuse Size: 5 A
• Connection: 1⅛” and 1¼”
• Length:142 mm - 6"
• Width:82 mm - 3.2"
• Height:117 mm - 4.6"
• Weight:0.66 kg - 23.3 oz.
