187 - Series Thermal Circuit Breakers - Panel Mount

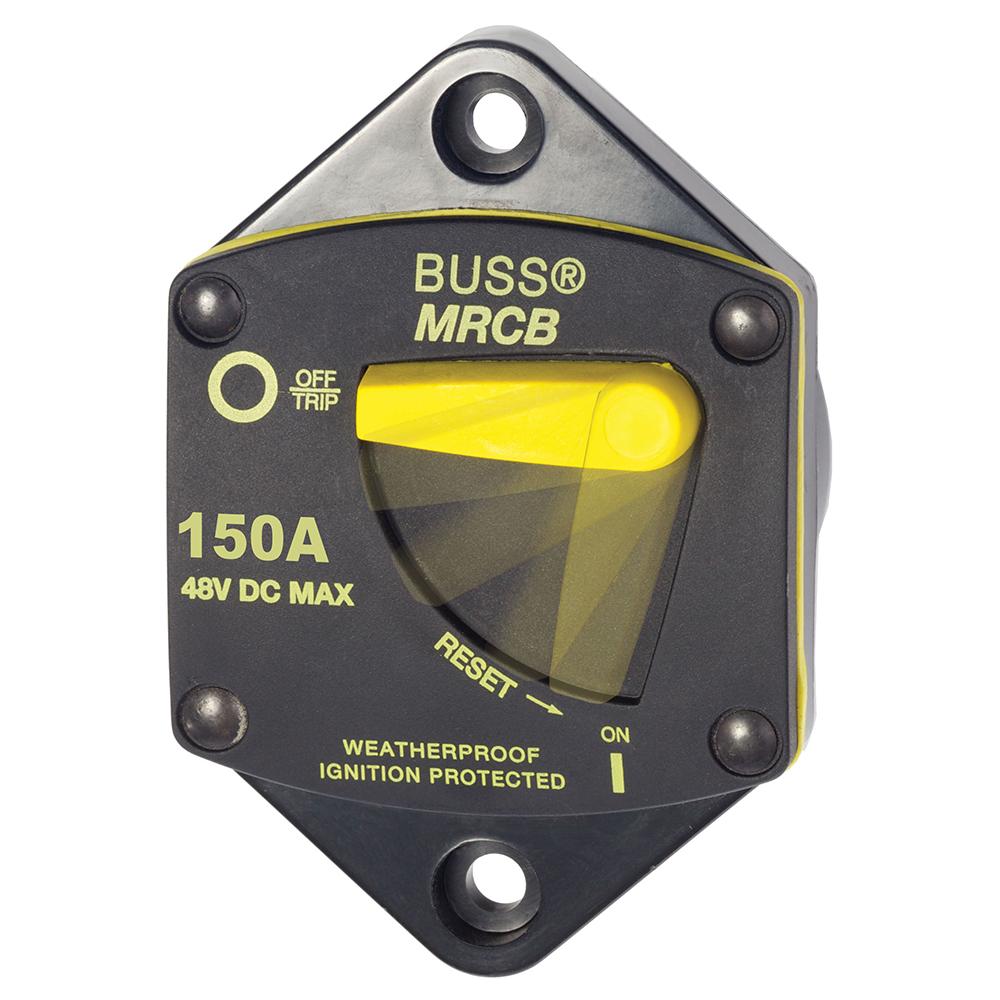

150 Amp Circuit Breaker

PN: 7048

Features:

• Combines switching and circuit protection into a single device

• All components meet SAE J1171 external ignition protection requirements

• Clear, single lever operation

• "Trip Free" design cannot be held "ON" during fault current condition

• Waterproof

• Recessed mounting holes for clean appearance

• Self-trimming case eliminates the need for mounting panels or trim bezels

• Round case permits easy installation with standard sized hole saw

• Large clearance around terminal studs accept heavy gauge wire lugs

• Robust 5/16 terminals provide high torque connections

• Large lever with vertical/horizontal orientation provides indication of trip status

• Ignition protected - safe for installation aboard gasoline powered boats

Specifications
Circuit Breaker Class:	Type III - Switchable / Manual Reset - Trip Free
Type:	Thermally Responsive Bi-Metal Blade
Case Material:	Thermoset Polyester
Voltage Rating:	48 Volts DC Maximum
Interrupt Rating:	5,000 Amperes @12 Volts DC
	3,000 Amperes @24 Volts DC
	1,500 Amperes @42 Volts DC
Operating Temperature Range:	-25C to +82C
