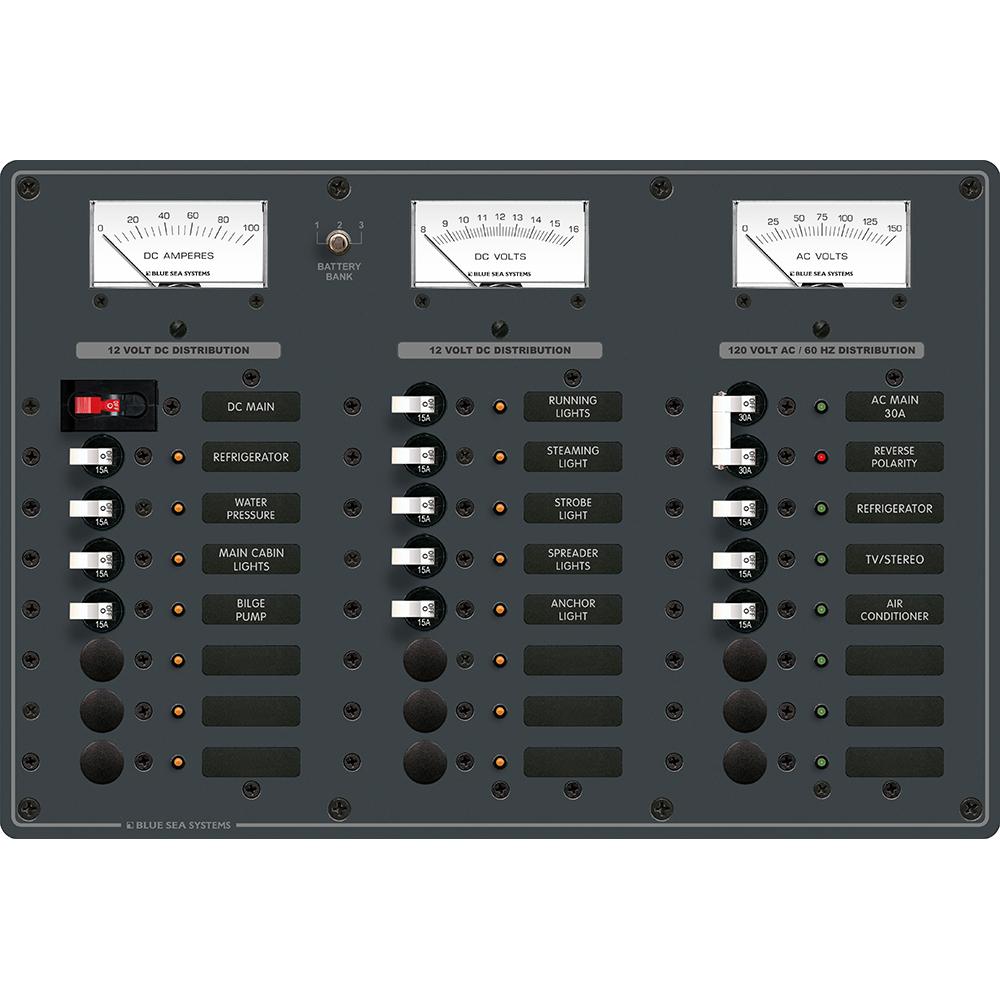

Blue Sea 8084 AC Main +6 Positions/DC Main +15 Positions Toggle Circuit Breaker Panel - White Switches - 8084

SKU: PV000379
$1,339.52
This product could earn you points
Learn more about PartsVu rewards
Free Shipping Over $99.00

Description

8084 AC Main +6 Positions/DC Main +15 Positions Toggle Circuit Breaker Panel - White Switches

Features:

  • Includes set of 30 common AC and 30 common DC labels
  • All AC and DC buses installed, fully pre-wired
  • Label backlighting pre-installed
  • All LEDs installed
  • Maximum panel Amperage: 100 Amperes DC / 50 Amperes AC

AC Features:

  • Red reverse polarity indicating LED
  • Ready for installation of optional 4029 AC Isolation Cover
  • 9353, 0-150 Volt AC Voltmeter

DC Features:

  • 100 Amp C-Series circuit breaker provides main circuit protection and switching for DC branch circuits
  • 8003, 8-16 Volt DC Voltmeter
  • 8017, 0-100 Amp DC Ammeter
  • Owner upgradeable to 24 Volts with 8240, 18-32 Volt DC Voltmeter

Specifications:

  • AC Positions: Main +6
  • DC Positions: Main +15
  • 120 Volts AC
  • 12 Volts DC
  • (1) 30A - (3) 15A AC Circuit Breakers
  • (1) 100A - (9) 15A DC Circuit Breakers

*Combined AC/DC panels require a AC Insulating Cover to meet ABYC Standards
