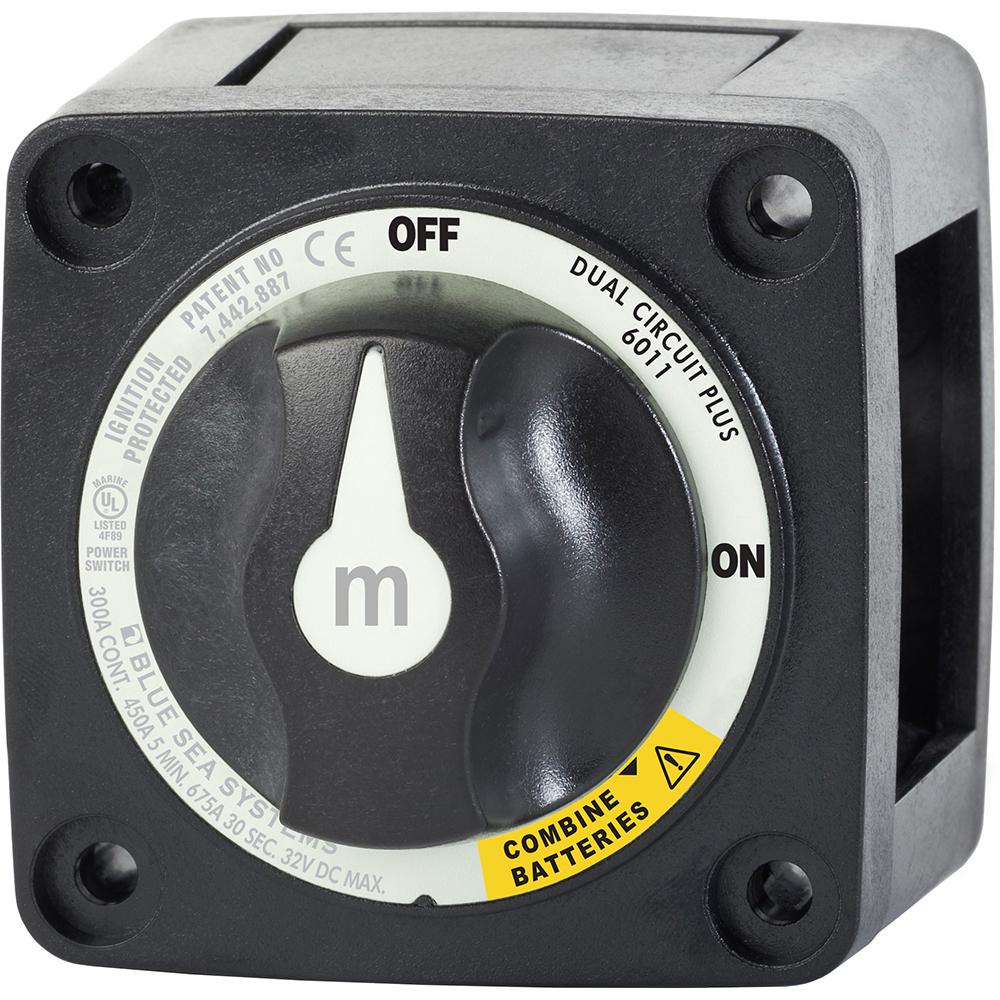

Blue Sea 6011200 m-Series Battery Switch Dual Circuit Plus - Black - 6011200
Blue Sea 6011200 m-Series Battery Switch Dual Circuit Plus - Black - 6011200
Blue Sea 6011200 m-Series Battery Switch Dual Circuit Plus - Black - 6011200 is backordered and will ship as soon as it is back in stock.
Learn more about PartsVu rewards
Free Shipping Over $99
Orders $99 or more ship free within the contiguous U.S. May not apply to engines or oversized orders.
Learn MoreQuick & Easy Returns
We accept returns on most items for 45 days— with no restocking fees.
Learn MoreReady to Serve
Our top priority is your ultimate satisfaction, and to get you back to boating as soon as possible.
Contact a Parts Pro
Blue Sea 6011200 m-Series Battery Switch Dual Circuit Plus - Black ...
Description
Description
Simultaneously switches two isolated battery banks or combines battery banks to all loads.
Make before break contact design allows switching between battery banks without power interruption.
Switch Type: Dual Circuit Plus
Color: Black
Switch Positions: 3
Battery Combine: Yes
Alternator Field Disconnect: No
Maximum Voltage: 32V DC
Continuous Rating : 300A
Intermittent Rating : 450A (5 min)
Cranking Rating 10 sec: 1000A
Cranking Rating 1 min: 650A
Battery Inputs: 2
Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
Cable Size to Meet Ratings: 4/0 AWG (120mm²)
Mounting Holes: Accept #10 Screw
Terminal Stud Size: 3/8"-16 (M10)
Terminal Stud Torque: 120 in-lb (13.56 Nm)
Weight: 0.80lb (0.36 kg)
