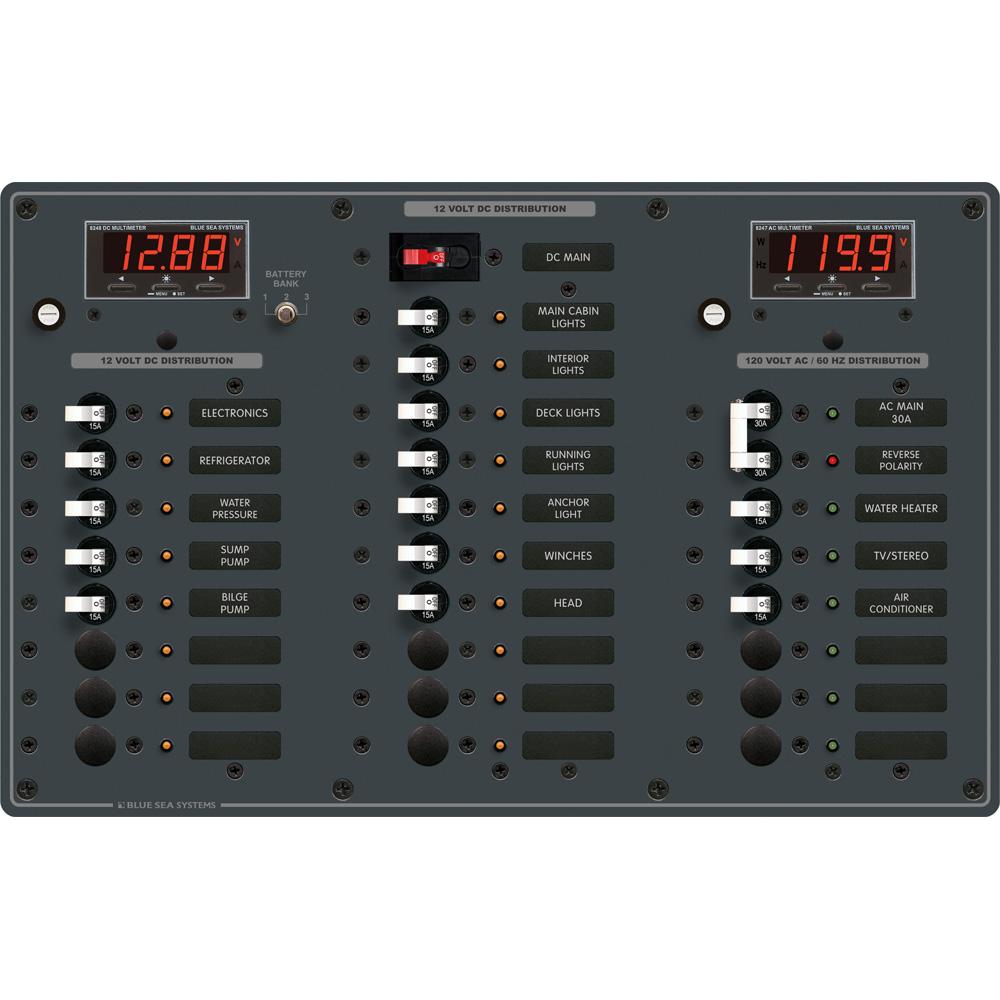

AC Main + 6 Positions / DC Main + 18 Positions

Installed AC Breakers

(1) 30A

(3) 15A

(1) 8247 AC Digital Multimeter w/ Alarm

Installed DC Breakers

(1) 100A Main

(12) 15A

(1) 8248 DC Digital Multimeter w/ Alarm

• 120V AC

• 12/24V DC

• All AC and DC buses installed and fully pre-wired

• Label backlighting pre-installed

• ON - indicating LEDs installed in all circuit positions

• 100 Ampere C-Series Toggle Circuit Breaker provides main circuit protection and switching for DC branch

• Maximum panel amperage - 100 Amperes AC, 50 Amperes DCMIL-C5541C or equivalent immersion undercoating for lifetime corrosion resistance

• Two-part polyurethane slate gray finish

• Heavy 1/8" aluminum 5052 alloy

• Detailed installation instructions and cutout template included

• Countersunk mounting holes throughout

• Includes set of 60 common AC and DC Large Format Labels

• Over 500 individual labels available
