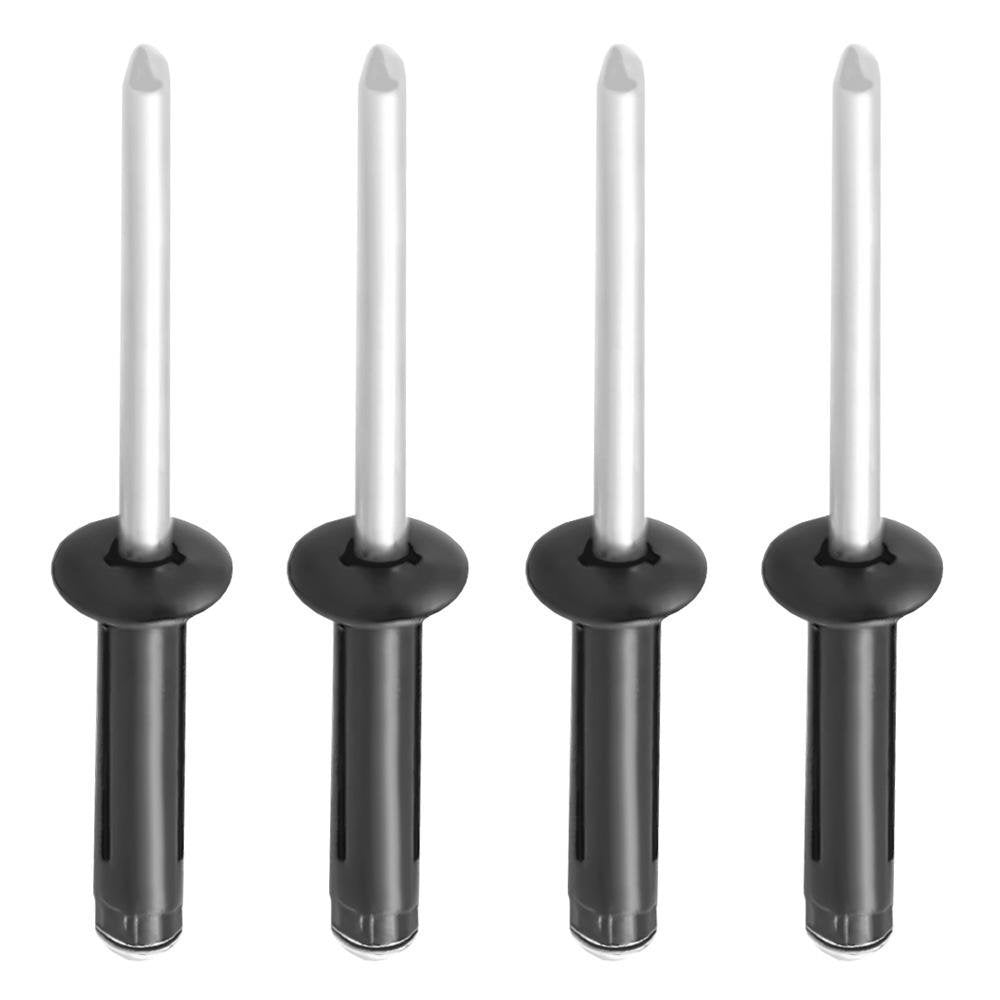

RAM Mount - Mari-Rivet Aluminum Pop Rivets - 4 Pack - RAM-MARI-RIVET-4U

The RAM-MARI-RIVET-4U consists of (4 qty) aluminum 1/8" pop rivets for blind hole mounting.

Features:

• Grip Thickness - 1/16" to 1/4"
• Weight - 0.04 lbs.

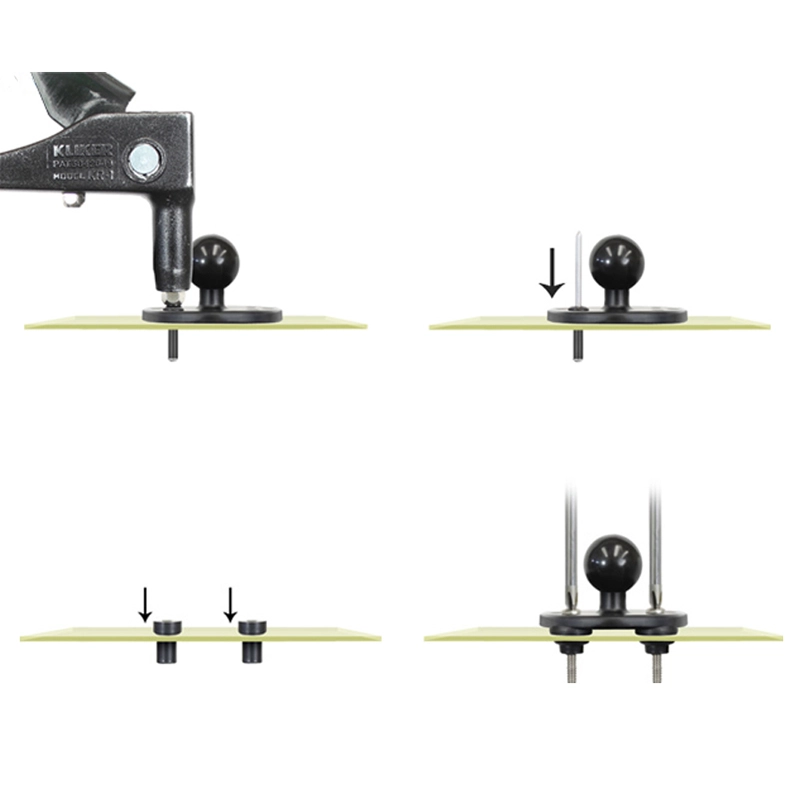

Installation Instructions:

1. Locate RAM base to desired mounting location, drill holes with 7/32" drill.
2. Place Mari-Rivet body all the way through RAM base and pre-drilled 7/32" holes until flange is firmly secured against mounting surface.
3. Insert rivet gun over mandrel head.
4. Clamp rivet gun; this will initiate the jaws to retract, extracting the mandrel, which pulls the mandrel head into the rivet body setting the rivet. At a predetermined tensile load, the mandrel breaks from its head and is discarded.
