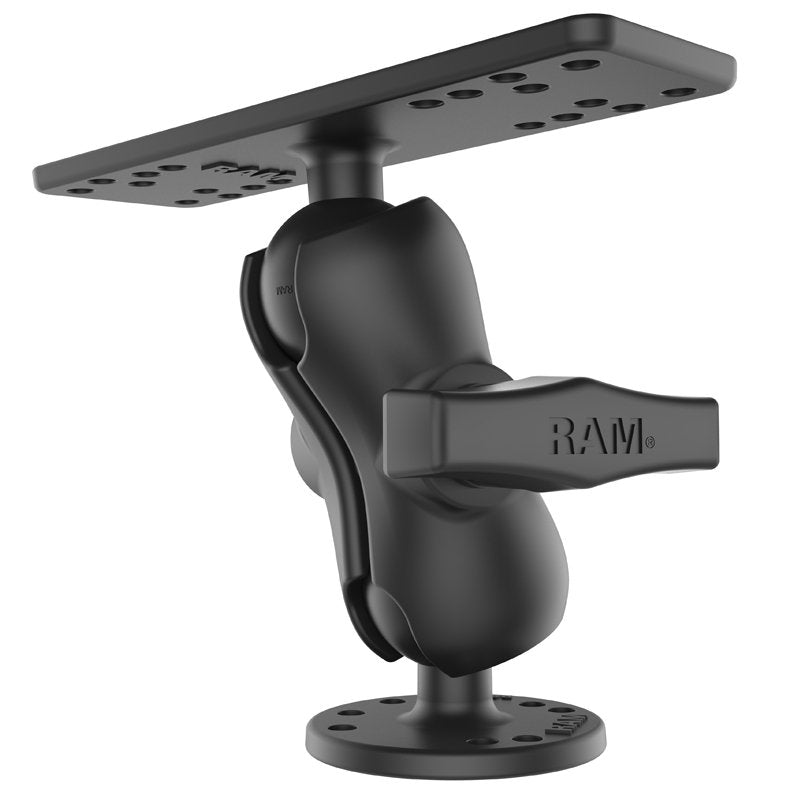

RAM Mount - Marine Electronics Mount Short Arm Gimbal Bracket - RAM-111U-B

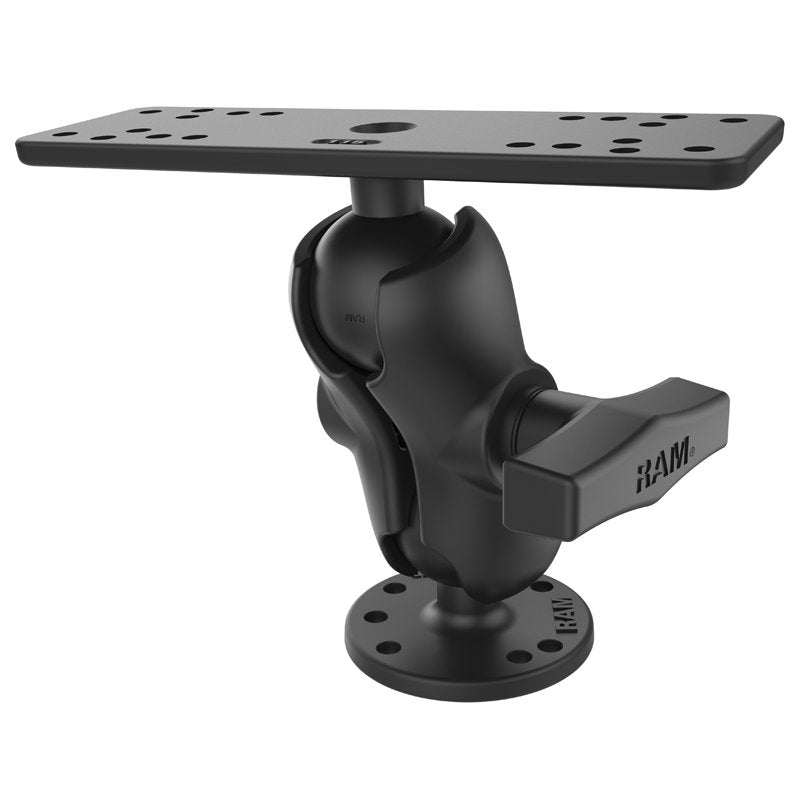

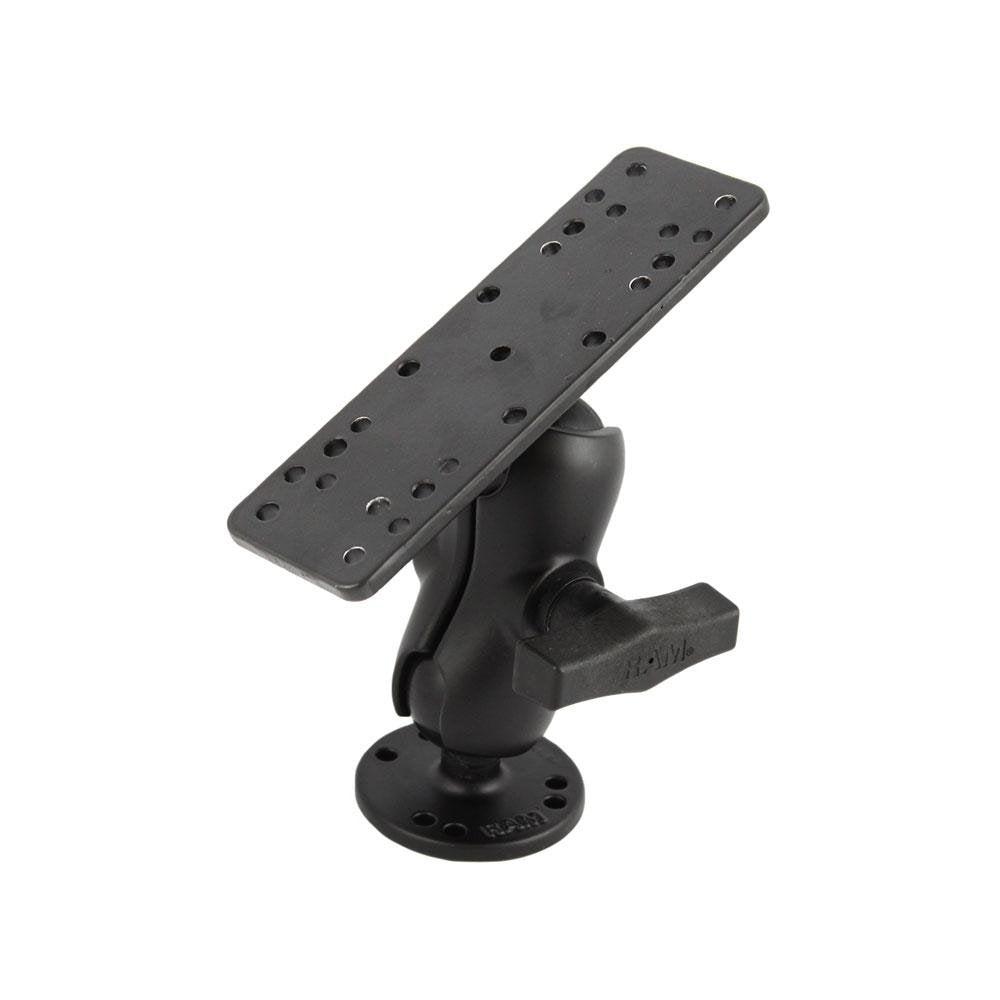

The RAM-111U-B consists of a 2.5" diameter round base that contains the universal AMPs hole pattern, SHORT LENGTH double socket arm and 6.25" x 2" rectangle base. The rectangle base contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.

Features:

• Complete flat surface, drill-down mounting solution with an overall height of 5.225"

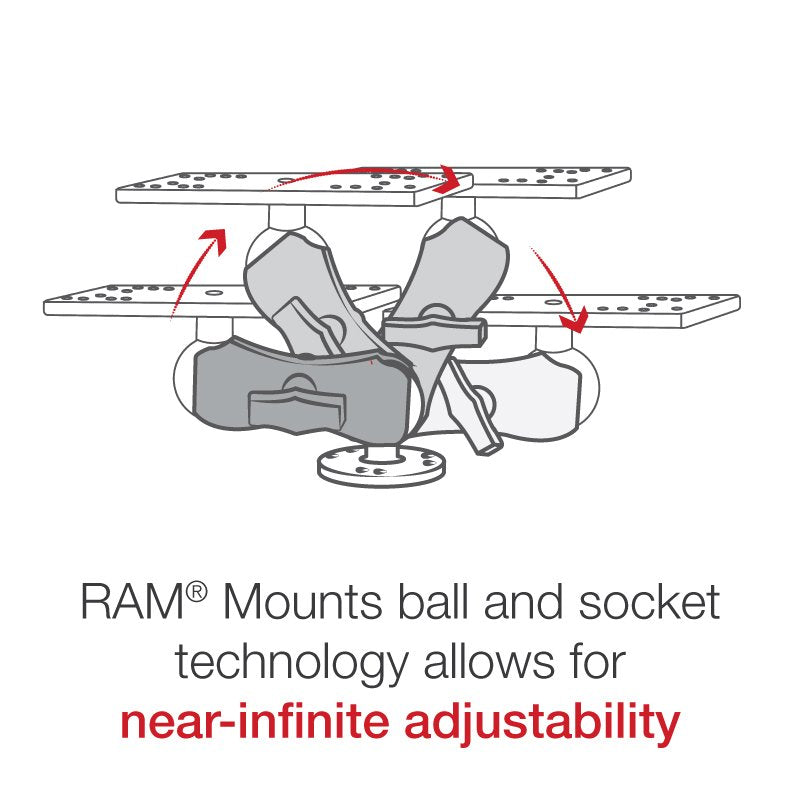

• RAM Mounts ball and socket technology allows for near-infinite adjustability
• Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
• Backed by a lifetime warranty

Compatible Devices:

• Garmin Fishfinders/Chartplotters
• Humminbird Fishfinders/Chartplotters
• Lowrance Fishfinders/Chartplotters
• Raymarine Fishfinders/Chartplotters

Specifications:

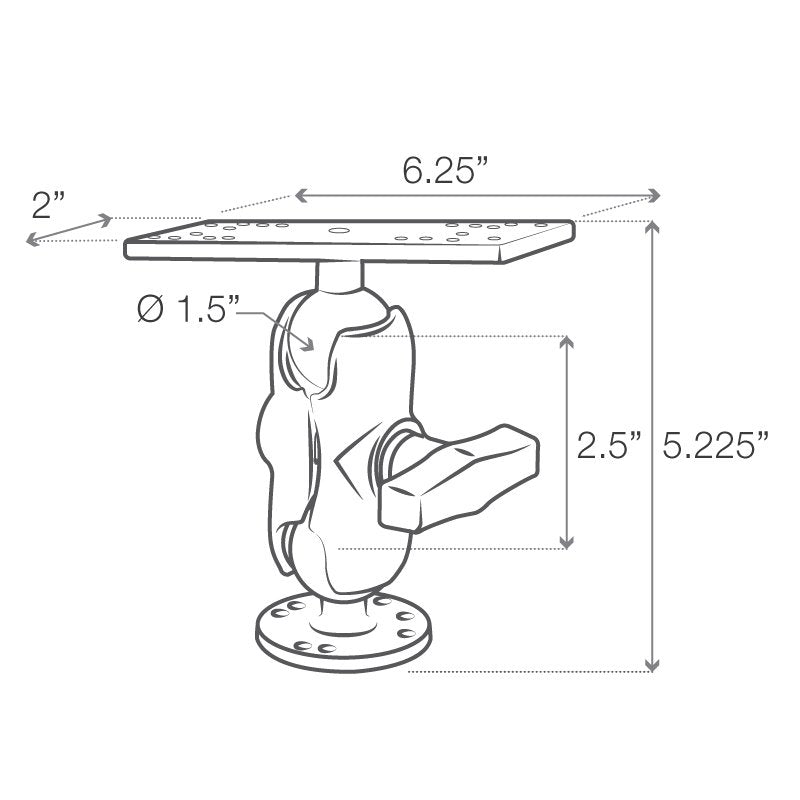

• Product Dimensions - Overall Height: 5.225"
• Socket-to-Socket Length - 2.5"
  • Hole Pattern:
  • 4-Hole AMPS: 1.181" x 1.496"
  • 3-Hole 120-Degree: 1.812" Diameter
  • See Drawing
• Plate Size - Rectangular Plate: 6.25" x 2", Round Plate: 2.5" Diameter
• Ball Size - C Size (1.5")
• Weight Capacity - Standard Use: 4 lbs, Heavy-Duty Use: 3 lbs
• Materials - Marine-grade aluminum
• Packaging Type - Poly Bag
• Weight - 1.08 lbs.
• Additional Information:
  • The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
