RAM Mount - RAM No-Drill Mount for '97-16 Ford F-250 - F750 + More - RAM-VB-185-SW2

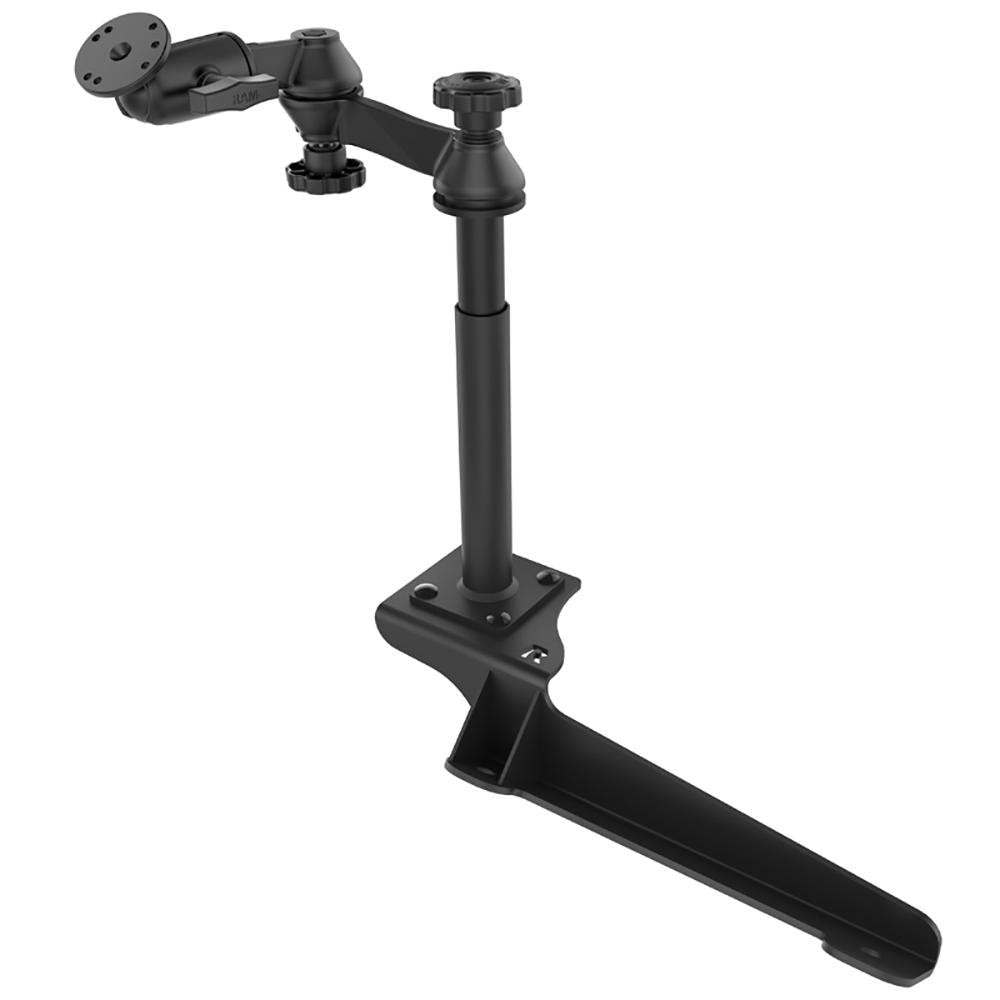

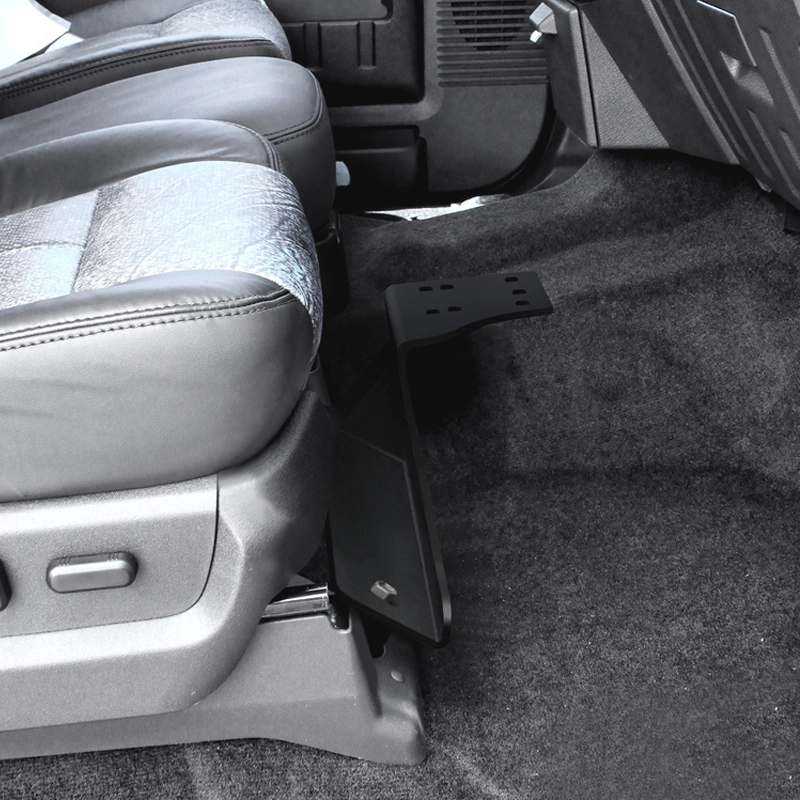

This RAM No-Drill mounting system installs quickly and easily into a range of Ford F-Series and Ford Excursion vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12" to 18". Dual swing arms provide articulation and 12" of reach for passenger and driver access to the mounted device. The round ball base attached to the end of the swing arm supports a variety of tablet and laptop holders, while RAM rubber ball and socket technology provides additional adjustability as well as shock and vibration isolation.

Features:

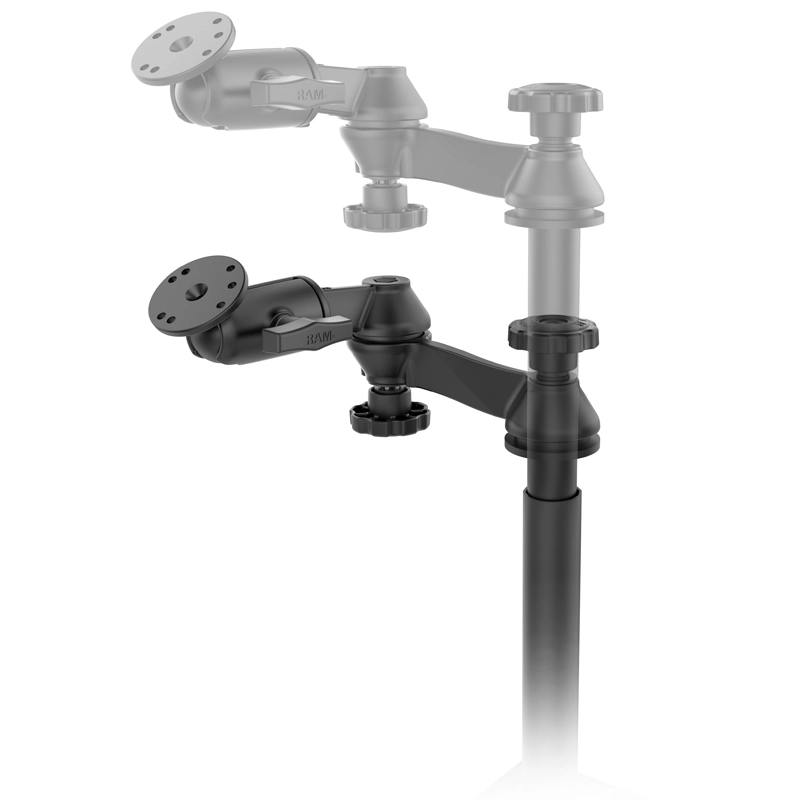

• RAM No-Drill base offers low-profile mounting; telescoping pole allows for height adjustments

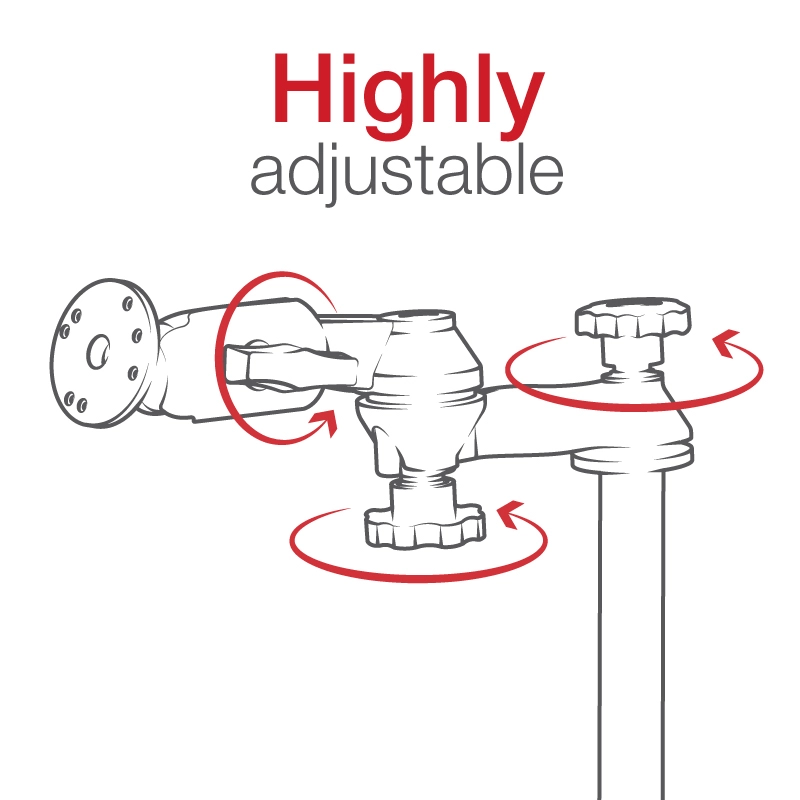

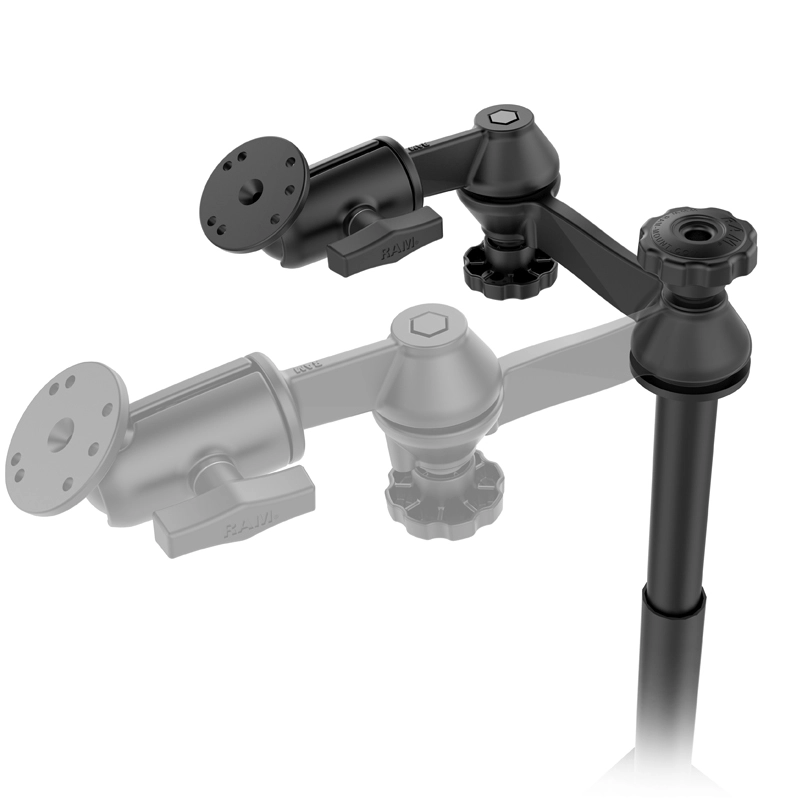

• Dual articulating swing arm allows for ideal device placement; compatible with a variety of tablet and laptop holders
• Made of powder-coated steel and marine-grade aluminum
• Backed by a lifetime warranty
• Plate Size: 2.5" Diameter
• Ball/Socket Size: C Size (1.5")
• Materials: Powder coated steel, Marine grade-aluminum

Hardware Included:

• Assembly Hardware
• 2 x M12-1.75 x 100mm Hex Bolts
• 2 x M12-1.75 x 60mm Hex Bolts
• 2 x M12 Lock Washers
• 2 x 3/8" Stand-Offs
• 2 x 1" Stand-Offs

Hole Pattern:

• 4-Hole AMPS: 1.181" x 1.496"
• 3-Hole 120-Degree: 1.812" Diameter
• Seat Bolt Distance: 11.5" center to center
