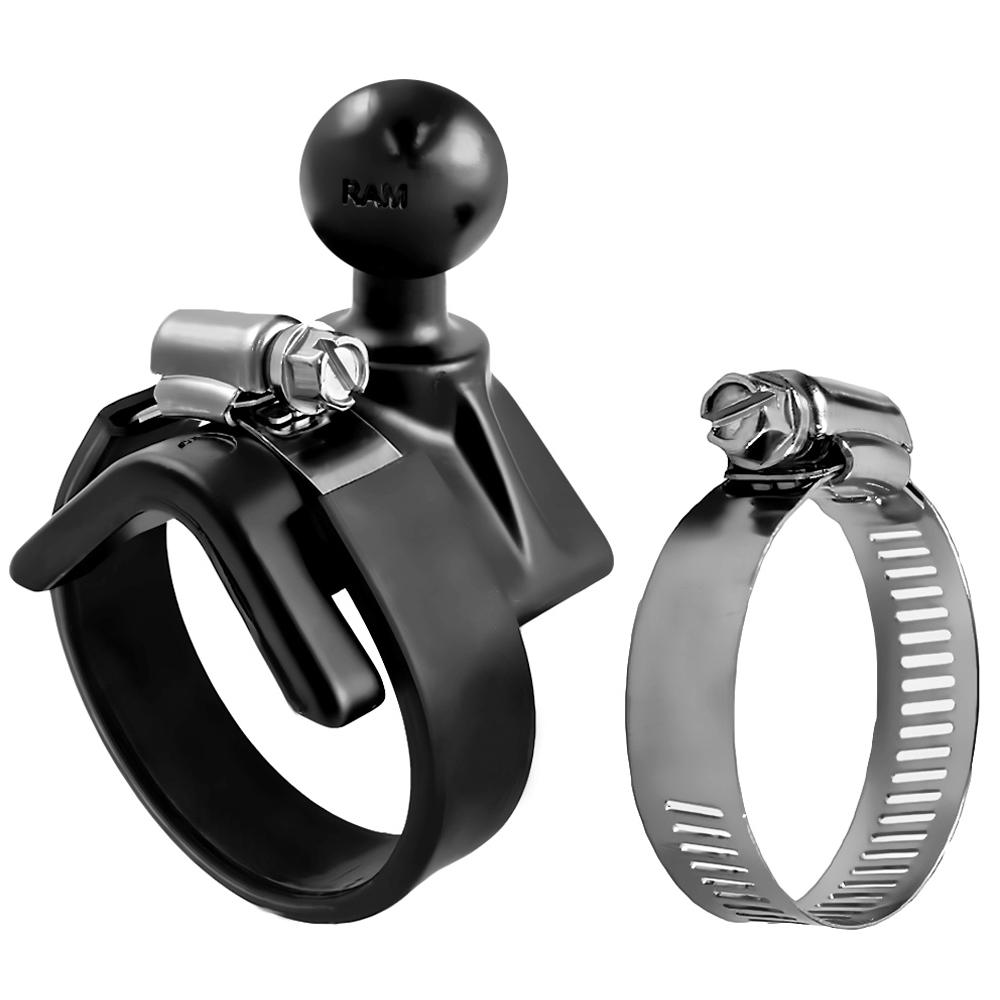

RAM Mount - V-Base Rail Yoke Clamp Mount - RAM-B-108BU

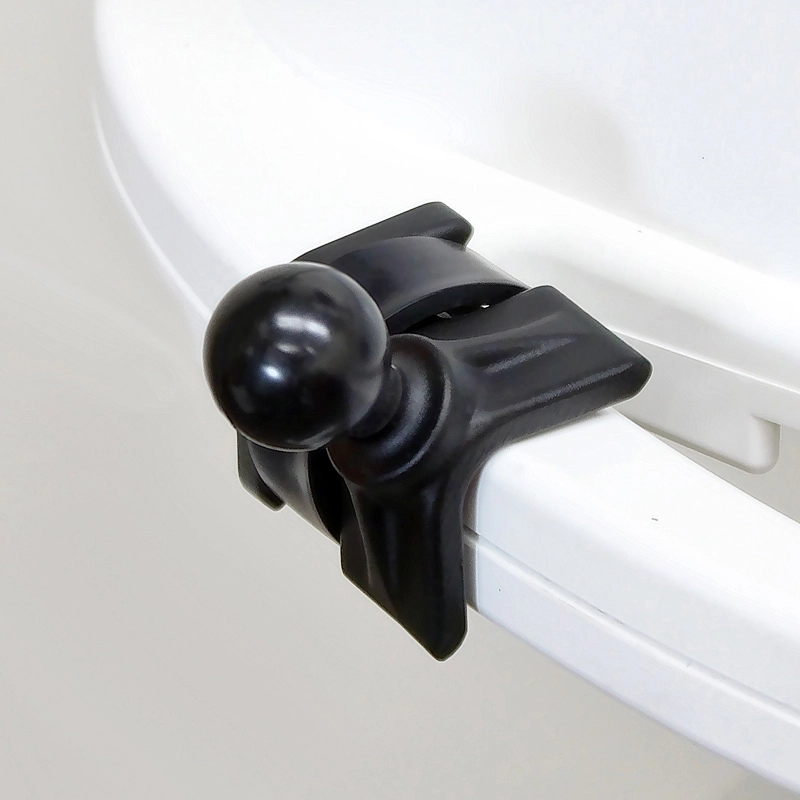

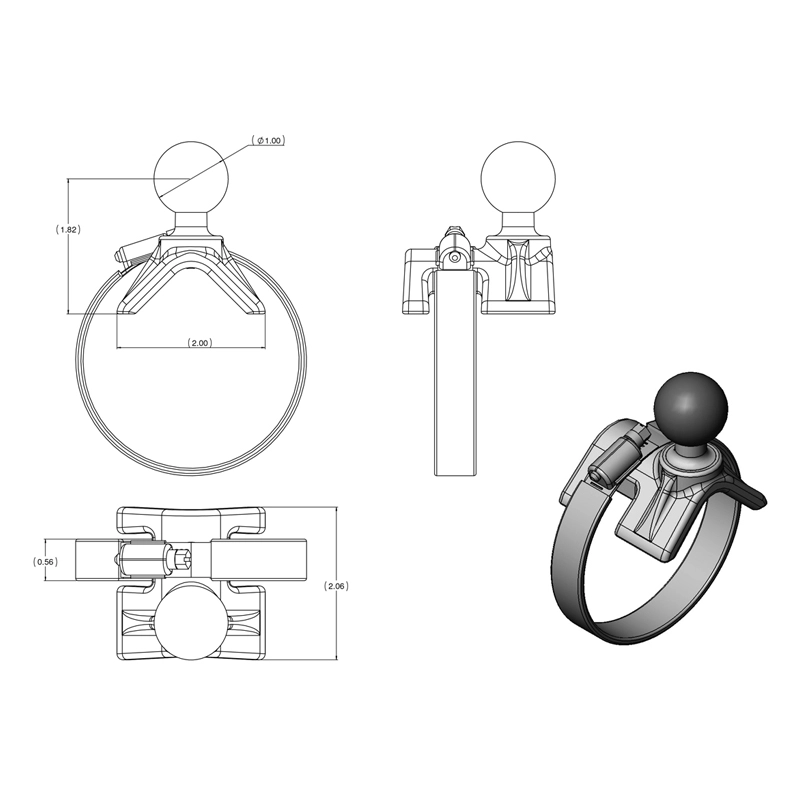

Accommodates rails from 1.0" to a maximum of 2.1" in diameter. To mount the RAM-B-108BU base, place the saddle shaped plate on the rail then wrap the metal clamp strap around the rail and plate. Tighten the screw knob on the metal strap with a screw driver until the strap has a firm hold on the rail. The RAM-B-108BU is an alternative mounting base for Breechcraft airplanes with a "throw over yoke".

Features:

• Material - Powder Coated Marine Grade Aluminum
• Ball Size - 1" Rubber Ball "B" Size

Included in Kit:

• 1 x QTY 6" long metal strap
• 1 x QTY 8" long metal strap
• 1 x QTY 5.5" rubber strip that supports the metal straps to avoiding scratching or marking of the rail

Note:

The "U" in the part number reflects product packaged in poly bag.
