Navico StructureScanHD Sonar Stainless Steel Thru-Hull Transducer (Pair) w/Y-Cable - 000-11460-001
SKU: PV010293
$1,975.00
Free Shipping!
This product could earn you points
Learn more about PartsVu rewards

Free Shipping Over $99


Orders $99 or more ship free within the contiguous U.S. May not apply to engines or oversized orders.

Learn More

Fast Shipping


In-stock orders ship the next day, from the warehouse closest to you.

Learn More

Quick & Easy Returns


We accept returns on most items for 45 days— with no restocking fees.

Learn More

Ready to Serve


Our top priority is your ultimate satisfaction, and to get you back to boating as soon as possible.

Contact a Parts Pro

Description

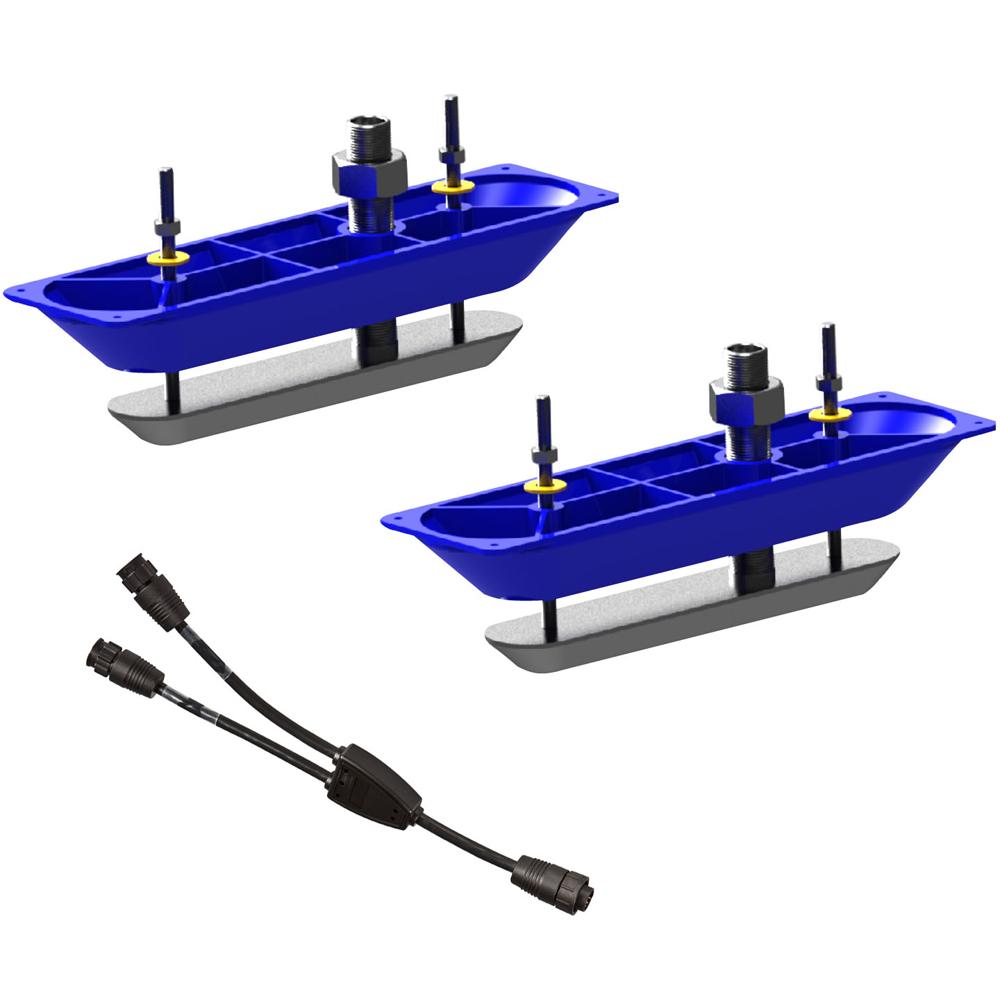

StructureScan™HD Sonar Stainless Steel Thru-Hull Transducer (Pair) w/Y-Cable

LSS-2 Though Hull Transducers

Thru-hull, Stainless Steel LSS-2 StructureScan HD transducers, deliver extreme target detail, bottom discrimination and bait and game fish separation at depths to 300'/92M and a wider range of 600'/183M side-to-side coverage. All StructureScan HD transducers are packed with an enhanced dual-frequency element array that operates at 455 kHz and 800 kHz.

These Stainless steel transducers from Airmar are available only from Navico exclusively for StructureScan HD and StructureScan systems. These sturdy, Stainless steel transducers are resistant to the electrical forces in the environment where it will be used. Each feature a low-profile design that minimizes drag; provide exclusive 3-channel beam, port and starboard SideScan plus DownScan Imaging™ technology; includes a high-performance fairing that will give you Structure performance at speeds up to 35 mph; and feature a 30'/9M transducer cable.

Specifications:

  • Cable Length (Feet): 30'
  • Fairing Block Included: Yes
  • Frequency: 455/800
  • Mounting Style: Thru-Hull
  • Box Dimensions: 11"H x 13"W x 16"L WT: 13 lbs
  • UPC: 9420024128701
