Navico XSONIC Bronze HDI Transducer Thru Hull 9 Pin Connector 10M C...
Description
Description

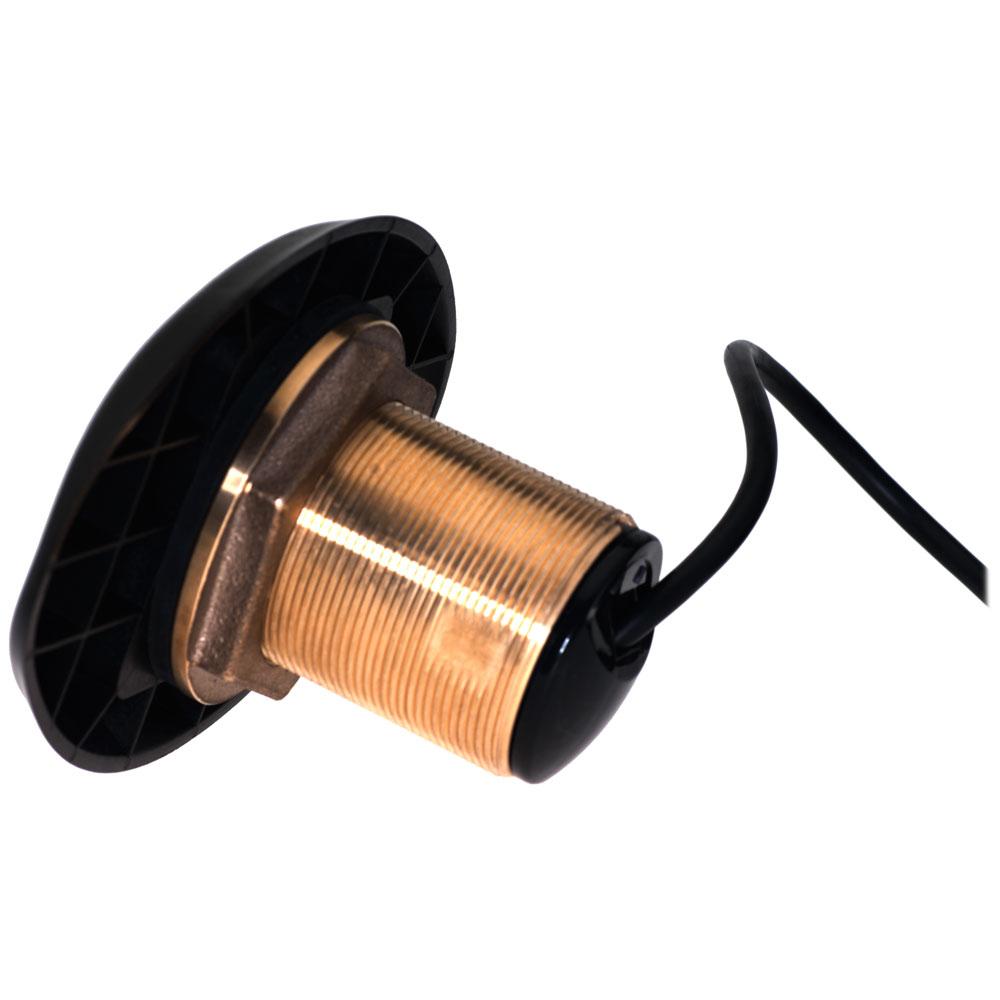

XSONIC Bronze 20 HDI Transducer Thru Hull 50/200 455/800 with 9 pin connector and 10M Cable
Bronze Hybrid Dual Imaging (HDI) tilted element thru hull transducer
- Provides 50/200kHz traditional frequencies PLUS 455/800kHz Down Scan Imaging plus temperature
- 20 degree tilt
- 10M Cable
- Beam Width: 50kHz @ 45, 200kHz @ 11 455kHz- Fore to aft 2.8, Port to starboard 56, 800kHz Fore to aft 1.6 Port to starboard 32
Specifications:
- Cable Length (Feet): 10M
- Fairing Block Included: No
- Frequency: 50/200/455/800
- Mounting Style: Thru-Hull
- Pins: 9
- Speed Included: No
- Temperature: Yes
- Box Dimensions: 4"H x 8"W x 10"L WT: 4.7 lbs
- UPC: 9420024162620
