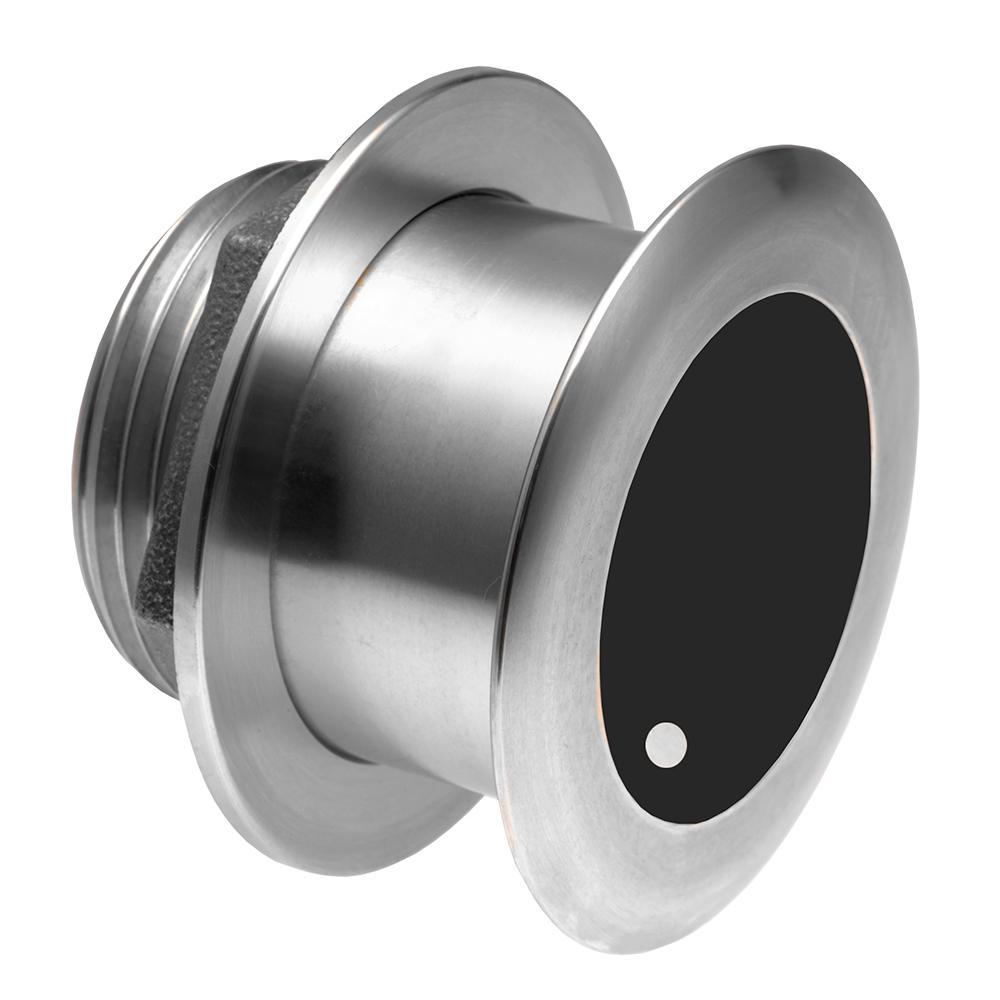

Navico XSONIC SS175H-W/20 Stainless Steel 1KW 20 Tilted Element Transducer - 9 Pin - 000-13782-001
Navico XSONIC SS175H-W/20 Stainless Steel 1KW 20 Tilted Element Transducer - 9 Pin - 000-13782-001
Navico XSONIC SS175H-W/20 Stainless Steel 1KW 20 Tilted Element Transducer - 9 Pin - 000-13782-001 is backordered and will ship as soon as it is back in stock.
Learn more about PartsVu rewards
Free Shipping Over $99
Orders $99 or more ship free within the contiguous U.S. May not apply to engines or oversized orders.
Learn MoreQuick & Easy Returns
We accept returns on most items for 45 days— with no restocking fees.
Learn MoreReady to Serve
Our top priority is your ultimate satisfaction, and to get you back to boating as soon as possible.
Contact a Parts Pro
Navico XSONIC SS175H-W/20 Stainless Steel 1KW 20 Tilted Element Tra...
Description
Description
XSONIC SS175H-W/20 Stainless Steel Chirp Transducer - 20 1KW Tilted Element - 9 Pin Connector
SS175H-W/20 CHIRP Transducers enable bottom detection down to 300m+ with 5 to 10 times greater detail and Resolution so precise it's possible to distinguish between individual bait Fish, game Fish, and underwater structures.
*This Transducer is designed for smaller boats up to 36 feet (11 m).
Features
- Frequencies: 130-210 kHz @ 25 constant beamwidth
- 16 - 25 Deadrise
- 300m+ Usable Depth
- 6m+ or large Boat size with Steel or Aluminum hulls
- Depth & Temperature
- CHIRP Technology
- High-Performance
- Stainless Steel
- Exclusive Transducer ID
- 9-Pin Connector, 10M Cable
Specifications:
- Cable Length (Feet): 10M
- Fairing Block Included: No
- Mounting Style: Thru-Hull
- Pins: 9
- Speed Included: No
- Temperature: Yes
- Box Dimensions: 8"H x 11"W x 12"L WT: 10.5 lbs
- UPC: 9420024161937
