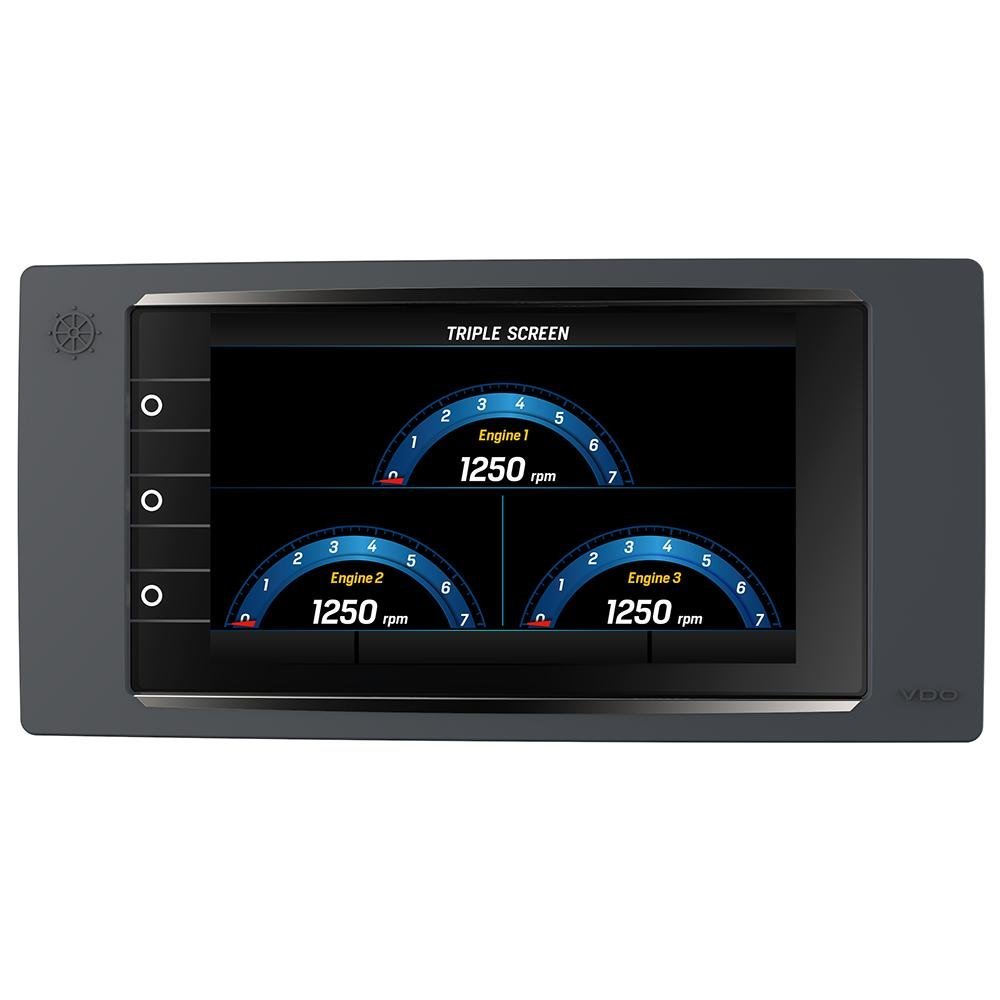

7" AcquaLink Multifunction TFT Display - 12/24V - 800 x 480 Resolution - Black

AcquaLink multifunction TFT Displays are available in 4.3" and 7" sizes. The full 24 bit/16 m colors optically bonded displays feature transmissive layer technology for unprecedented and unsurpassed readability even in direct sunlight. The TFT Display shows a wide array of data received from the AcquaLink NavBox or NMEA 2000. Users can customize up to 40 different data pages with single, double, treble or quad grid layouts.

TFT Displays can be daisy-chained with other AcquaLink gauges, displays or NavControls using the unique VDO Marine Bus or directly connected to the NMEA 2000 backbone (optional adapter cable required) for simple installation on any yacht.

7" TFTs are equipped with capacitive multi touch screens to slide between pages whereas 4.3" displays require the use of a NavControl unit for data input and operation.

Features:

• 1x plug with 2x Video Input
• 2x VDO Marine Bus connectors
• Operating temperature range -20C/+70C
• Protection level front and rear IPX9K with connectors plugged

Includes:

• TFT Display, Bezel, Silicone Cover, Mounting Screws, Drilling Template, Installation Instructions, Safety Instructions
