Description
Description
RAM MOUNTS - RAM MARINE ELECTRONIC MOUNTS FOR EAGLE - HUMMINBIRD & LOWRANCE - RAM107

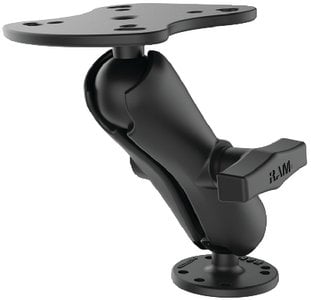

The RAM-107U consists of a double socket arm, 2.5" diameter round base with the universal AMPS hole pattern and connecting Humminbird/Apelco marine adapter base. The mount is designed with a RAM 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; thus allowing for almost infinite adjustment and perfect viewing angles. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.
Features:
- Product Dimensions - Overall Height: 7.35"
- Socket-to-Socket Length - 4.66"
- Hole Pattern:
- 4-Hole AMPS: 1.181" x 1.496"
- 3-Hole 120-Degree: 1.812" Diameter

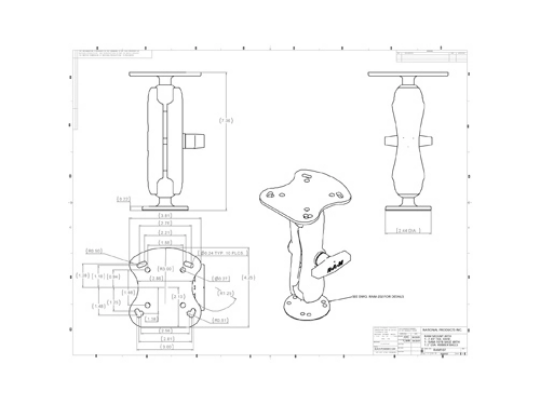

- See Drawing
- Plate Size:
- Top Plate: 4.25" x 3.81"
- Round Plate: 2.5" Diameter
- Ball/Socket Size - C Size (1.5")
- Weight Capacity:
- Standard Use: 4 lbs
- Heavy-Duty Use: 3 lbs
- Materials - Marine-grade aluminum
- Packaging Type - Poly Bag
- Weight - 1.3 lbs.
