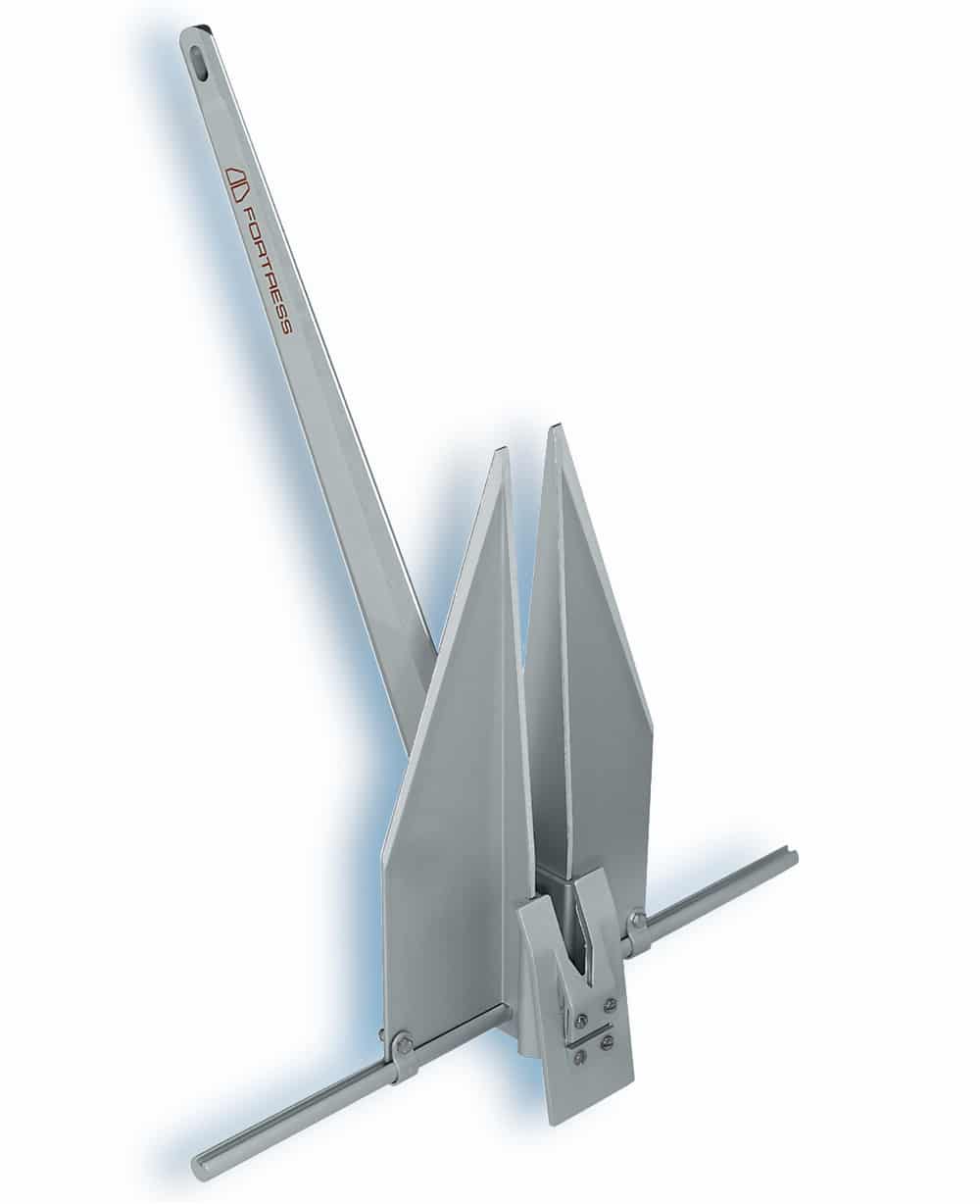

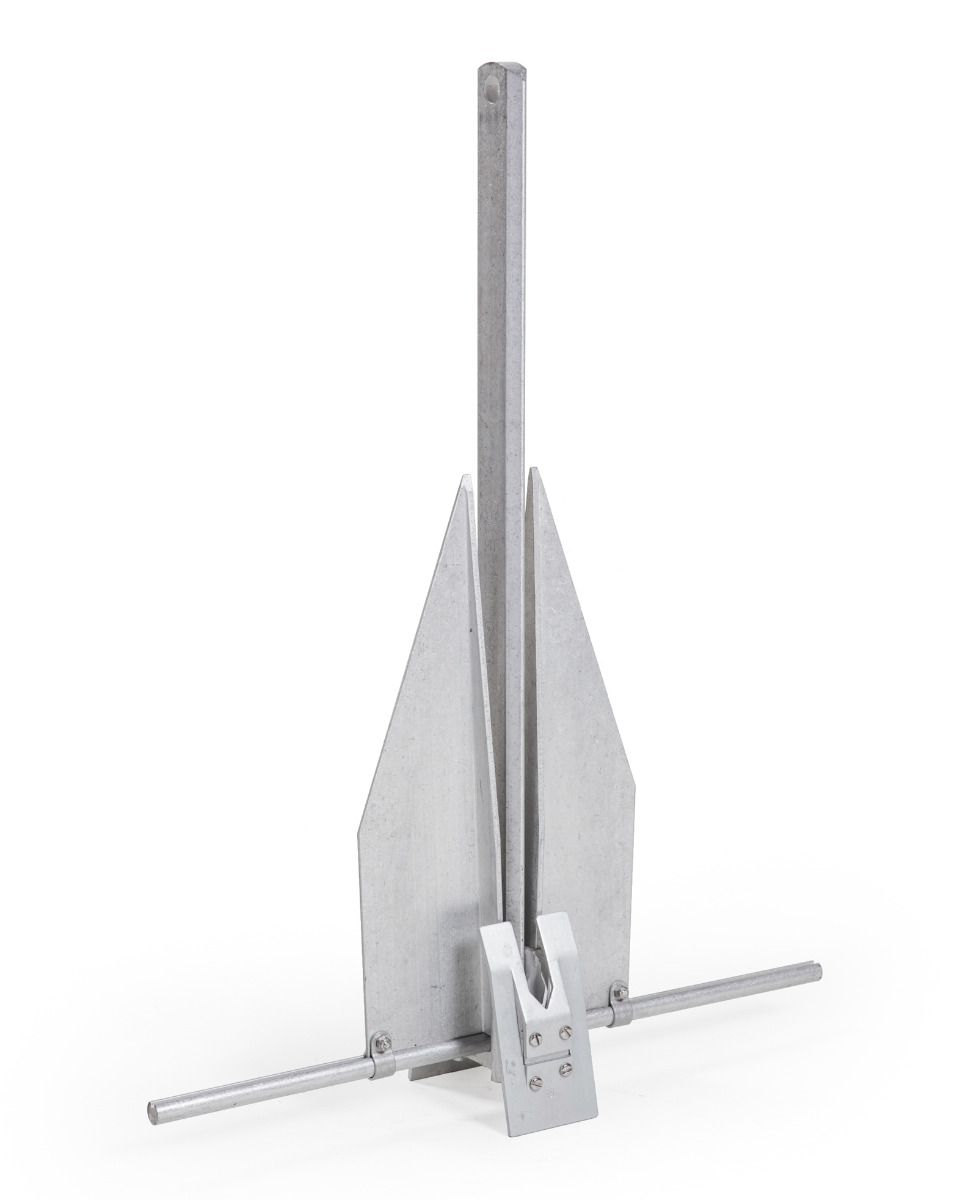

Fortress FX-16 Complete Anchoring System - FX-16-AS - 10 lb - 33' to 38'

Whether used as a primary anchor or conveniently-stowed backup, Fortress Marine Anchors are well-known for their exceptional holding capability.

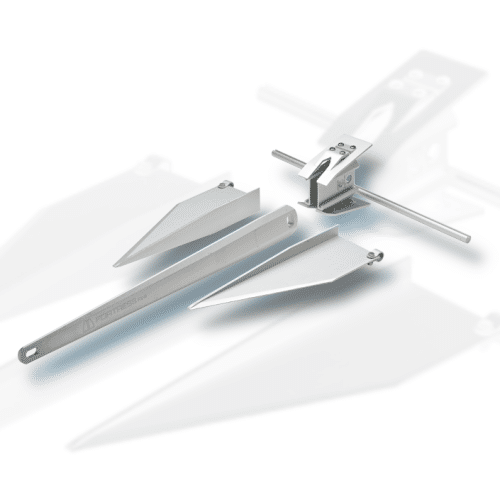

This Complete Anchoring Systems has it all.  Two large, precision-machined and sharpened flukes ensure that Fortress anchors set fast and dig deep.  Unlike others, they’re easily adjusted from a 32° angle for use in sand and clay to 45° for soft mud.  Unique Mud Palms are included to optimize setting performance in problem soft bottoms.

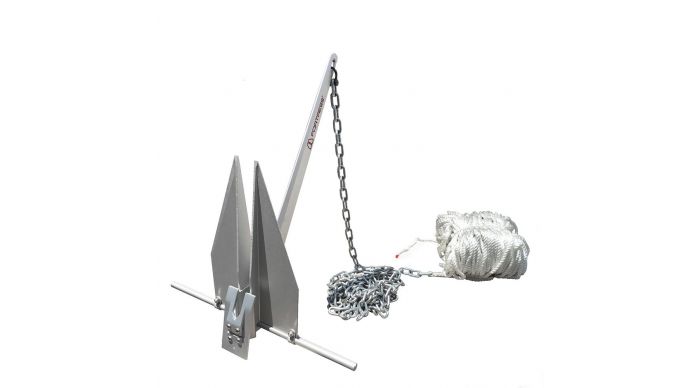

Also included is 15′ of 1/4″ G-30 chain that is spliced to 250′ of shock- absorbing 3/8″ three-strand nylon rope and a 1/4″ shackle.

*For boats up to 38' (12 M)

*Made in the U.S.A.

In the box:

• Fortress FX-16 anchor
• 1/4" Shackle
• 15' of G-30 1/4" Chain
• 250' of 3/8" three-strand nylon rope
• Safe anchoring guide

*Sold as an Individual

Boat Length	ft	16'-27'	28'-32'	33'-38'	39'-45'	46'-51'	52'-58'	59'-68'	69'-89'	90'-150'
	m	5-8m	8-10m	10-12m	12-14m	14-15m	16-18m	18-21m	21-27.1m	27.4-46m
Fortress Model		FX-7	FX-11	FX-16	FX-23	FX37	FX-55	FX-85	FX-115	FX-125
Weight	lb (kg)	4 (1.8)	7 (3.2)	10 (4.5)	15 (6.8)	21 (9.5)	32 (14.4)	47 (21.2)	60 (27.2)	69 (31.1)
Replaces Steel Anchors	lb	6-9	10-13	14-18	19-28	33-50	50-65	70-90	90-100	100-170
	kg	3-4	5-6	6-8	9-13	15-23	23-29	32-41	42-44	45-77
				HOLDING POWER
Working Load	lb	700	900	1,250	2,000	3,000	4,000	5,250	6,000	6,750
	kg	318	408	567	907	1,361	1,814	2,381	2,721	3,062
32° Hard Sanding Holding	lb	2,800	3,600	5,000	8,000	12,000	16,000	21,000	24,000	27,000
	kg	1,270	1,633	2,268	3,629	5,443	7,258	9,526	10,886	12,247
45° Soft Mud Holding	lb	840	1,080	1,500	2,400	3,600	4,800	6,300	7,200	8,100
	kg	381	490	680	1,089	1,633	2,177	2,858	3,265	3,674
32° Soft Mud Holding	lb	420	540	750	1,200	1,800	2,400	3,150	3,600	4,050
	kg	191	245	340	544	816	1,089	1,429	1,633	1,837
				DIMENSIONS
"A" Shank Length	in (mm)	24" (610)	27" (686)	31" (787)	36" (914)	40" (1,016)	46" (1,168)	51" (1,295)	51" (1295)	56" (1,422)
"B" Fluke Length	in (mm)	14" (356)	16" (406)	18" (457)	21" (533)	24" (610)	27" (686)	30" (762)	33" (838)	33" (838)
"C" Stock Length	in (mm)	19" (483)	22" (559)	25" (635)	29" (737)	32" (813)	37" (940)	41" (1,041)	45" (1,143)	45" (1,143)
				SUPPORT HARDWARE
Proof Coil Chain	in (mm)	3/16" (5)	1/4" (6)	5/16" (8)	3/8" (9)	3/8" (9)	1/2" (13)	1/2" (13)	1/2" (13)	1/2" (13)
Nylon Rope **	in (mm)	3/8" (9)	3/8" (9)	1/2" (13)	5/8" (16)	3/4" (19)	7/8" (22)	1" (25)	1 1/4" (32)	1 1/4" (32)
Shackle Size	in (mm)	1/4" (6)	1/4" (6)	5/16" (8)	3/8" (10)	7/16" (12)	1/2" (12)	5/8" (16)	5/8" (16)	5/8" (16)
