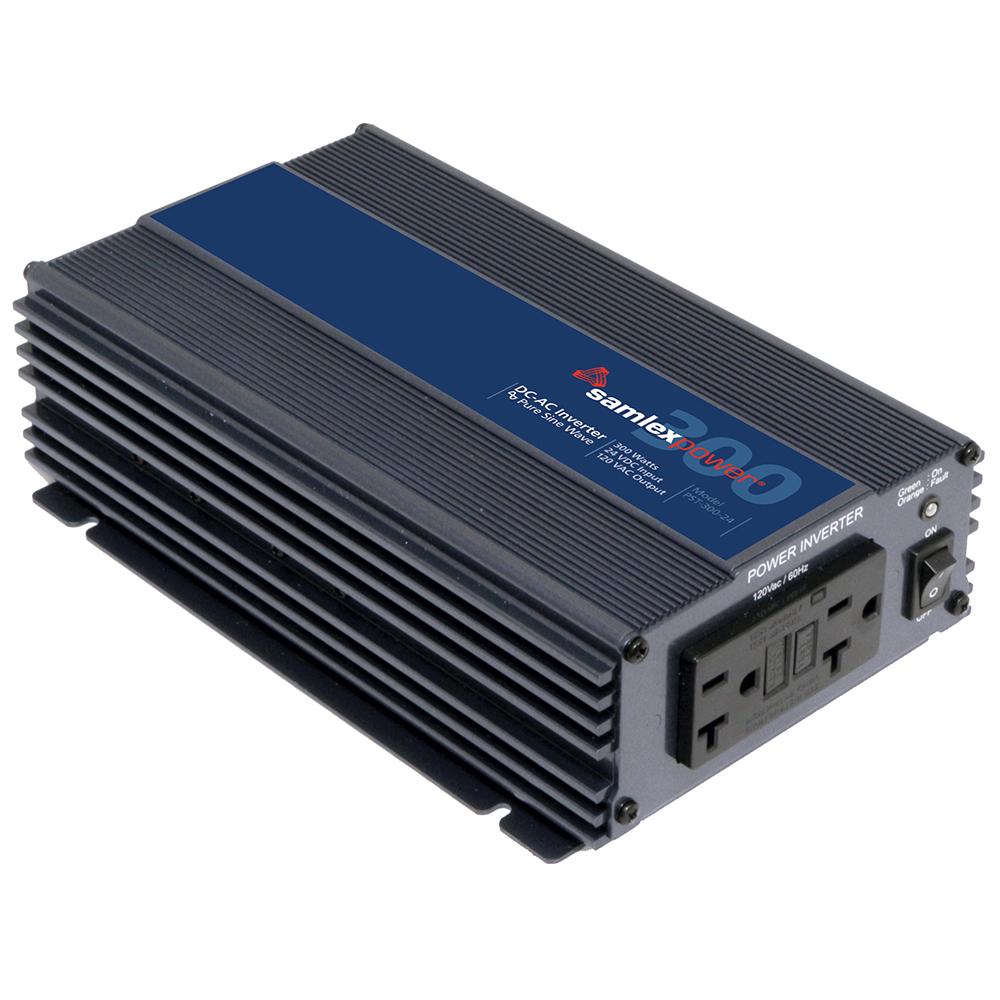

300W Pure Sine Wave Inverter - 24V

PST Series (120 VAC)

This high efficiency DC-AC inverter converts 24 Volts DC to 300 Watts of pure sine-wave AC power at 120 Volts, 60 Hz. The unit comes with detachable cable with 12V plug adaptor and cable with battery clamps. Features include overload protection, low battery alarm / shut down, low idle power draw of less than 0.5 Amps. AC power is available from a NEMA-20R GFCI duplex outlet on the front panel. Safety certified to UL standards.

Features:

• High efficiency
• Temperature controlled cooling fan - reduces energy consumption
• Low interference Wide operating DC input range: 21.0 - 33.0 VDC
• LED indicators for power and protections
• Low idle power draw
• Dual GFCI protected AC outlets
• Commercial grade design suitable for heavy duty loads, long periods of continuous operation & for emergency back up
• UPC - Universal Protection Circuit: low voltage, over voltage, over temperature, over load and short circuit
• Detachable cable with 12V plug adapter
• Detachable cable with battery clamps
• Safety certified to UL standards, FCC compliant

Specifications:

• Input: 24 VC
• Output: 120 VAC
• Watts: 300
• Surge: 500 Watts
• Weight: 3.46 (lbs)
• Weight: 1.57 (kg)
• Dimensions: 6.1 x 9.69 x 2.58 (in)
• Dimensions: 155 x 246 x 65.5 (mm)
• Safety: ETL to UL Standard
• Warranty: 2 Year Limited

Applications:

• Service vehicles
• Mobile Offices
• Boats
• Recreation Vehicles, Camping
• Telecommunication
• Field work / Construction sites
• Solar power systems
• Emergency backup power
• Home electronics: TV, VCR, video games
• Computers, printers
