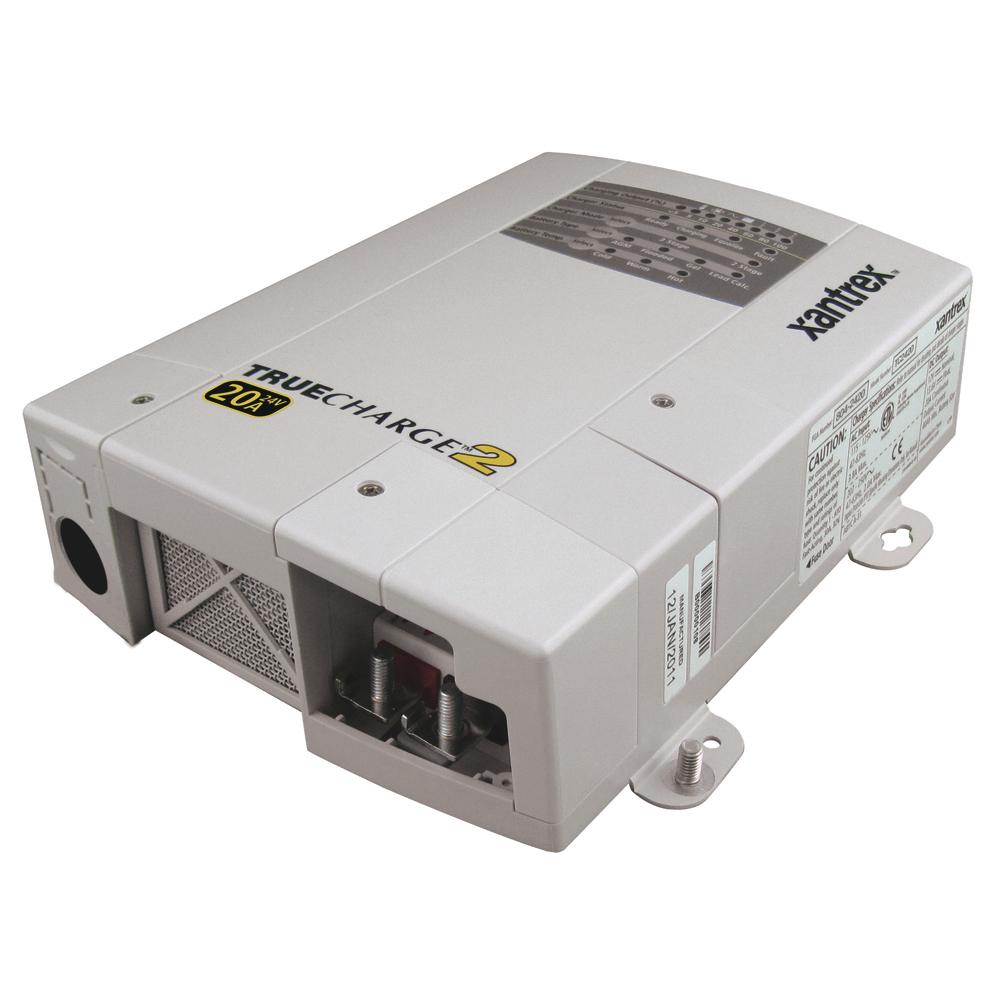

TRUECharge™2 Battery Charger
804-2420

20 Amp - 90-265 Vac / 47-63 Hz

AMP-IT-UP! NEW 24-Volt Universal Chargers

Building on the success of the TRUECharge™2 12-volt battery chargers, Xantrex™ now offers 24-volt battery chargers designed to meet the specific needs of marine and commercial markets. Available in 10A, 20A and 30A versions, each model packs a powerful universal charger (90-240Vac, 47-63 Hz) in an ultra-compact, lightweight package.

Product Description
TRUECharge2 battery chargers are highly versatile and can be mounted in multiple positions, thanks to their inherent drip-free design characteristics. TRUECharge2 delivers outstanding low electrical interference, coupled with efficient, power factor corrected, multistage charging capability. Installation is a breeze, thanks to the easy-access AC and DC wiring compartments. The easy-to-read display can be augmented with an optional remote panel.

NEW PARALLEL FEATURE
TRUECharge2 24-volt chargers are available with parallel stacking feature which allows you to double the output current when used with the optional REMOTE PANEL (part #808-8040-01).

Performance Features

• 24-volt models available in 10A, 20A and 30A

• Microprocessor-controlled, multistage charging algorithms

• Settings for two and three-stage charging

• Settings for flooded, gel, AGM or lead-calcium batteries

• Auto-ranging universal input voltage (90-265 Vac, 47-63 Hz) is also compatible with a generator or other low-quality power sources

• Power factor corrected, temperature-compensated charging

• Battery-equalization feature

• Ability to charge batteries drained to extremely low voltage

• Optional Battery Temperature Sensor (Part #808-0232-01)

• Optional Remote Panel (#808-8040-01)

Protection Features

• Reverse battery polarity protection

• Drip-proof design

• Over and under-temperature protection

• DC over-voltage protection

• Battery overcharging protection
