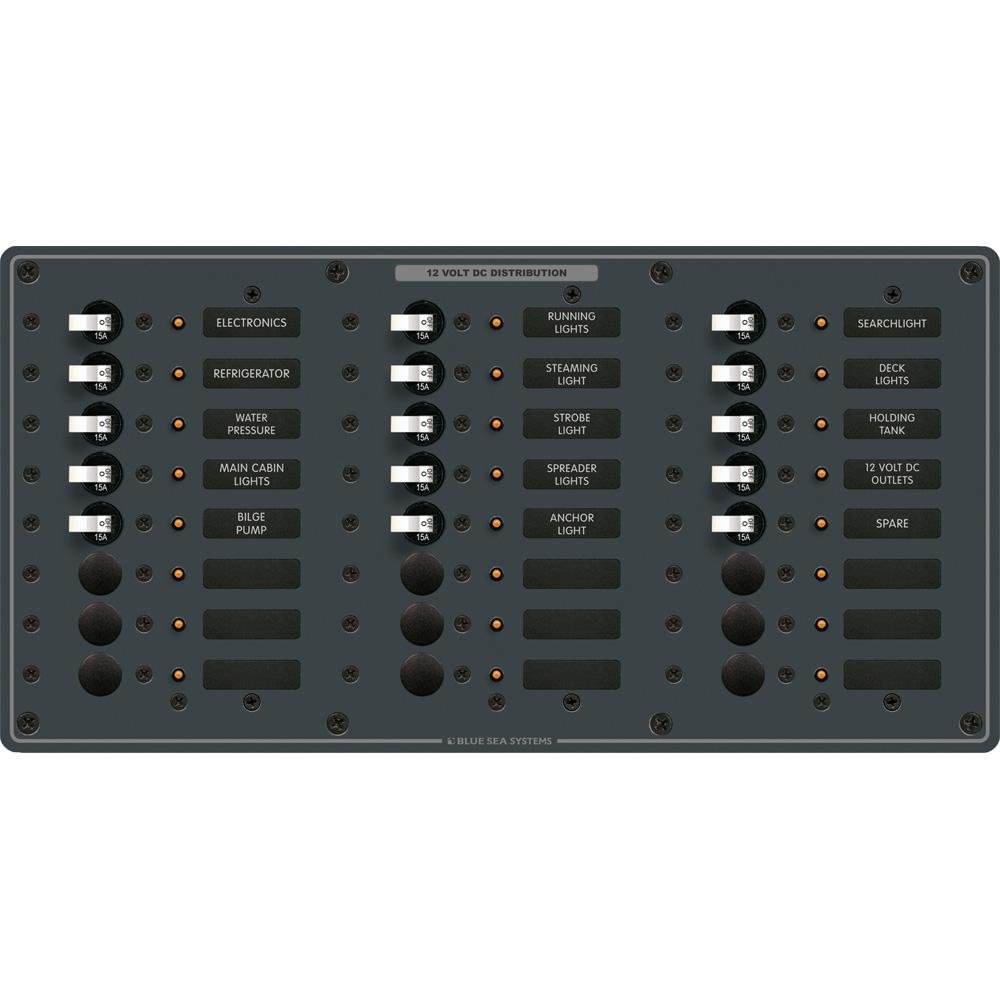

Blue Sea 8264 Traditional Metal DC Panel - 24 Positions - 8264
Description
Description
Features:
- All positive, negative and grounding buses installed, fully pre-wired
- Panels with meters include toggle switch for mounting up to 3 battery banks
- All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)
- All circuit label positions are backlit on standard panels - No kit required
- "ON" indicating LEDs installed in all circuit positions
Specifications:
- Positions: 24
- Nominal Voltage: 12 VDC/24 VDC
- Maximum Amperage: 100A per bus
- Height: 7.50" (190.5 mm)
- Width: 14.75" (374.65 mm)
- Weight: 7.45lb. (3.38 kg)
