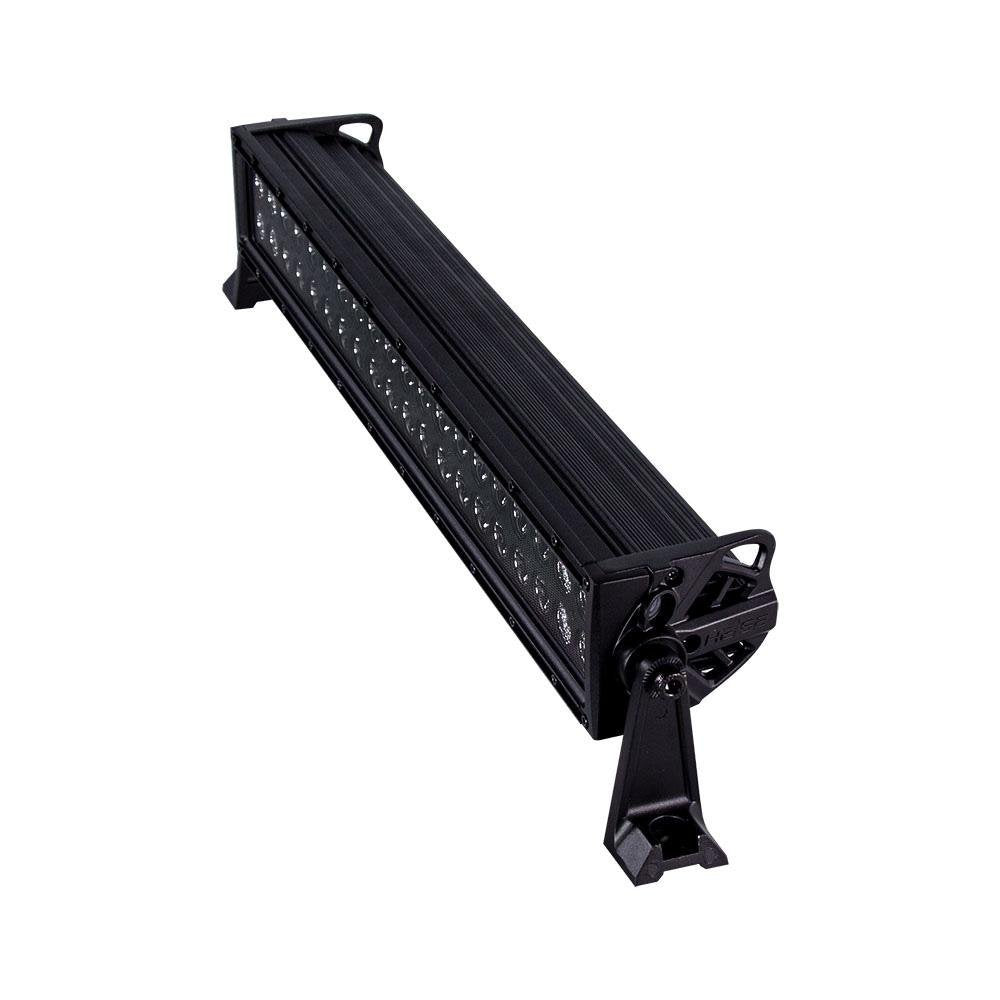

HEISE - Dual Row Blackout LED Light Bar - 22" - HE-BDR22

SPECS

• Input Voltage: 10-30V DC
• Wattage: 120W (40-3W CREE LEDs)
• Raw Lumens: 9600
• LUX @ 10M: 655
• Color Temperature: 6000K
• Beam Pattern: Combo/Flood(90)/Spot(8)

CONSTRUCTION

• Housing Material: Die-cast Aluminum Housing
• Housing Color: Black
• Membrane: Gore
• Lens Material: PC
• Mounting Bracket: Die-cast Aluminum

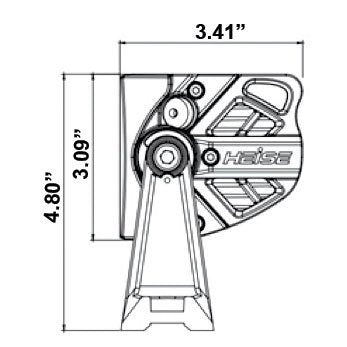

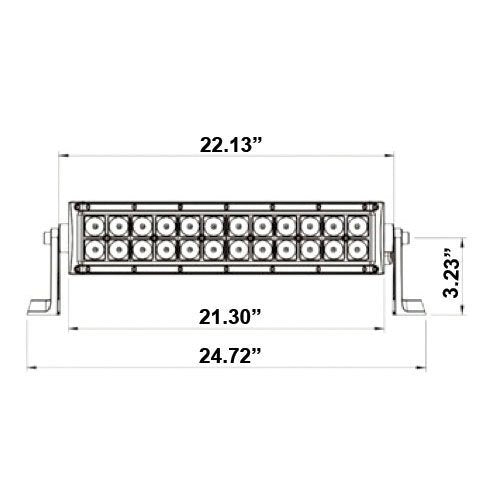

• Hole Dimensions:

• Brackets turned inward - 21.3125"
• Brackets turned outward - 23.75"
• Mounting Bolt Drill - .25"

• Height of Light Bar Itself: 3"
• Depth of Light Bar Itself: 3.50"
• Electronics: Integrated-Epoxy Encapsulated
• Hardware: Stainless 316

OPERATION

• Operating Temperature: -40C to +60C
• Current Consumption: 6.3 amps @ 13.8 volts
• IP Rating: IP67
• Protections: Reverse Polarity



Specifications:

• Box Dimensions: 6"H x 6"W x 27"L WT: 7.8 lbs
• UPC: 086429312740
