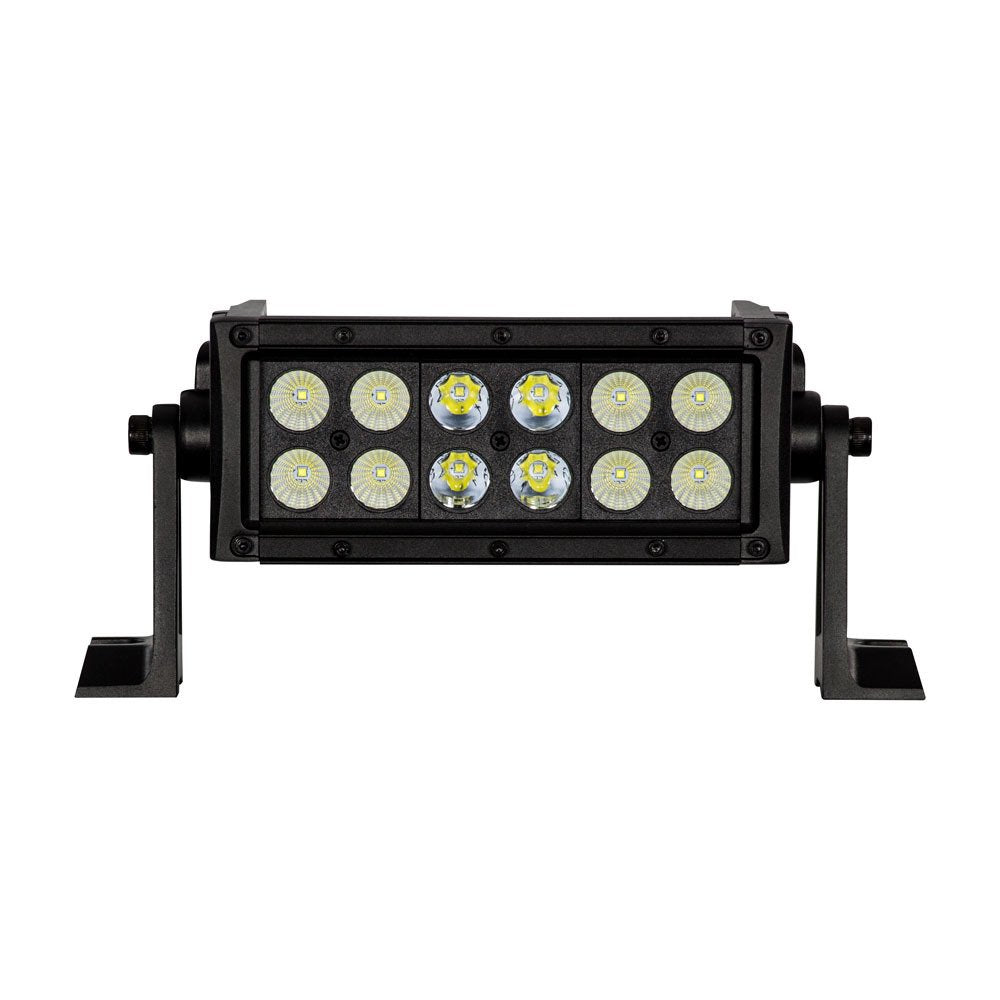

HEISE - Dual Row Blackout LED Light Bar - 8" - HE-BDR8
HEISE - Dual Row Blackout LED Light Bar - 8" - HE-BDR8
SKU:
PV019636
$170.99
$189.99
Unit price /
Unavailable
HEISE - Dual Row Blackout LED Light Bar - 8" - HE-BDR8 is backordered and will ship as soon as it is back in stock.
This product could earn you
points
Learn more about PartsVu rewards
Learn more about PartsVu rewards
Size chart content page
Description
Description
HEISE - Dual Row Blackout LED Light Bar - 8" - HE-BDR8
SPECS
- Input Voltage: 10-30V DC
- Wattage: 36W (12-3W CREE LEDs)
- Raw Lumens: 2880
- LUX @ 10M: 215
- Color Temperature: 6000K
- Beam Pattern: Combo/Flood(90)/Spot(8)
CONSTRUCTION
- Housing Material: Die-cast Aluminum Housing
- Housing Color: Black
- Membrane: Gore
- Lens Material: PC
- Mounting Bracket: Die-cast Aluminum

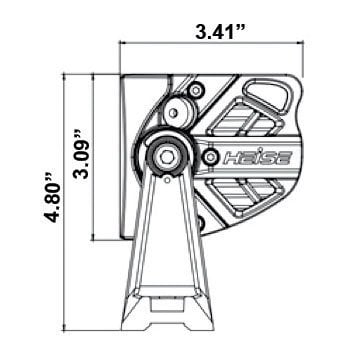

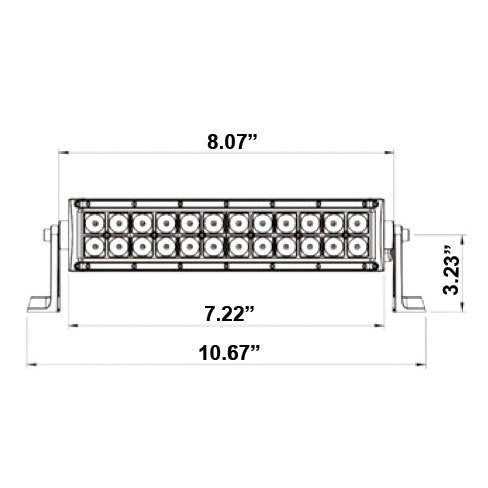

- Hole Dimensions:
- Brackets turned inward - 7.25"
- Brackets turned outward - 9.5"
- Mounting Bolt Drill - .25"
- Height of Light Bar Itself: 3"
- Depth of Light Bar Itself: 3.50"
- Electronics: Integrated-Epoxy Encapsulated
- Hardware: Stainless 316
OPERATION
- Operating Temperature: -40C to +60C
- Current Consumption: 1.9 amps @ 13.8 volts
- IP Rating: IP68
- Protections: Reverse Polarity
Specifications:
- Box Dimensions: 6"H x 6"W x 13"L WT: 3.4 lbs
- UPC: 086429312726
