HEISE - Dual Row LED Light Bar - 30" - HE-DR30
$512.00
Unit price /
Unavailable
Description
Description

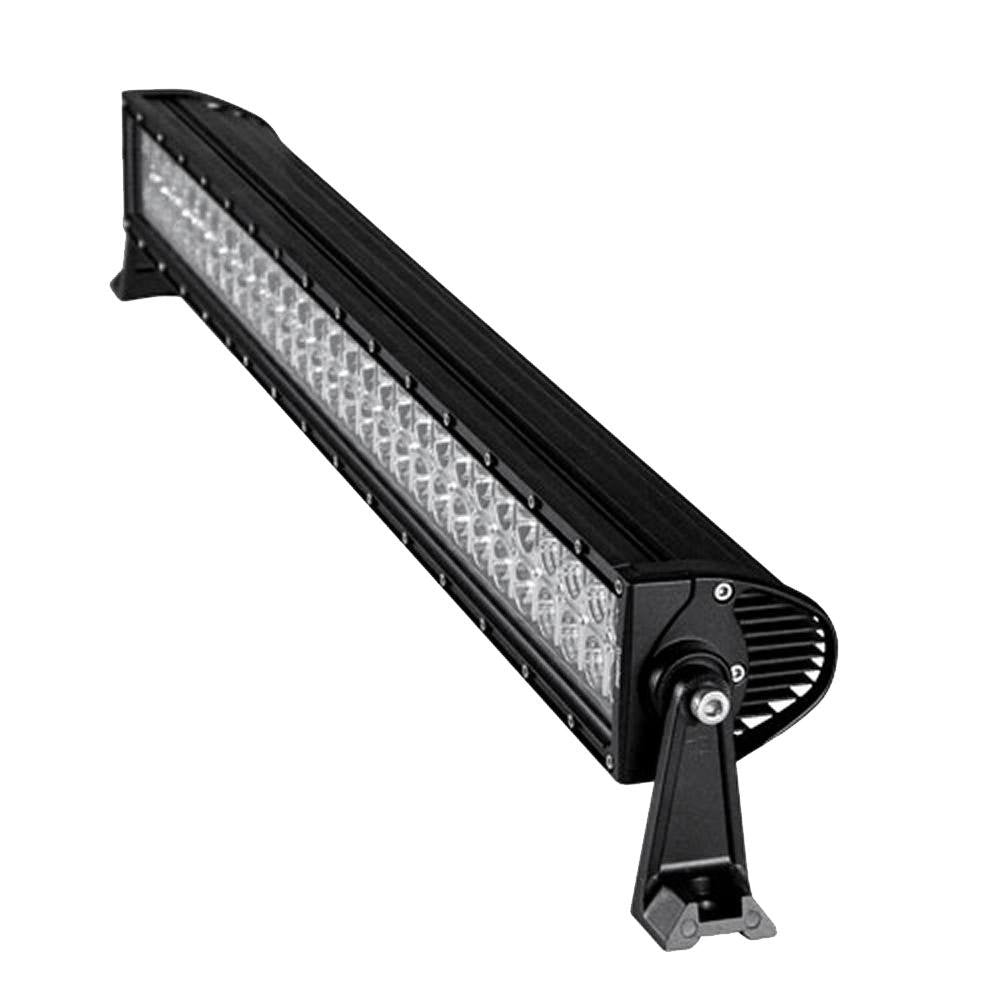

HEISE - Dual Row LED Light Bar - 30" - HE-DR30
SPECS
- Input Voltage: 10-30V DC
- Power Consumption: 180W
- (60-3W CREE LEDs)
- Raw Lumens: 14400
- LUX @ 10M: 870
- Color Temperature: 6000K
- Beam Pattern: Combo/Flood(90)/Spot(8)
CONSTRUCTION
- Housing Material: Die-cast Aluminum Housing
- Housing Color: Black
- Lens Material: PC
- Mounting Bracket: Die-cast Aluminum

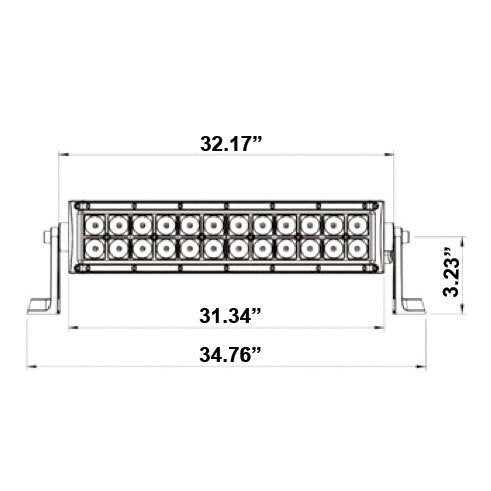

- Length of Bar without Mounting Brackets: 32.16"
- Hole Dimensions:
- Brackets turned inward - 31.25"
- Brackets turned outward - 33.75"
- Mounting Bolt Drill - .25"

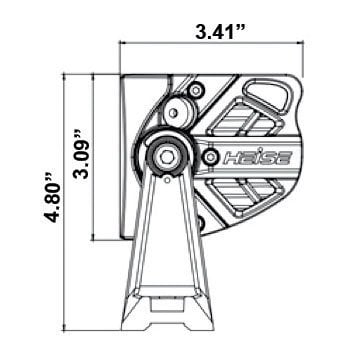

- Height of Light Bar Itself: 3"
- Depth of Light Bar Itself: 3.50"
- Electronics: Integrated-Epoxy Encapsulated
- Hardware: Stainless 316
OPERATION
- Operating Temperature: -40C to +60C
- Current Consumption: 9.5 amps @ 13.8 volts
- IP Rating: IP67
- Protections: Reverse Polarity
