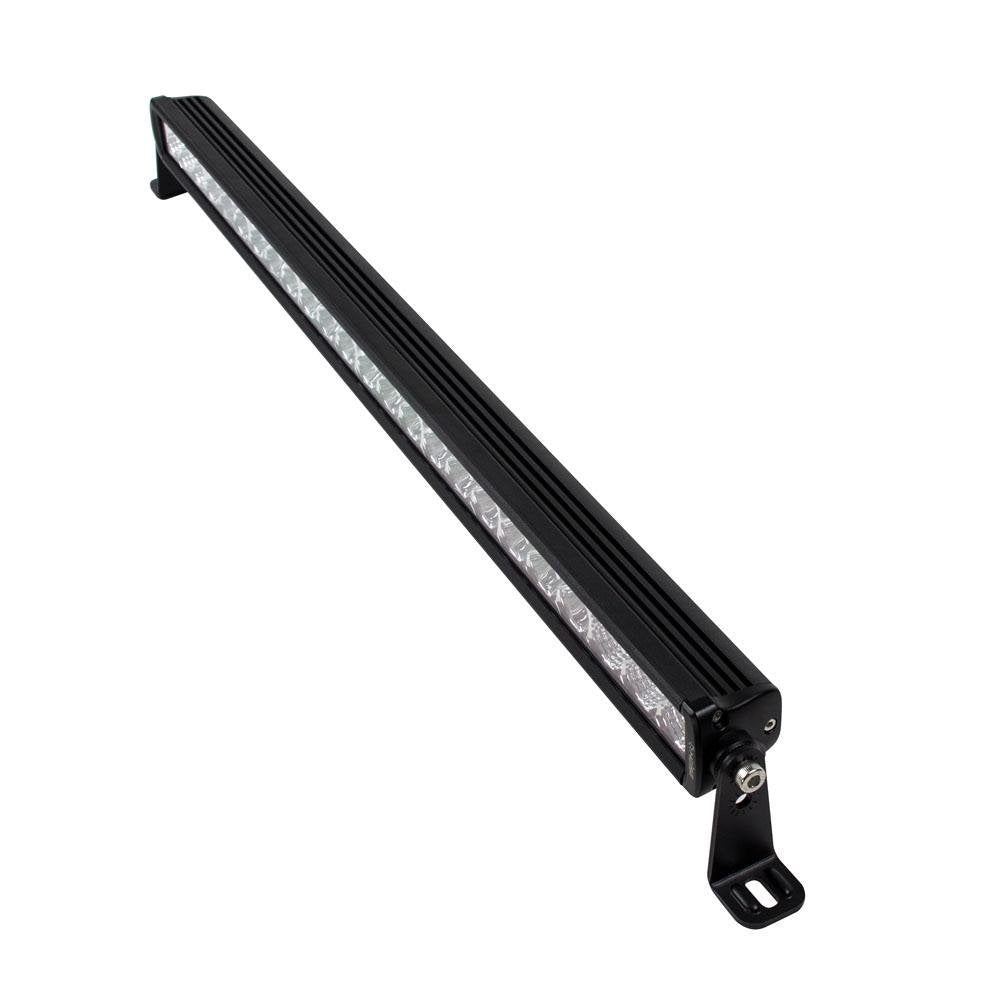

HEISE - Single Row Slimline LED Light Bar - 32" - HE-SL32

SPECS

• Input Voltage: 10-30V DC
• Wattage: 72W (24-3W OSRAM LEDs)
• Raw Lumens: 5760
• LUX @ 10M: 2200
• Color Temperature: 6000K
• Beam Pattern: Combo/Flood(90)/Spot(8)

CONSTRUCTION

• Housing Material: Powder Coated Aluminum
• Housing Color: Black
• Membrane: Gore
• Lens Material: PC
• Mounting Bracket: Die-cast Aluminum
• Mounting: Side and Bottom

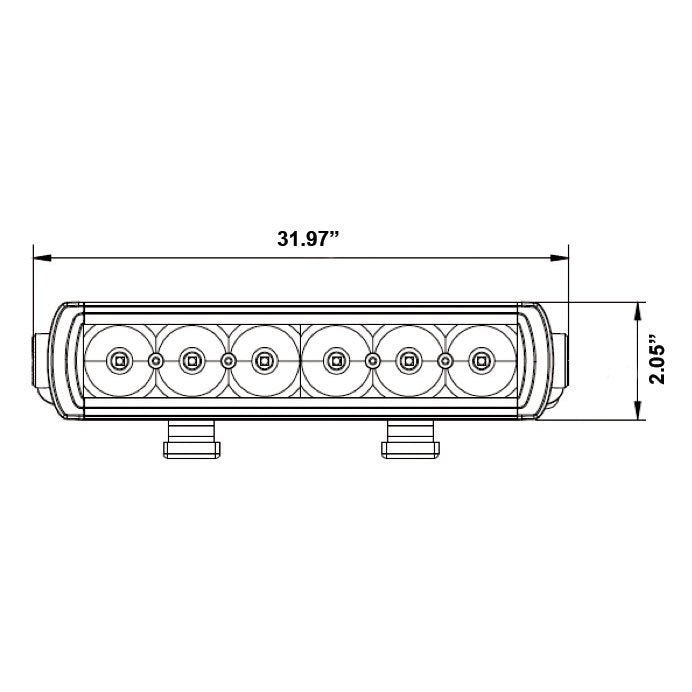

• Hole Dimensions:

• Brackets turned inward - 31.75"
• Brackets turned outward - 33.75"
• Mounting Bolt Drill - .25"

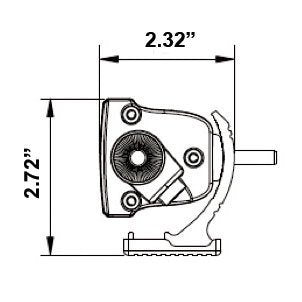

• Height of Light Bar Itself: 2"
• Depth of Light Bar Itself: 2"
• Electronics: Integrated-Epoxy Encapsulated
• Hardware: Stainless 316

OPERATION

• Operating Temperature: -40C to +60C
• Current Consumption: 4 amps @ 13.8 volts
• IP Rating: IP67
• Protections: Reverse Polarity
