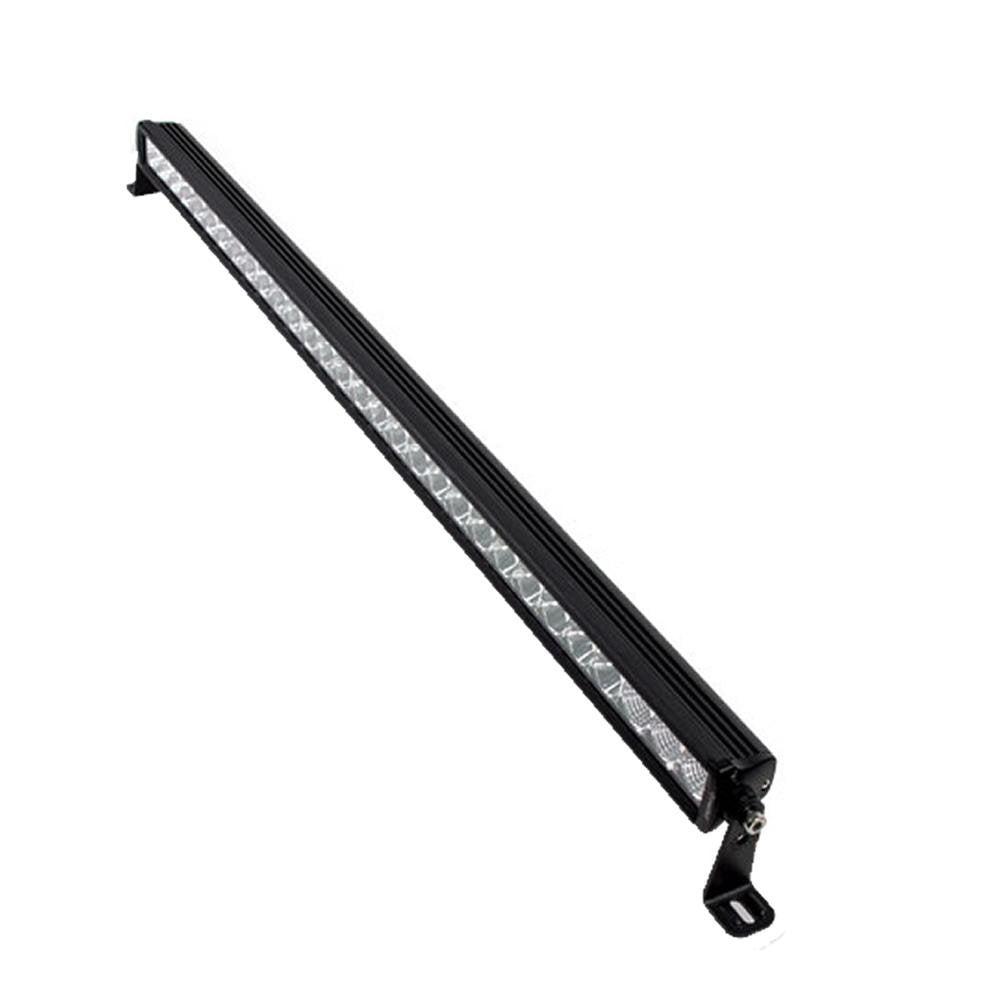

HEISE - Single Row Slimline LED Light Bar - 39-1/4" - HE-SL3912

SKU: PV019651
$495.99
This product could earn you points
Learn more about PartsVu rewards
Free Shipping Over $99.00

Description

HEISE - Single Row Slimline LED Light Bar - 39-1/4" - HE-SL3912

SPECS

  • Input Voltage: 10-30V DC
  • Wattage: 90W (30-3W OSRAM LEDs)
  • Raw Lumens: 7200
  • LUX @ 10M: 2920
  • Color Temperature: 6000K
  • Beam Pattern: Combo/Flood(90)/Spot(8)

CONSTRUCTION

  • Housing Material: Powder Coated Aluminum
  • Housing Color: Black
  • Membrane: Gore
  • Lens Material: PC
  • Mounting Bracket: Die-cast Aluminum
  • Mounting: Side and Bottom

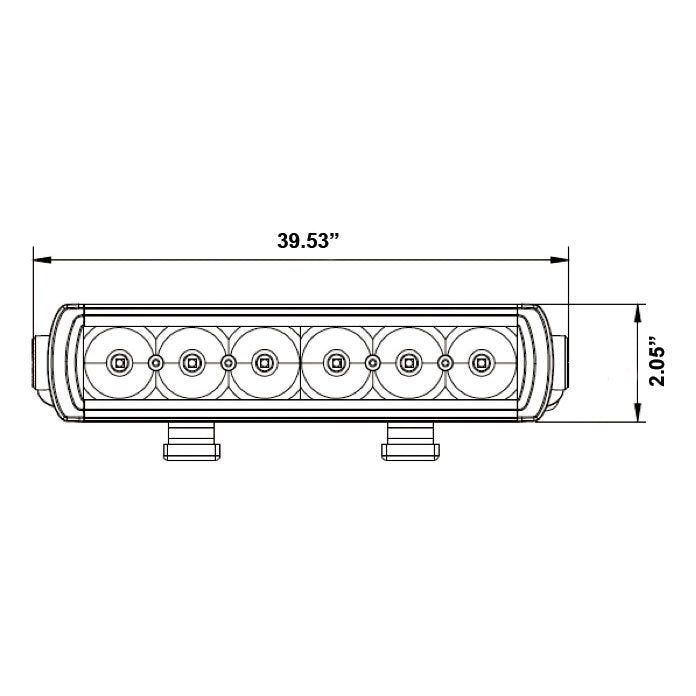

  • Hole Dimensions:
  • Brackets turned inward - 39"
  • Brackets turned outward - 41"
  • Mounting Bolt Drill - .25"

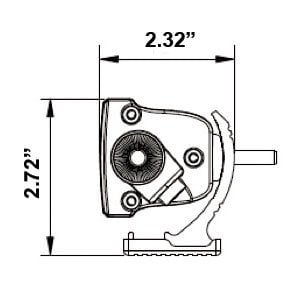

  • Height of Light Bar Itself: 2"
  • Depth of Light Bar Itself: 2"
  • Electronics: Integrated-Epoxy Encapsulated
  • Hardware: Stainless 316

OPERATION

  • Operating Temperature: -40C to +60C
  • Current Consumption: 4.9 amps @ 13.8 volts
  • IP Rating: IP67
  • Protections: Reverse Polarity
