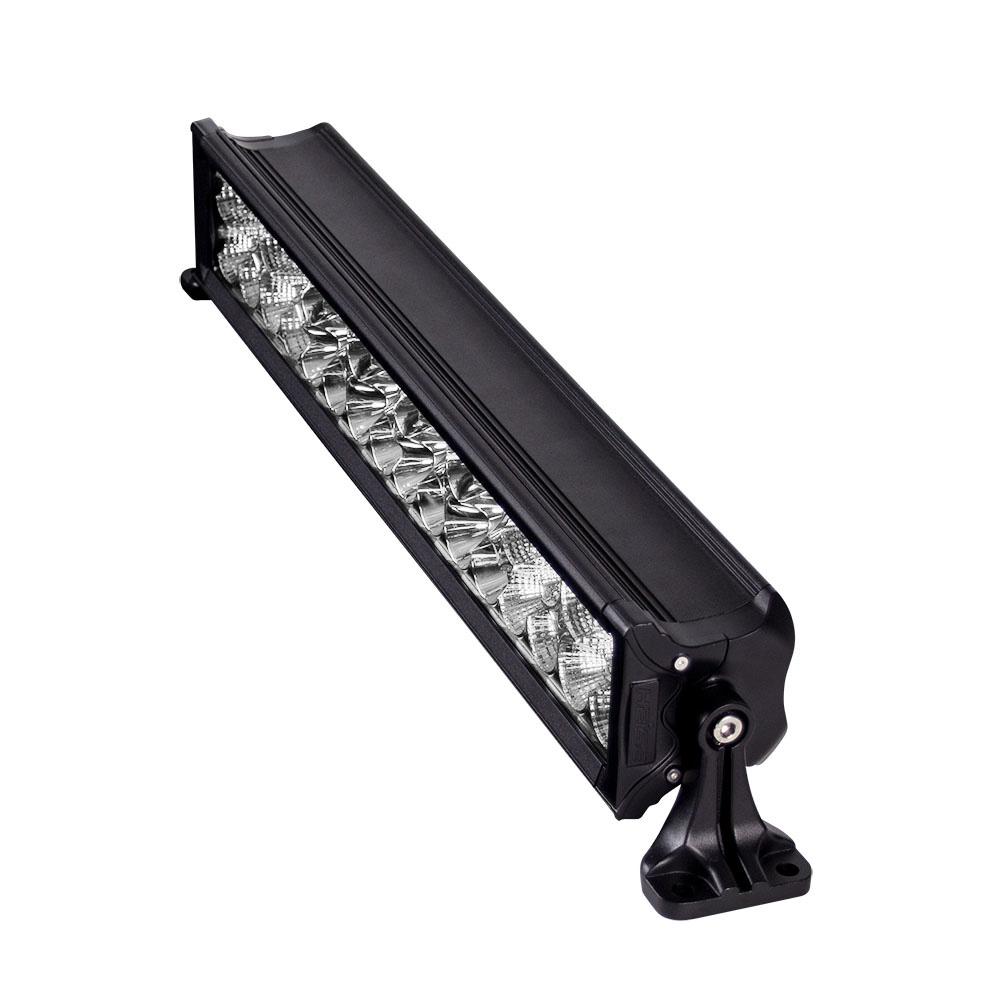

HEISE - Triple Row LED Light Bar - 20" - HE-TR20
$443.99
Unit price /
Unavailable
Description
Description
HEISE - Triple Row LED Light Bar - 20" - HE-TR20
SPECS
- Input Voltage: 10-30V DC
- Wattage: 120W (40-3W OSRAM LEDs)
- Raw Lumens: 9600
- LUX @ 10M: 2573
- Color Temperature: 6000K
- Beam Pattern: Combo/Flood(90)/Spot(8)
CONSTRUCTION
- Housing Material: Powder Coated Aluminum
- Housing Color: Black
- Membrane: Gore
- Lens Material: PC
- Mounting Bracket: Die-cast Aluminum

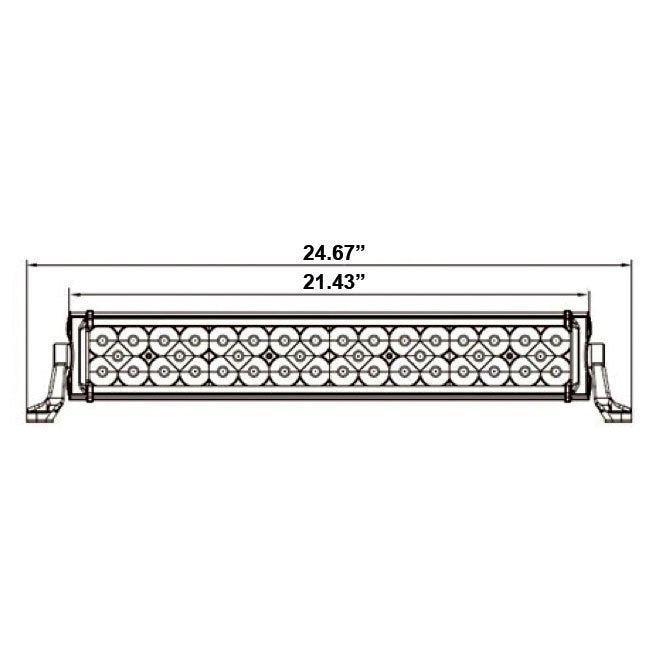

- Hole Dimensions:
- Brackets turned outward - 23.75"
- Mounting Bolt Drill - .25"
- Height of Light Bar Itself: 3.50"
- Depth of Light Bar Itself: 3.25"
- Length of Bar w/o Mounting Brackets: 21.25"
- Electronics: Integrated-Epoxy Encapsulated
- Hardware: Stainless 316
OPERATION
- Operating Temperature: -40C to +60C
- Current Consumption: 6.7 amps @ 13.8 volts
- IP Rating: IP67
- Protections: Reverse Polarity
Specifications:
- Box Dimensions: 5"H x 7"W x 27"L WT: 8 lbs
- UPC: 086429313297
