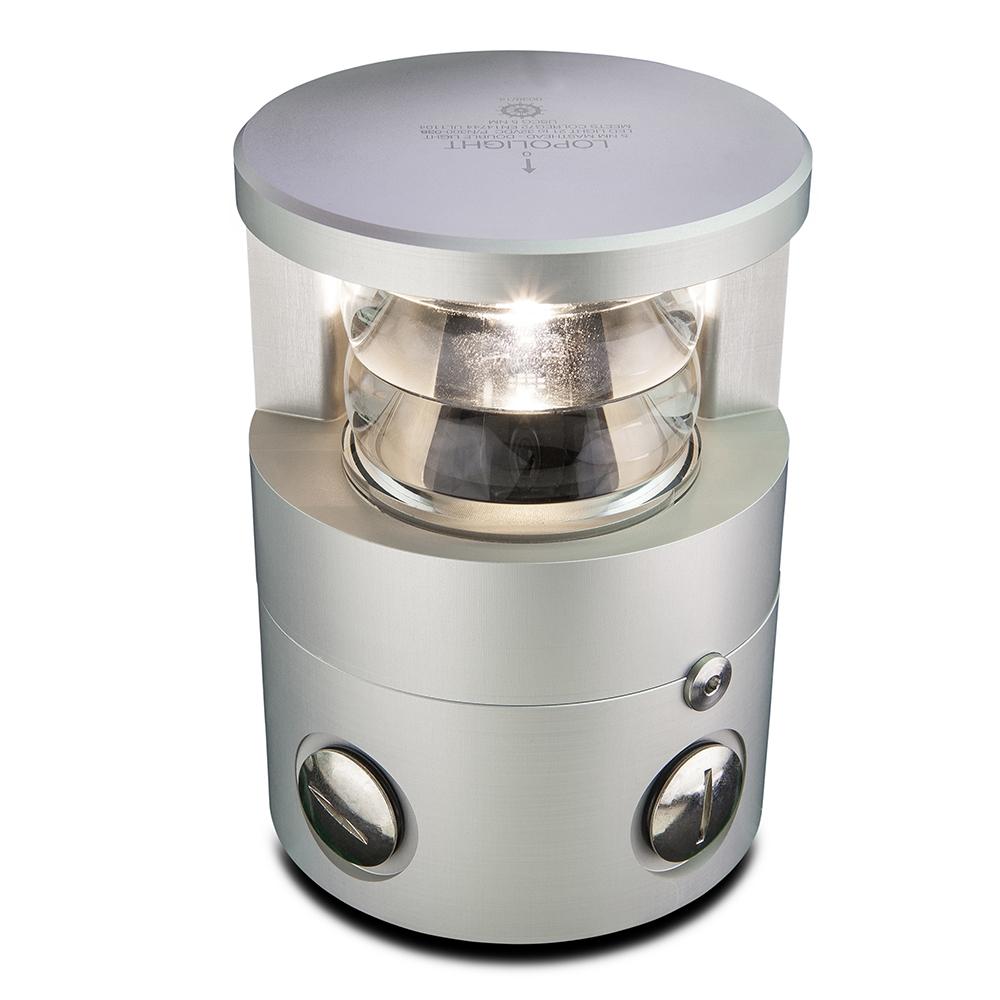

Masthead Double Light - PE Base Plate Included

Masthead light 5 nm double for vessels 20-50 meter.

Features:

• LED (Light Emitting Diode) navigation light
• Unique and precise definition of light angles
• Rugged and unbreakable: Precision machined anodised aluminium housing protects the LED's and electronics
• Completely waterproof and vibrationproof: Interior is fully filled and sealed with special potting resin
• Waterproof to IP 68+ (submersible)
• Low power consumption - 70 to 90% less than traditional navigation lights
• Full brightness with input voltages ranging from 10 to 32V
• All Lopolights have been tested several times during production, a total of more than 24 hours
• Easy to install, adaptor and screws included (when applicable)

Specifications:

• Approvals: Lloyds Register MED 1350099
• Measurements: Ø92,5 x 121 mm
• Materials: Hard cote anodised aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
• Supply Voltage: 22-32 VDC
• Power Consumption: 7,0 Watt; Current @ 24 VDC: 0,3 A
• Light Colors: White - 225
• Intensity: >52 cd
• Visibility: (@K=0.8)5 nm
• Number of LEDs: 6
• Suggested Deed Cables: 12 VDC: 2 x 0,50 mm2 (outer diameter 5-9 mm) 24 VDC: 2 x 0,50 mm2 (outer diameter 5-9 mm) The light is delivered assembled with 1,5 meter neoprene cable
• Expected Life: 50.000
• Ship Size: 20 - 50 meters (65,6 - 164 feet)

Included In Package:

• 1 - Navigation Light
• 2 - Cable Glands
• 2 - Blinding Caps
• 2 - Connector Plugs
• Installation Instruction & Drawing
