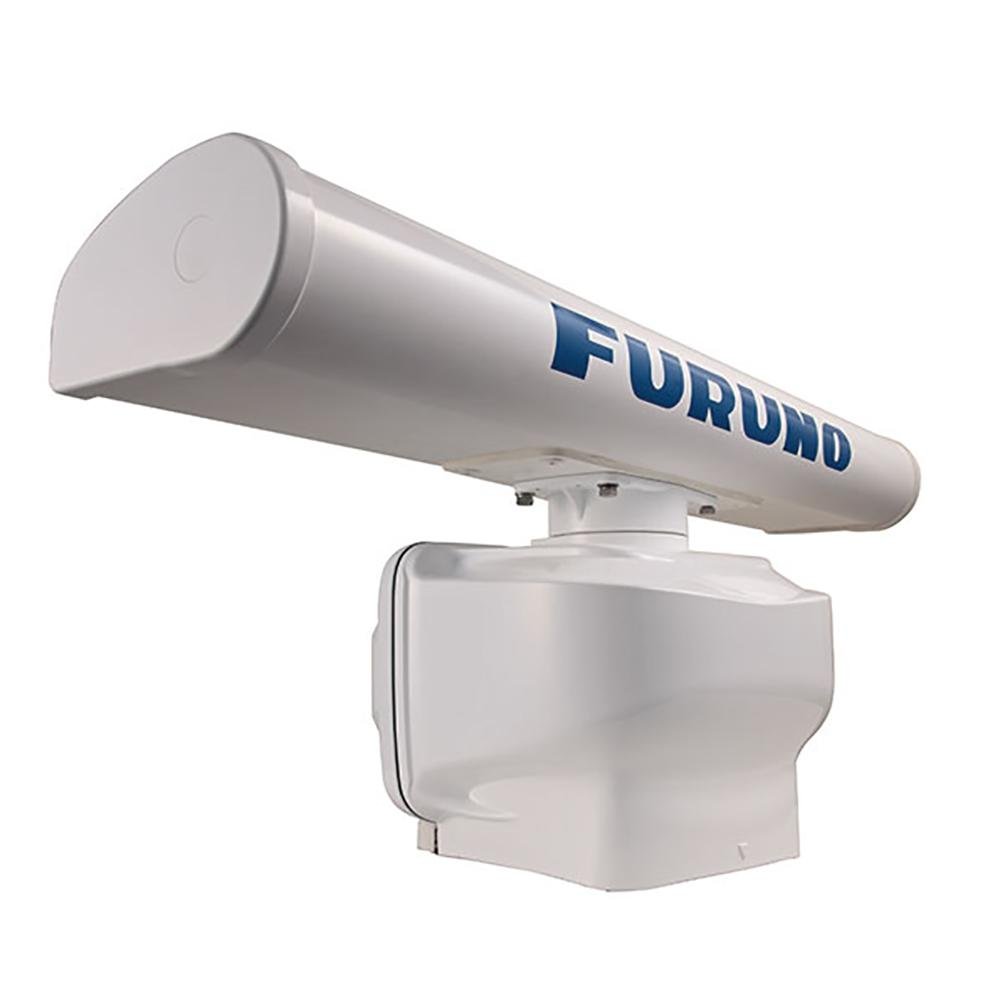

DRS6AX 6kW UHD Digital Radar with Pedestal, 3.5' Open Array Antenna & 15M Cable

DRS6AX "X-Class" a whole new class of Radar!

Pushing the boundaries of what is possible with conventional Radar technology, DRS6AX "X-Class" marks yet another leap forward for Furuno. Improved in almost all aspects, DRS6AX "X-Class" Radar features improved short range detection, as well as an impressive long range detection of up to 120 nautical miles.

The redesigned pedestal unit is 20% lighter than previous DRS6AX model and features an updated motor for significantly lower noise levels. Combined with an updated smart-connector cable, installation and maintenance is simpler than ever before.

Fast Target Tracking function adopted from our commercial Radar FAR3000, is also available on the DRS6AX "X-Class." Target course and speed vectors are displayed instantly with the press of a button. Target vectors increase situational awareness and can increase overall safety on your vessel.

Features:

• 6kW Power Output
• Enhanced target detection, both short and long range
• Minimum detection range of just 20M
• Fast Target Tracking
• Bird Mode
• Pedestal unit, 20% lighter than previous DRS6A unit, updated low noise motor
• No PSU required, decreasing total costs
• Easy installation without the need to open pedestal unit
• Smart-connector cable
• Open Array Antenna - XN10A/3.5 has a 2.2 horizontal beam width. Its range is 48 nautical miles
• 15M Cable
• Compatible with NavNet TZtouch and NavNet TZtouch2 and NavNet TZtouch3 (not compatible with NavNet 3D or earlier NavNet models)
• The DRS6AX is a 24V system; a converter will be required for use with 12V power systems
