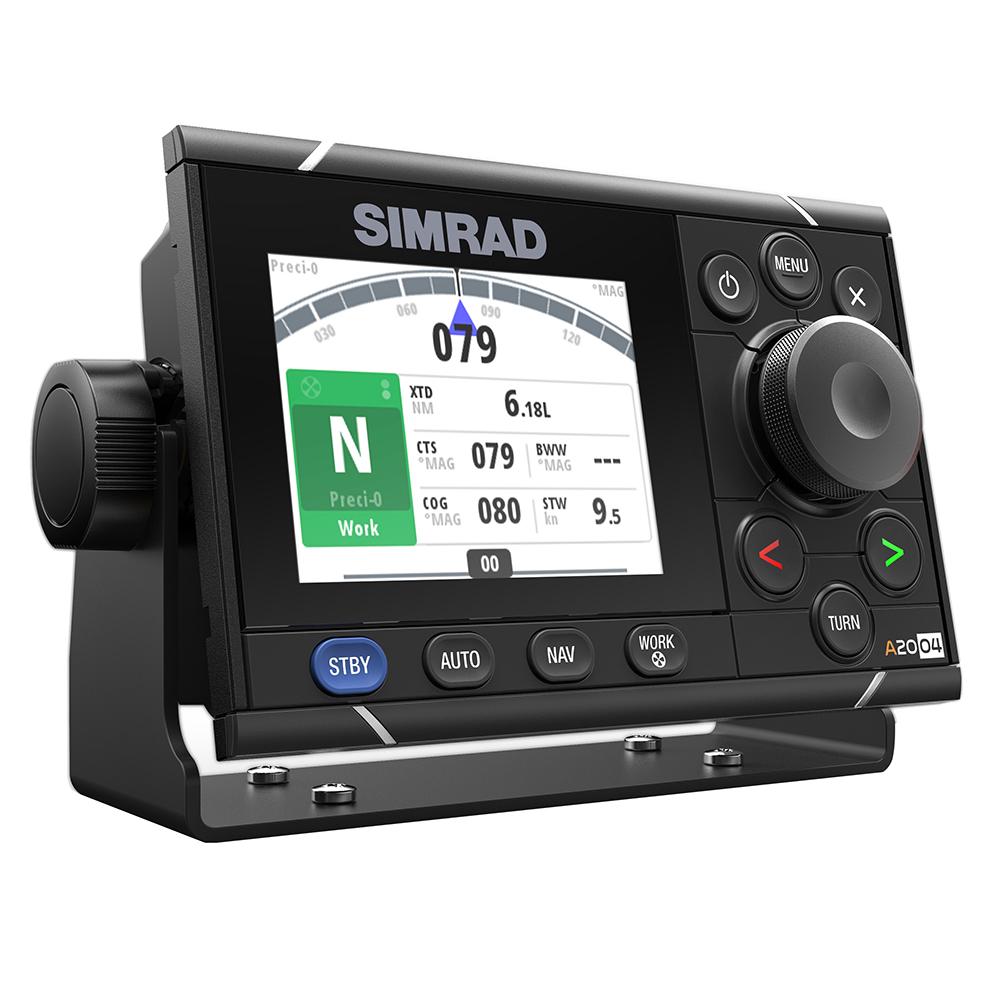

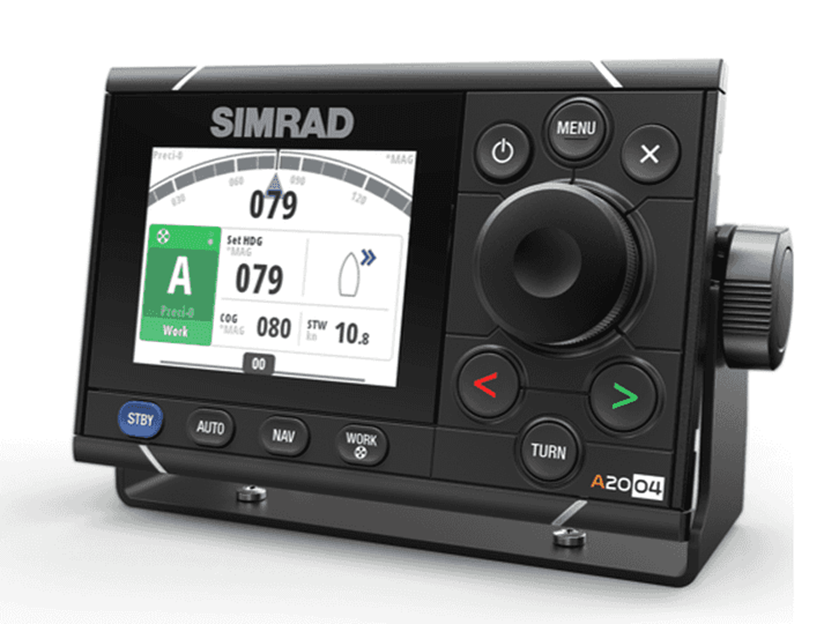

Simrad - A2004 Autopilot Control Display - 000-13895-001

The A2004 is a dedicated autopilot controller designed to meet the needs of professional mariners aboard a variety of commercial vessels. It features a proven Simrad interface, presented on a wide-angle and zero-fog color display. Engineered for responsiveness and ease of use, the A2004 pairs a precision rotary control dial with dedicated buttons for instant access to steering modes, a custom-configurable Work mode, and automated turn patterns.

The A2004 builds upon the proven user interface and keypad layout of the Simrad AP70 and AP80 professional autopilot controllers and delivers consistency with the latest generation of Simrad radar, sonar, and ECDIS displays. A large aluminum rotary control dial enables quick but precise steering adjustments, while dedicated keys offer instant access to steering modes, a custom-configurable Work mode, and automated turn patterns. All built-in controls are designed for ease of use with wet or gloved hands, in commercial settings such as fishing vessels and workboats. The A2004 also supports a wide range of Simrad autopilot remotes and steering levers.

Continuum Steering Technology

Every Simrad steering innovation builds upon a legacy encompassing over sixty years of autopilot development, which continues to this day. This legacy is exemplified by the Continuum algorithm: the software behind Simrad steering technology. Continuum steering distills years of research and on-water testing into a flexible software solution, capable of delivering reliable auto-steering performance tuned specifically to match a vessel's control characteristics. With a comprehensive range of hardware and interface modules, Simrad autopilot solutions can be tailored to suit a wide range of commercial vessels and applications.

Optically Bonded 4.1-inch Color Display

To ensure optimal visibility in all conditions, the A2004's color LCD panel is optically bonded to its protective glass covering - eliminating the possibility of internal condensation. Transflective LCD technology makes use of reflected sunlight to brighten rather than obscure the screen, delivering superior daytime visibility and lower power consumption compared to traditional backlit displays. An ultra-wide 170-degree viewing angle means key autopilot information is clearly visible at a glance, from anywhere in sight of the display.

Thruster Integration & Rudder Feedback Support

The A2004 enables autopilot control of a single thruster via an optional AD80 or SD80 interface module. The thruster can be set to engage automatically below a user-defined speed threshold, and configured separately for normal and Work modes. The A2004 also supports specialized heavy-duty rudder feedback units designed for reliable operation aboard commercial vessels.

Features:

• Proven Simrad interface designed for commercial marine applications
• Large, heavy-duty rotary control dial for precision steering
• Continuum steering technology
• Optically bonded 4.1" color display with 170 viewing angle
• Thruster integration & heavy-duty rudder feedback support
• Configurable work mode and low/high speed modes
• Automated turn patterns for fuel-efficient, hands-free manoeuvres
• No Drift steering holds course against wind and tide
• Flush or bracket mounting options
• Certified NMEA 2000 connectivity
