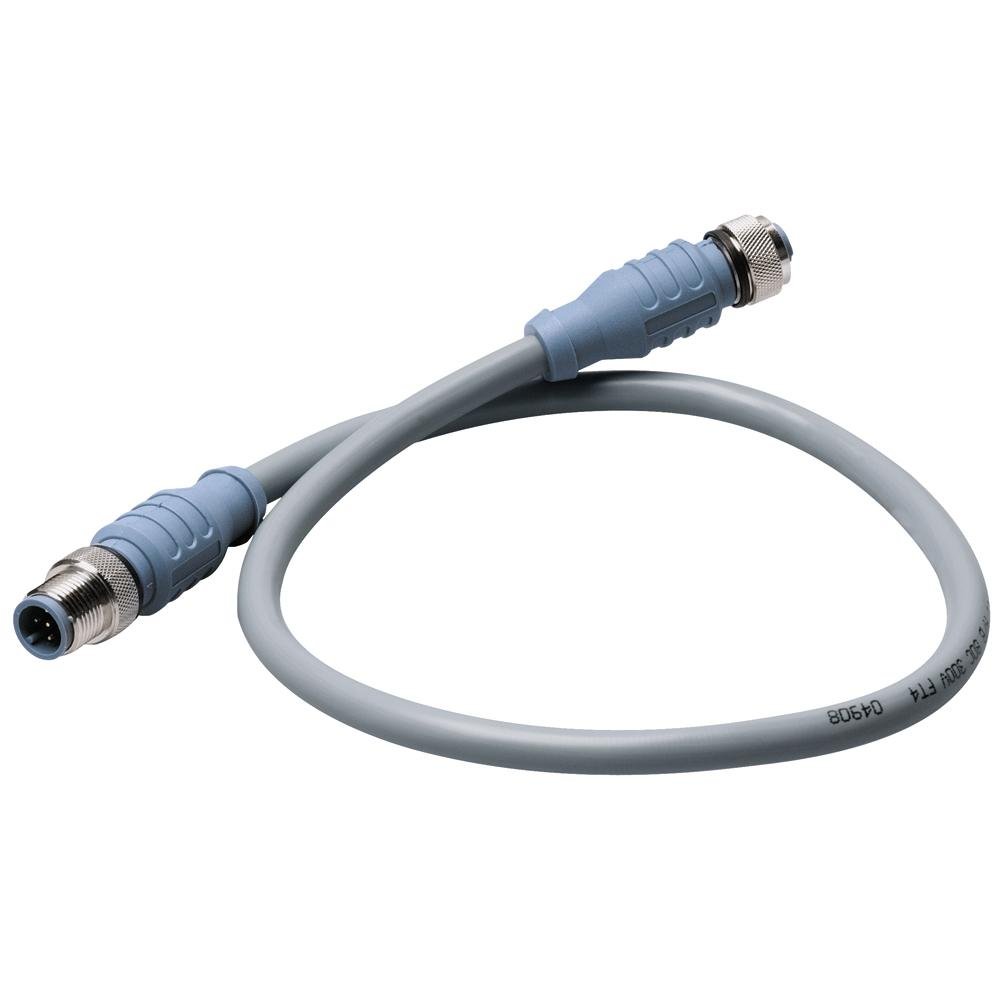

Maretron Micro Double-Ended Cordset - 10 Meter - CM-CG1-CF-10.0
SKU: PV002484
$96.50
This product could earn you points
Learn more about PartsVu rewards

Free Shipping Over $99


Orders $99 or more ship free within the contiguous U.S. May not apply to engines or oversized orders.

Learn More

Fast Shipping


In-stock orders ship the next day, from the warehouse closest to you.

Learn More

Quick & Easy Returns


We accept returns on most items for 45 days— with no restocking fees.

Learn More

Ready to Serve


Our top priority is your ultimate satisfaction, and to get you back to boating as soon as possible.

Contact a Parts Pro

Description
Mechanical
  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
  • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
  • Contact Mat/Plating: Brass/Gold
  • Coupling Nut Mat/Plating: Brass/Nickel
  • Connector Outside Diameter: 0.59"
    Electrical
  • Current Rating: 4.0 Amps
  • Voltage Rating: 250 V
    Cable
  • Outer Jacket Mat/Color: PVC/Gray
  • Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
  • Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
  • Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)
    Environmental
  • Protection Class: IEC IP68, NEMA 1,3,4,6P
  • Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)
    Approvals
  • (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625,
    AWM 80 deg C 300V
  • (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C,
    AWM I/II A/B 80C 300V FT4
  • NMEA: NMEA 2000 Approved
    •
