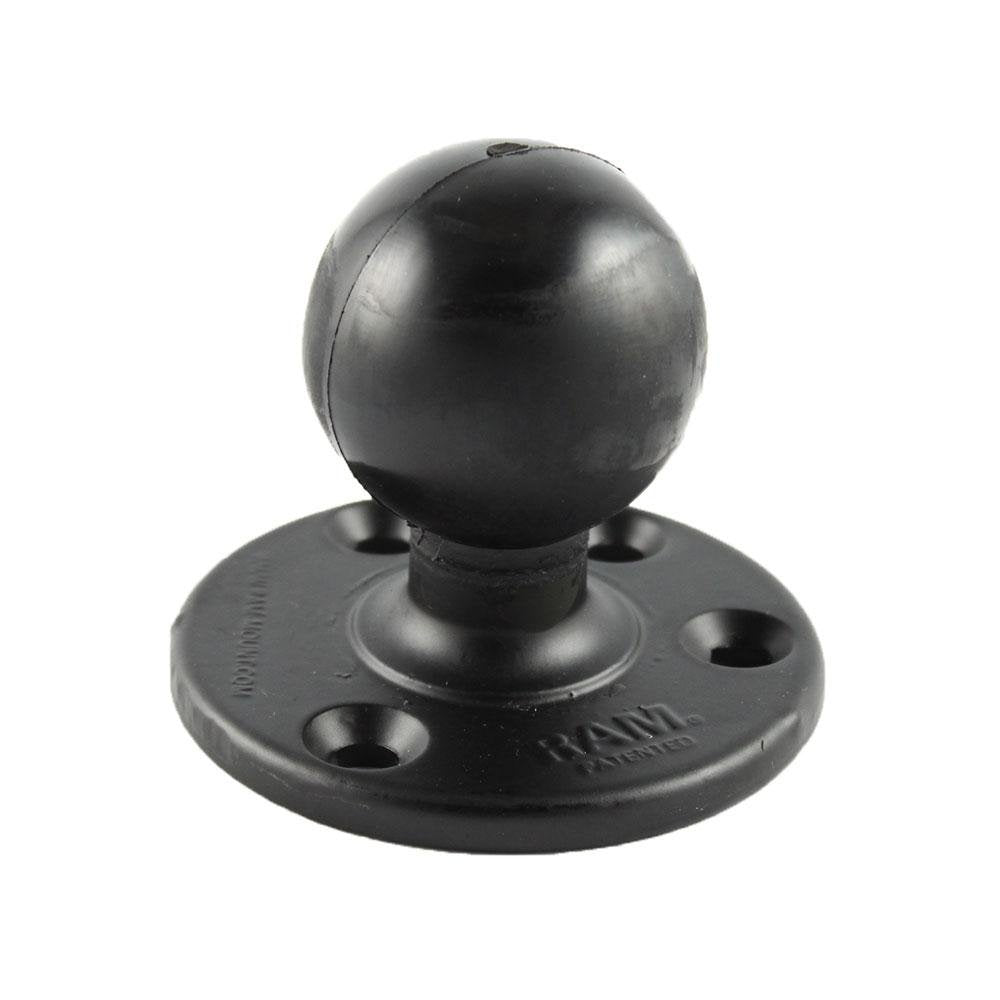

RAM Mount - 3.68" Diameter Base with 2.25" D Size Ball - RAM-D-202U

The RAM-D-202U consists of a 2.25" diameter rubber ball, connected at right angles to a 3.68" diameter round plate. The plate has pre-drilled holes in the base plate, including two holes at 180 degrees and three holes at 120 degrees.

Features:

• 3.68" round plate for drill-down mounting
• Included D size 2.25" RAM rubber ball allows for connection to any D size RAM double socket arm; ball and socket technology allows for near-infinite adjustability
• Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

Specifications:

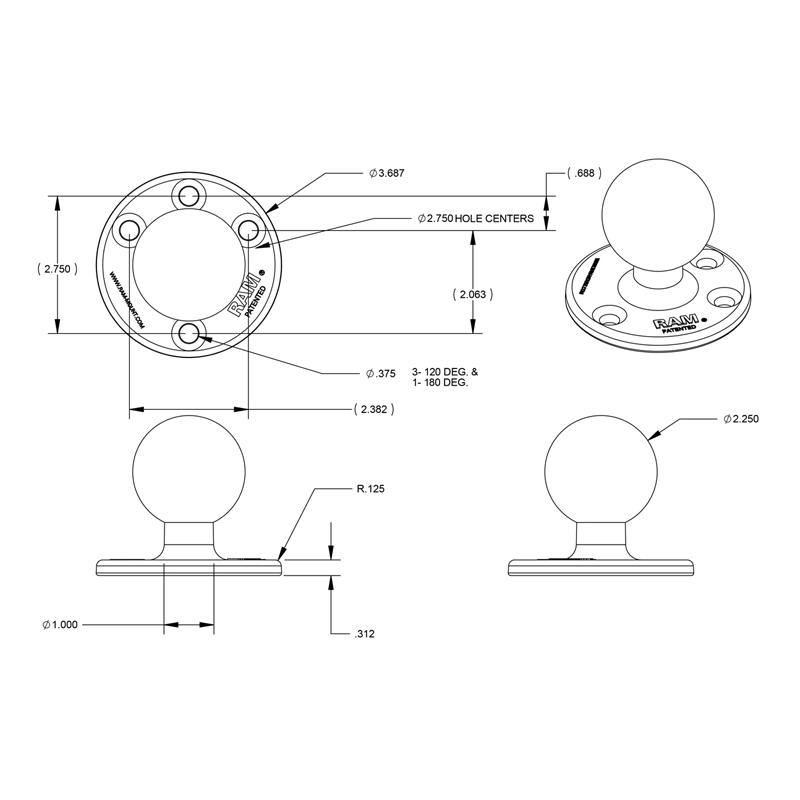

• Hole Pattern - See Drawing
• Plate Size - 3.68" Diameter
• Ball Size - D Size (2.25")
• Weight Capacity - Standard Use: 6 lbs, Heavy-Duty Use: 5 lbs
• Materials - Marine-grade aluminum
• Packaging Type - Poly Bag
• Weight - 0.71 lbs.
• Ball Size - 2.25" Rubber Ball "D" Size
