RAM Mount - Surface Mount for Humminbird HELIX 5 - RAM-202-153-202U

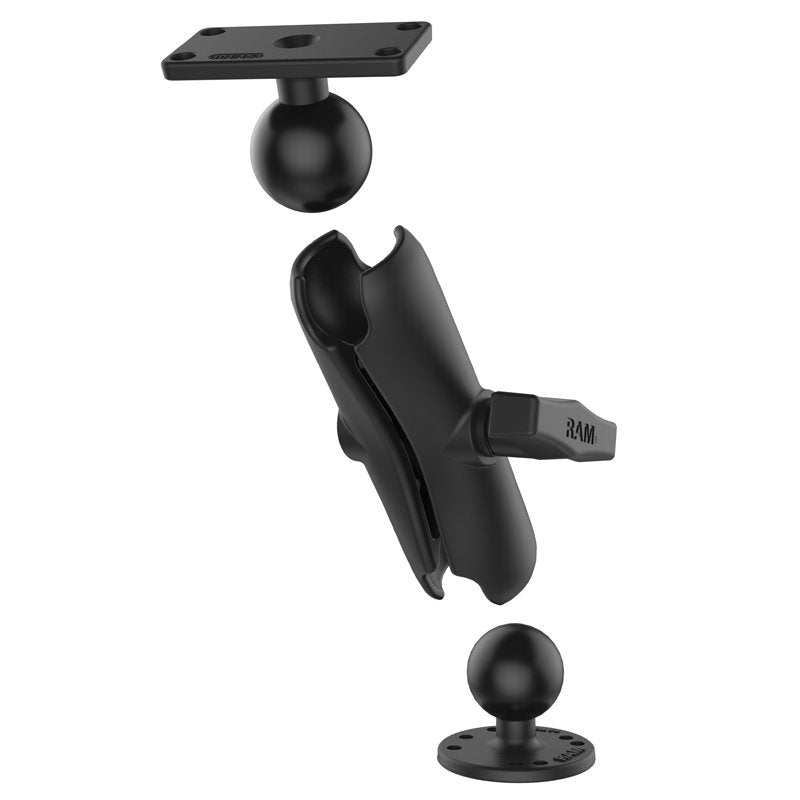

The RAM-202-153-202U powder-coated, marine-grade aluminum Humminbird Helix 5 mount consists of a medium length double socket arm, a 2.5" diameter round base with a 1.5" C size ball, and one 1" x 2.5" rectangular plate with a 1.5" C size ball and 4-hole pattern. Rubber ball and socket technology provides shock and vibration damping, and allows for near-infinite adjustability so you can position your device at the perfect viewing angle. Compatible with versions of the Humminbird Helix 5.

Features:

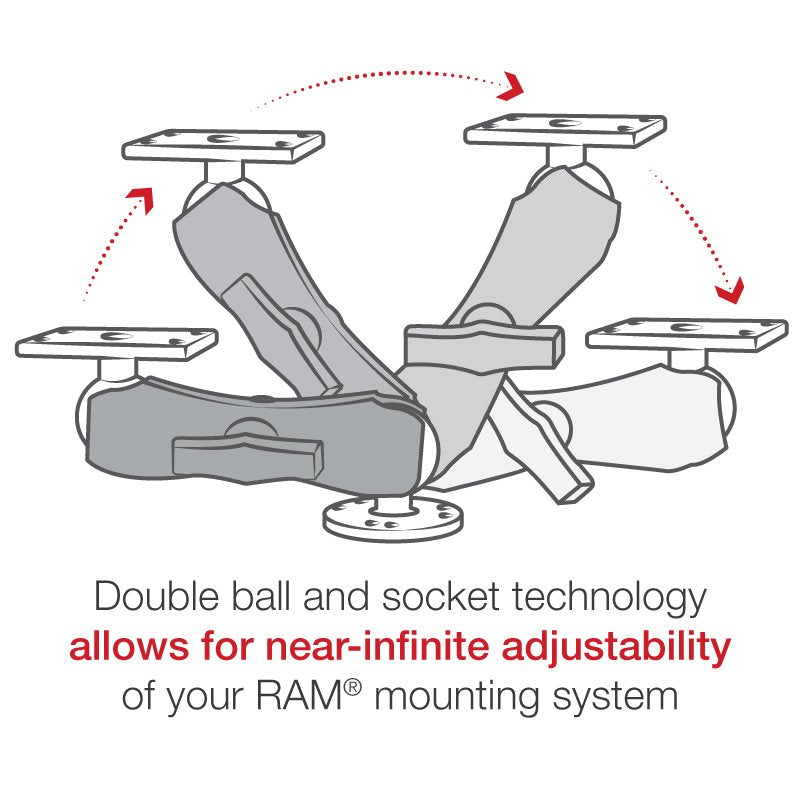

• Complete flat surface, drill-down mounting solution for the Humminbird Helix 5; RAM Mounts ball and socket technology allows for near-infinite adjustability
• Includes 2.5" round base with C size 1.5" rubber ball, medium length C size double socket arm, and a 1" x 2.5" rectangle base with C size 1.5" rubber ball that connects to your Humminbird Helix 5
• Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
• Backed by a lifetime warranty

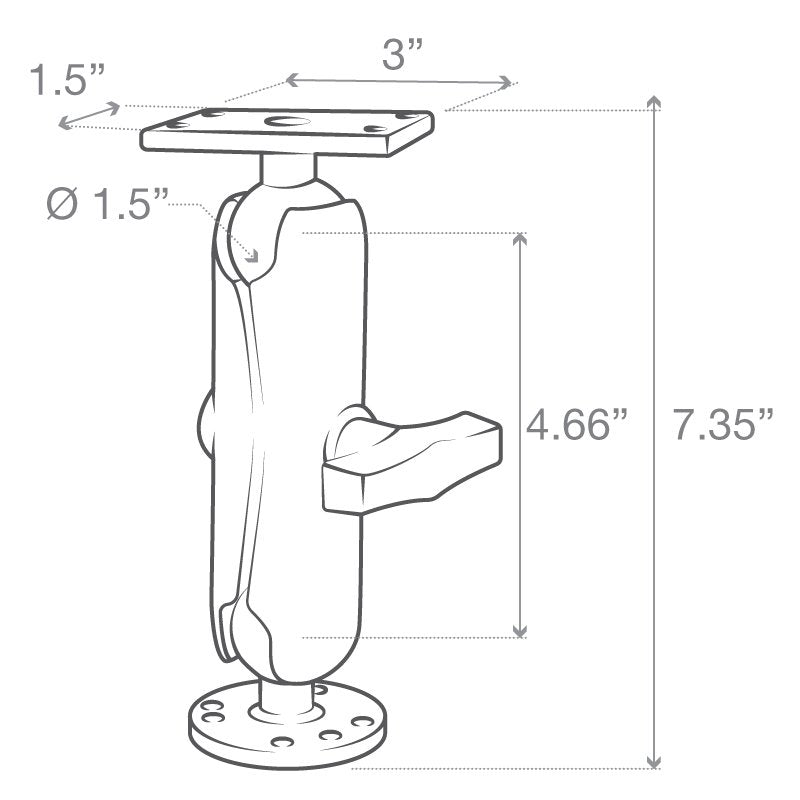

Specifications:

• Product Dimensions - Overall Height: 7.35"
• Socket-to-Socket Length - 4.66"
• Hole Pattern - Round Plate: 4-Hole AMPS: 1.181" x 1.496" & 3-Hole 120-Degree 1.812" Diameter
• Rectangular Plate - 1" x 2.5"
• Plate Size - Top Plate: 1.5" x 3"
• Bottom Plate - 2.5" Diameter
• Ball Size - C Size (1.5")
• Weight Capacity - Standard Use: 4 lbs
• Heavy-Duty Use - 3 lbs
• Materials - Marine-grade aluminum
• Packaging Type - Poly Bag
• Weight - 1.15 lbs.
• Surface Mount 1.5" x 3" Plate & Round Base
