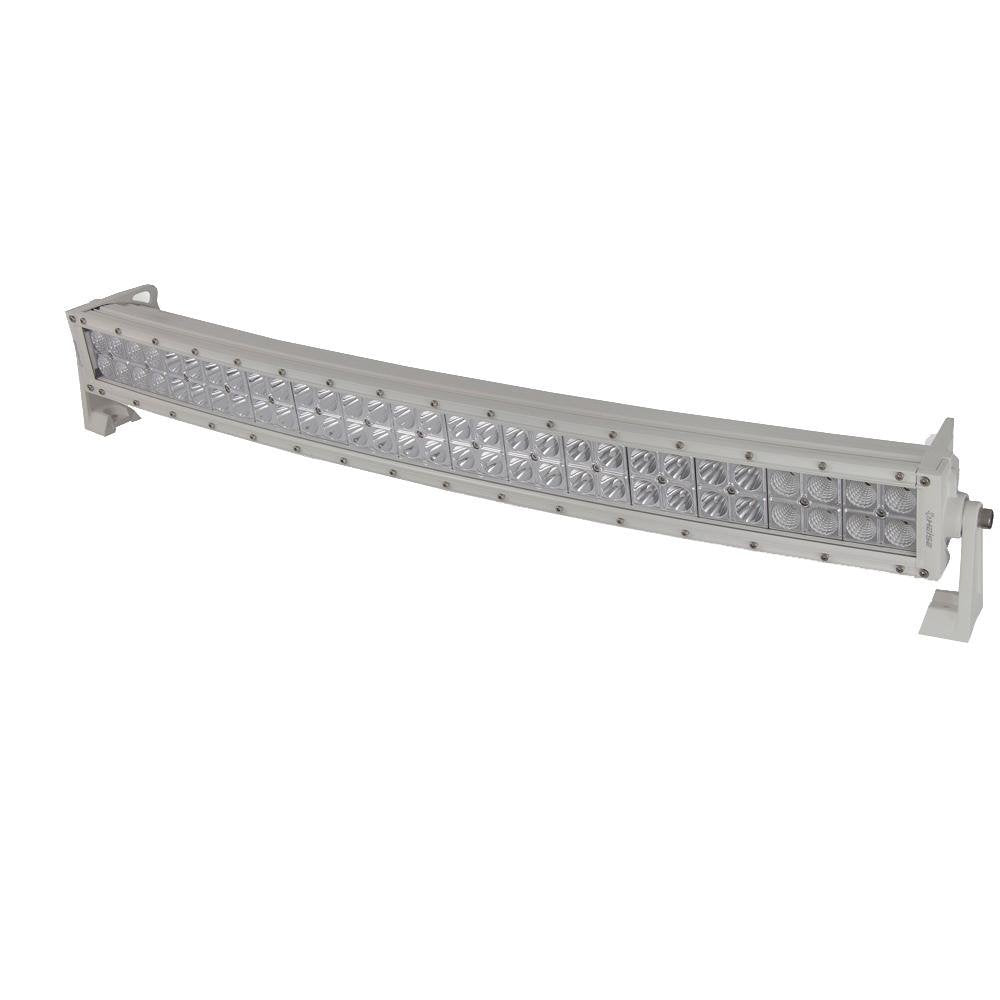

HEISE - Curved Dual Row Marine LED Light Bar - 30" - HE-MDRC30
Loading...
HEISE - Curved Dual Row Marine LED Light Bar - 30" - HE-MDRC30
SKU:
PV019677
$686.99
Unit price /
Unavailable
HEISE - Curved Dual Row Marine LED Light Bar - 30" - HE-MDRC30 is backordered and will ship as soon as it is back in stock.
This product could earn you
points
Learn more about PartsVu rewards
Learn more about PartsVu rewards
Free Shipping Over $99
Orders $99 or more ship free within the contiguous U.S. May not apply to engines or oversized orders.
Learn MoreQuick & Easy Returns
We accept returns on most items for 45 days— with no restocking fees.
Learn MoreReady to Serve
Our top priority is your ultimate satisfaction, and to get you back to boating as soon as possible.
Contact a Parts Pro
Size chart content page
HEISE - Curved Dual Row Marine LED Light Bar - 30" - HE-MDRC30
$686.99
Unit price /
Unavailable
Description
Description
HEISE - Curved Dual Row Marine LED Light Bar - 30" - HE-MDRC30
Specs
- Input Voltage: 10-30V DC
- Wattage: 180 W
- (60-3W CREE LEDs)
- Raw Lumens: 14400
- LUX at 10M: 625
- Color Temperature: 6000K
- Beam Pattern: Combo/Flood 90 degrees/Spot 8 degrees
Construction
- Housing Material: Die-Cast Aluminum Housing
- Housing Color: White Coating with UV Inhibitors
- Membrane: Gore
- Lens Material: PC
- Mounting Bracket: Die-Cast Aluminum
- Hole Dimensions:
- Brackets Turned Inward - 31 inches
- Brackets Turned Outward - 33.5 inches
- Mounting Bolt Drill - 25 inches
- Height of Light Bar Itself: 3 inches
- Depth of Light Bar Itself: 3.5 inches
- Electronics: Integrated-Epoxy Encapsulated
- Hardware: Stainless 316
Operation
- Operating Temperature: - 40 degrees C to +60 degrees C
- Current Consumption: 9.5 Amps at 13.8 Volts
- IP Rating: IP67
- Protections: Reverse Polarity
Specifications:
- Box Dimensions: 5"H x 9"W x 35"L WT: 10.8 lbs
- UPC: 086429348275
