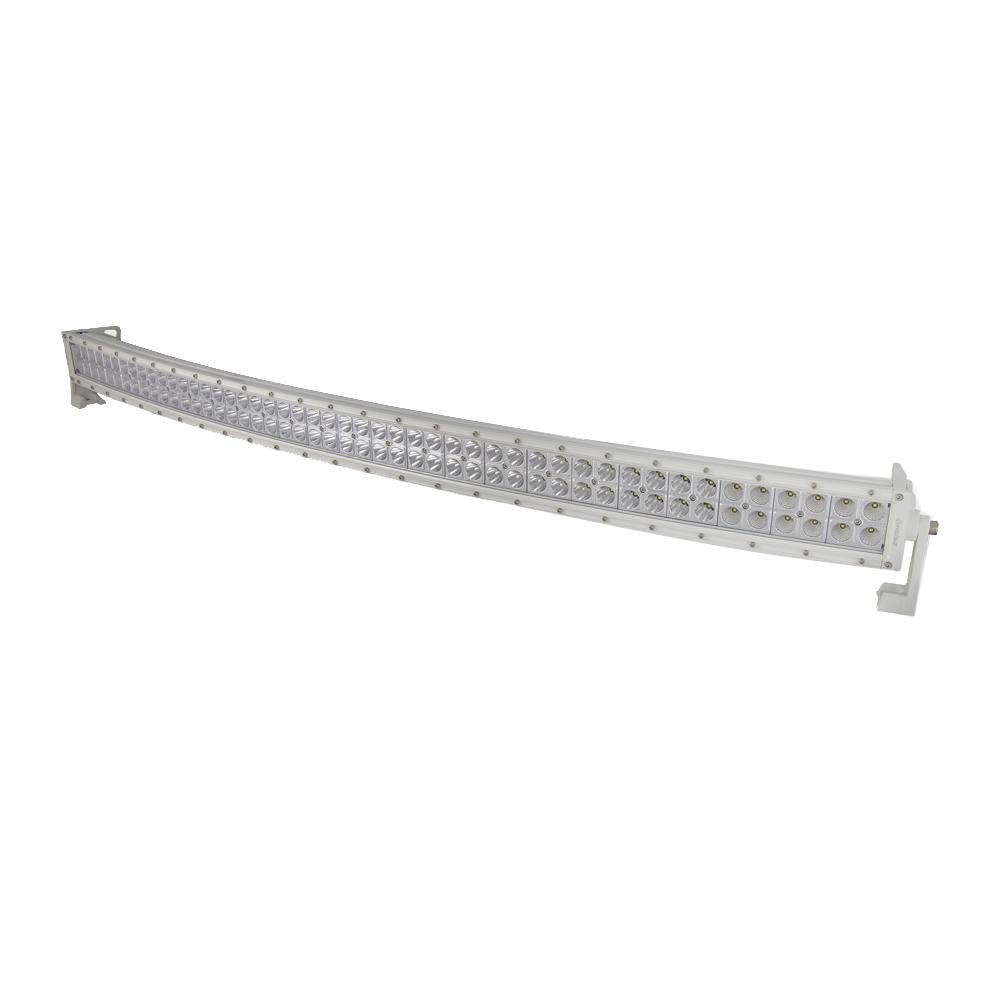

HEISE - Curved Dual Row Marine LED Light Bar - 42" - HE-MDRC42

Specs

• Input Voltage: 10-30V DC
• Wattage: 240 W
• (80-3W CREE LEDs)
• Raw Lumens: 19200
• LUX at 10M: 780
• Color Temperature: 6000K
• Beam Pattern: Combo/Flood 90 degrees/Spot 8 degrees

Construction

• Housing Material: Die-Cast Aluminum Housing
• Housing Color: White Coating with UV Inhibitors
• Membrane: Gore
• Lens Material: PC
• Mounting Bracket: Die-Cast Aluminum
• Hole Dimensions:

• Brackets Turned Inward - 41 inches
• Brackets Turned Outward - 43.5 inches
• Mounting Bolt Drill - 25 inches

• Height of Light Bar Itself: 3 inches
• Depth of Light Bar Itself: 3.5 inches
• Electronics: Integrated-Epoxy Encapsulated
• Hardware: Stainless 316

Operation

• Operating Temperature: - 40 degrees C to +60 degrees C
• Current Consumption: 12 Amps at 13.8 Volts
• IP Rating: IP67
• Protections: Reverse Polarity



Specifications:

• Box Dimensions: 5"H x 8"W x 45"L WT: 13 lbs
• UPC: 086429348282
