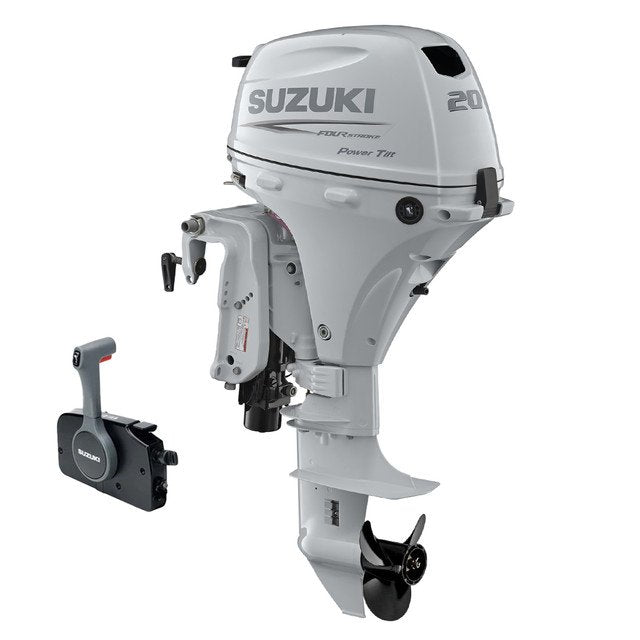

Suzuki Portable Outboard DF20ATSW4 - 20 HP - 15" Shaft - Remote Mechanical Steering - Power Trim - White

SKU: PVSUZ-DF20ATSW4
$5,275.00
This product could earn you points
Learn more about PartsVu rewards
Free Shipping Over $149.00

Description

Suzuki Portable 4-Stroke Outboard DF20ATSW4 - 20 HP - 15" Shaft - Remote Mechanical Steering - Power Trim - White

Light On Weight. Light On Compromise.

The result of a complete redesign that strove to create the lightest parts possible without compromising integrity, our engineers have successfully crafted an outboard that, even when configured with a power tilt system, still weighs less than any other outboard in the four stroke 14.7kW (20PS) class. Beyond being ultra-light, the DF20A EFI is also among the most technologically advanced portable outboard motors on the market, featuring Suzuki's proven Lean Burn Control System and Battery-Less Electronic Fuel Injection.

Product Brochure - View Here

Features:

  • Twenty Horses At Your Command - Our DF20A represents a unique leap forward in the way that power is converted into performance. Through extensive testing, we have engineered this small footprint motor to make the most of every ounce of horsepower. Beyond being ultra-light, the DF20A EFI is also among the most technologically advanced portable outboard motors on the market.
  • Light Weight & Compact - The 20A lightest in class title is the result of a complete redesign of parts and components, striving to create the smallest and lightest parts possible without compromising integrity.
  • Easy to Use - Along with better fuel economy, fuel injection also offers easier and more dependable starts in nearly any operating condition or environment. While our carburetor models are some of the finest outboards available, fuel injection gives these outboards even smoother operation with reduced engine vibration.
  • Easy Start Recoil Starter - These outboards are equipped with starters specially designed with very light recoil loads. Combining the easy to pull starter with fuel injection makes starts exceptionally easy for almost everyone.
  • Superior Fuel Economy - Suzuki's Lean Burn Control System - Suzuki Lean Burn system is an intelligent system that monitors engine performance and operating conditions to predict fuel needs and deliver a leaner fuel mixture to the engine. The system delivers remarkable improvements in fuel economy over the engine's entire operating range. This system is found on 14 Suzuki models from the DF9.9B up to the flagship DF300A, providing boaters with top-level fuel economy at all operating speeds
  • Suzuki's Anti Corrosion System - Suzuki protects the outboard's exterior from harmful corrosion with its own specially formulated anti-corrosion finish. Applying the finish directly to the outboard's aluminum surface, allows maximum bonding of the finish to the surface to increase durability and help protect parts that are constantly exposed to saltwater.
  • Cleaner, Efficient Operation - Suzuki's advanced four-stroke technology delivers cleaner and efficient outboard operation that conforms to the Recreational Craft Directive (RCD) - Directive 2003/44EC of the European Parliament and of the Council, and have received "œThree-Star Ultra Low Emission" ratings from the California Air Resources Board (CARB).
  • Warranty - Suzuki's Newest 5-Year Manufacturer Warranty

Specification:

Model DF20A
Recommended Transom Height (Inches) S: 15"
Starting System Electric
Weight LBs 105 lbs
Engine Type SOHC 4-Valve
Fuel Delivery System Electronic Fuel Injection with Lean Burn
No. Of Cylinders 2
Piston Displacement Inches (CC) 20.0 (327)
Bore X Stroke Inches (MM) 2.38 x 2.24 (60.4 x 57)
Maximum Output HP 20
Operating Range (RPM) 5000 - 6000
Steering Remote Mechanical
Choke N/A - Suzuki EFI
Oil Pan Capacity Quarts(Liter) 1.06 (1.0)
Ignition System Digital CDI
Alternator 12V 12A
Trim Position 5 Tilt Pin Positions and 2 Shallow Water Drive Settings - Option Power Tilt
Gear Ratio 2.08:1
Standard Propeller 3 x 9.25 x 9
Propeller Selection 7 - 11
