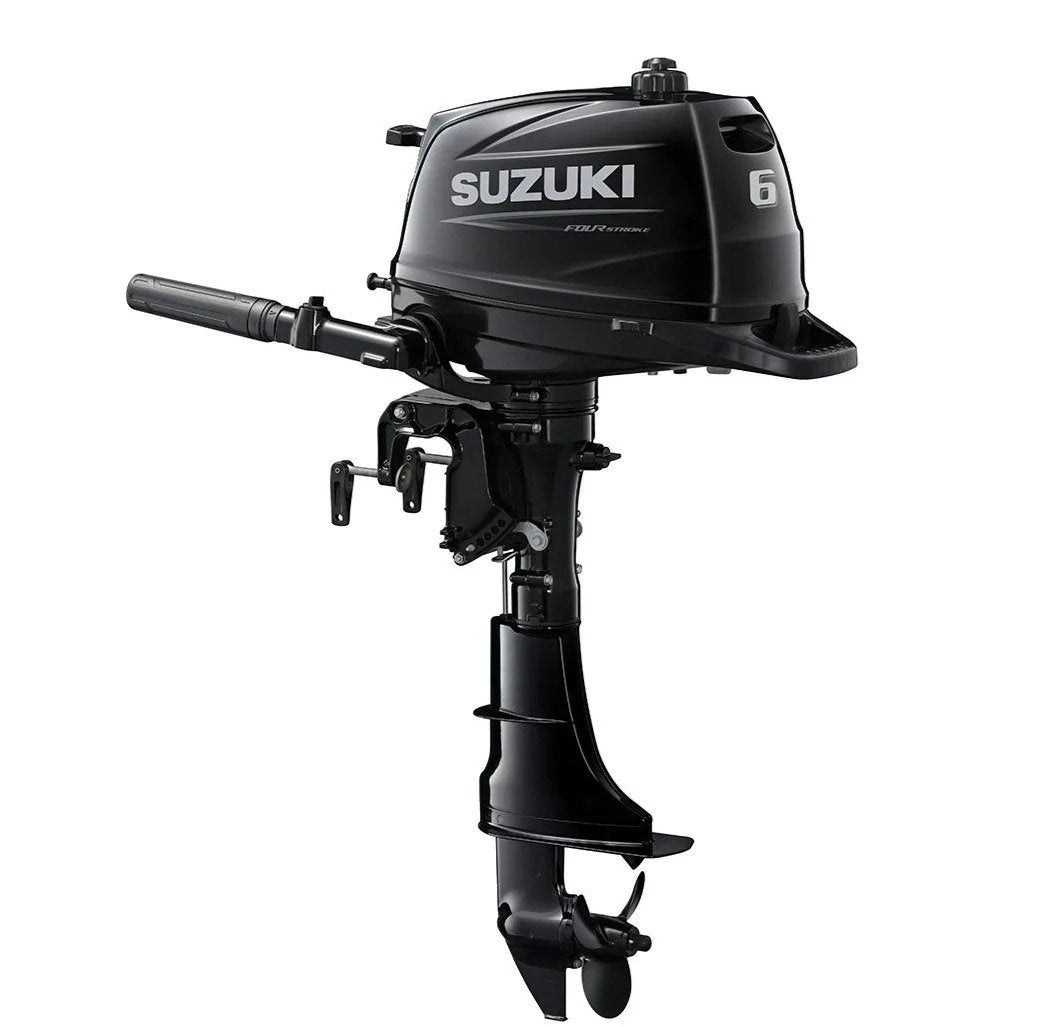

Suzuki Portable Outboard DF6AS4 - 6 HP - 15" Shaft - Tiller Handle

SKU: PVSUZ-DF6AS4
$2,115.00
This product could earn you points
Learn more about PartsVu rewards
Free Shipping Over $149.00

Description

Suzuki Portable 4-Stroke Outboard DF6AS4 - 6 HP - 15" Shaft - Tiller Handle Steering

None Of The Dead Weight, All Of The Torgue

The DF6A revolutionizes portable outboards with unparalleled four-stroke performance and efficiency. Compact and lightweight, the DF6A is easy to transport and delivers surprising low- and mid- range torque for quick acceleration.

The new Nebular Black color of the body and new decals make for a stylish design. Our pursuit of progress was guided by the development concepts of "œlightweight" and "œeasy operation." Overhauling the existing design has achieved a comprehensive weight reduction and improved operability. We increased fuel efficiency through a bold redesign of the lubricating system, startingwith a first-in-its-class** oil filter, and use of an offset crankshaft. Packed with features, such as an integral overhead fuel tank for improved maintenance, a new tilt system and an easy-to-grip carrying handle, which can prove their worth in a variety of operating conditions.

Product Brochure - View Here

Features:

  • Take Adventure With You - The DF6A is ready for whatever comes next, fully portable and fits nearly any vessel. Swap out how you use your DF6A, whether it's a duck boat or a paddle board. If you don't want to be tied down, this is the engine for you.

  • Go Faster - The DF6A offers acceleration far beyond the regular capabilities of most small watercrafts, and can be attached or removed easily. Bring a little power to your weekend plans, and upgrade your ride.
  • Easy To Start After Storage - Because the integral overhead fuel tank and one-way valve allow gravity fuel supply, the engine can be started without opening the engine cover, even after long-term storage.
  • Offset Crankshaft - Positioning the crankshaft slightly off center of the cylinder reduces lateral pressure against the cylinder wall as the piston moves up and down in the cylinder. The result is smoother piston movement, which improves operating efficiency.
  • Quiet Operation - The low noise level is the result of a silencer, designed to optimize the capacity and shape of the air intake. The new design of the rocker arm and the plane bearing of the crankshaft also help reduce the noise level. We also changed the structure of the parts related to the rocker arm and eliminated its excessive play. In addition, we changed the crankshaft bearing from a common ball type to a plane type.
  • Highly Reliable Lubricating System - The forced lubrication system of the DF6A has an additional oil passage to the upper and lower crankshaft and connecting rod big end. The addition of a first-in-its-class** oil filter greatly increases the reliability of the lubricating system. Furthermore, the new position of the oil window allows for visual confirmation of the actual lubricating condition.
  • Three-Way Storage - The new fuel and lubricating systems allow more convenient storage of the outboard on any of three sides (port, starboard or front) without worrying about the storage orientation.
  • New Tilt System - The tilt system of the DF6A offers different up-and-down paths of the shallow drive arm compared with the previous models. When raised, it can be locked at three positions. When lowered, it can just be smoothly moved to its lowest position without locking.
  • Outstanding Handle Operation - An ease of handling that has enjoyed great popularity. Further improvements to the tiller handle have successfully mitigated vibrations contributing to fatigue and stress when transmitted to the hand during operation. The DF6A excel at vibration mitigation, particularly in the mid-range.
  • Improved Portability - The carrying handle integrated into the lower cover has been rounded and made easier to hold. An additional grip at the front of the lower engine cover provides the convenience of carrying the outboard with both hands.
  • Warranty - Suzuki's Newest 5-Year Manufacturer Warranty

Specification:

Model DF6A
Recommended Transom Height (Inches) S: 15 L: 20
Starting System Manual
Weight LBs S: 55 L: 57
Engine Type OHV 2-Valve
Fuel Delivery System Carburetor
No. Of Cylinders 1
Piston Displacement Inches (CC) 8.4 (138)
Bore X Stroke Inches (MM) 2.44 x 1.81 (62 x 46)
Maximum Output HP 6
Operating Range (RPM) 4750 - 5750
Steering Tiller
Choke Manual
Oil Pan Capacity Quarts(Liter) .74 (.7)
Ignition System Digital CDI
Alternator 12V 6A (Optional)
Trim Position 5 Tilt Pin Positions
Gear Ratio 1.92:1
Standard Propeller 3 x 7.5 x 6.5
Propeller Selection 6 - 7
