Furuno Smart Sensor DT-800MSF - Thru-Hull Transducer - DT-800MSF
SKU: PV007315
$395.00
Free Shipping!
This product could earn you points
Learn more about PartsVu rewards

Free Shipping Over $99


Orders $99 or more ship free within the contiguous U.S. May not apply to engines or oversized orders.

Learn More

Fast Shipping


In-stock orders ship the next day, from the warehouse closest to you.

Learn More

Quick & Easy Returns


We accept returns on most items for 45 days— with no restocking fees.

Learn More

Ready to Serve


Our top priority is your ultimate satisfaction, and to get you back to boating as soon as possible.

Contact a Parts Pro

Description

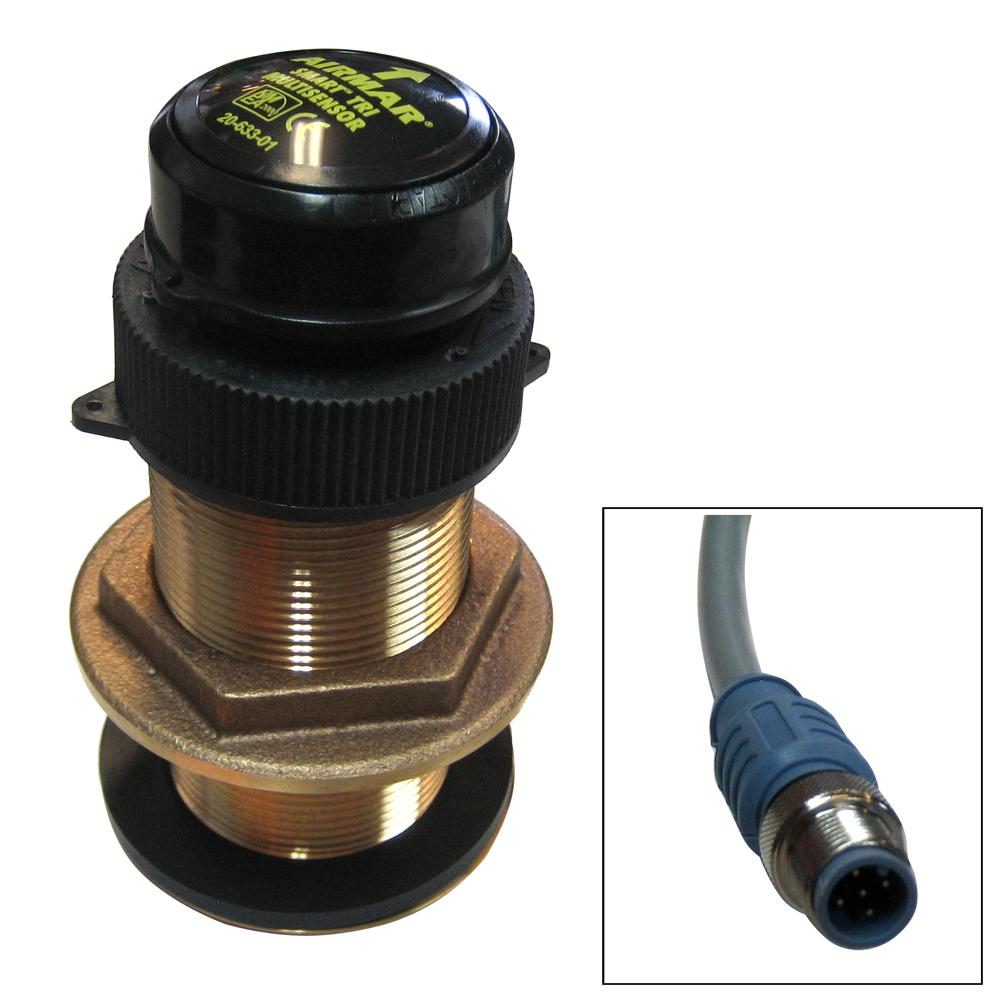

Furuno DT-800MSF - Airmar B617V Housing Style Transducer

Designed with Airmar's exclusive Broadband Ceramic Technology, the DT-800MSF's 235 kHz element improves resolution without sacrificing sensitivity. The higher power rating 100W RMS provides spot-on depth readings in as little as 0.45M (1.4') of water and can reach depths up to 180M (600')

Standard Features:
  • Depth and temperature in one compact bronze housing
  • Fast-response temperature sensor provides ±0.2C (±0.1F) accuracy


Weight: 1.5kg (3.4lb)
Acoustic Window: Urethane
Data Update Rate: 1 per second
Minimum Sounding Depth: 0.5M (1.6')
Maximum Sounding Depth: 180M (590)
Pressure Rating: 3M (10')
Pulse Rate: 20,000 p/nm* (5.6 Hz per knot)
Smart Sensor Supply Voltage at 100% Sound Power Output: 10 VDC to 25 VDC
Supply Current: 40 mA
Standard Cable Length: 6M
NMEA 2000 Load Equivalency Number (LEN): 4

*p/nm = pulses per nautical mile
